Overview


TESS - Single-Roller Tension System

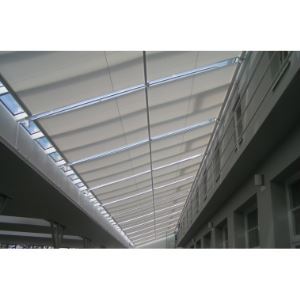

The TESS tension shades are uniquely engineered to house the fabric and cable take-up spools on the same tube. This configuration only requires pulleys be mounted on the side of the opening opposite the motor tube. This makes the TESS tension system ideal for not only skylight shades, but also bottom-ups, laterally-traversing, and specialty shapes like trapezoids and triangles.

Aluminum and Wood Louver System

This skylight sun control system is a non retractable louver system that can be mounted on any plane of any angle, curved conditions and unusual shape window configurations. These precision systems are designed to perform with maximum efficiency. The tilt angle is from 0-90 degrees angling from fully open to fully closed.

  • Operation

    • Manual - Crank operator with detachable crank hook and handle
    • Motorized - Somfy tubular motor

  • Motor Controls - LV switches, radio & IR remote, sun sensor, home automation and audio visual interface. Shades can operate individually and / or in groups.

  • Rack Arm - consists of an aluminum bar fitted with pivots to which the louvers are attached.

  • Various slat sizes are available with optional materials and finishes.


See More


Specifications

System List and Description
SystemInt/ExtGuide OptionsApplicationShapeMax WidthMax HeightMax Sq Ft

Tess 100

Interior

Unguided

Horiz, Vert, Slope

Rectangular

118”

256”

172 sq ft

Tess 101

Interior

Unguided

Horiz, Vert, Slope

Triangular

157”

197”

97 sq ft

Tess 421

Exterior

Unguided

Horiz, Vert, Slope

Triangular

157”

197”

97 sq ft

Tess 102

Interior

Unguided

Horiz, Vert, Slope

Trapezoidal

157”

256”

172 sq ft

Tess 422

Exterior

Unguided

Horiz, Vert, Slope

Rect/Trap

157”

256”

172 sq ft

Tess 120

Interior

Rail

Horiz, Vert, Slope

Rectangular

197”

256”

172 sq ft

Tess 420

Exterior

Rail

Horiz, Vert, Slope

Rectangular

197”

256”

172 sq ft

Tess 140

Interior

Cable

Horiz, Vert, Slope

Rectangular

157”

256”

194 sq ft

Tess 440

Exterior

Cable

Horiz, Vert, Slope

Rectangular

157”

256”

172 sq ft

Tess 200

Interior

Unguided

Horiz, Vert, Slope

Rect/Trap

157”

708”

646 sq ft

Tess 308

Interior

Cable

Vertical

Rectangular

165”

236”

269 sq ft

Tess 312

Interior

Cable

Vertical

Rectangular

236”

472”

775 sq ft

Tess 512

Int/Ext

Cable

Horizontal

Rectangular

236”

708”

1076 sq ft

Tess 660

Int/Ext

Rail Zip

Horiz, Vert, Slope

Rectangular

118”

118”

97 sq ft
