Overview

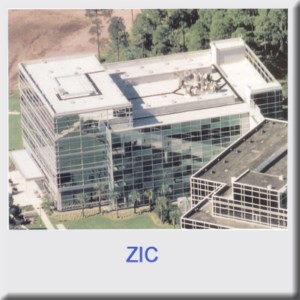

ZIC Lightweight Insulating Concrete System

ZIC Lightweight Insulating Concrete System

The standard ZIC mix is a 1:6 ratio of Portland cement volume to ZIC Concrete Aggregate volume. ZIC is used in new construction applications over slotted galvanized metal decking. The standard 1:6 mix requires a minimum 2-inch thickness of ZIC over the top of the Insulperm Insulation Board.

Lightweight Insulating Concrete Systems

Siplast Lightweight Insulating Concrete Systems combine the unique properties of lightweight insulating concrete and Insulperm premium expanded polystyrene foam insulation board. Siplast Lightweight Insulating Concrete is available in four mix designs: ZIC, NVS, Insulcel, and Zonocel. The four designs represent a range of compressive and tensile strengths, allowing a choice of system based on substrate and specific project circumstances. Each design encapsulates the insulation board in insulating concrete. This process provides fire protection, prevents air infiltration, and bonds the total insulation system to the substrate. Unlike rigid board, Siplast Lightweight Insulating Concrete is reroofable, and therefore a truly sustainable insulation solution.
