Overview

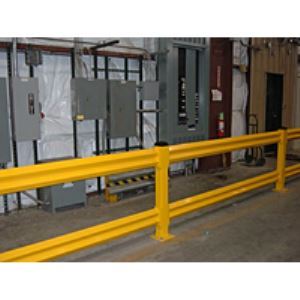

Stand Guard Lite Rails

"Stand Guard LITE" ribbed barrier guardrails. All welded LIFT-OUT design standard, which reduces installation cost by half.

  • Rails are constructed of 14 gauge high-tensile steel.
  • Impact rating of 5,000 lbs at 5 mph.
  • Installs in half the time. No hardware needed!!
  • Sleeves are welded to posts, no costly brackets as an afterthought.
  • Rail fits 4" posts with 8" x 8" base plate.
  • Available in heights of 18" & 42".
  • Rails are 2' through 10' in 1' increments.
  • Rails measure center to center of post.
  • 5/8" x 4.75" anchors available upon request.


See More


Specifications

Item #Item NameBase PlateStock Item
4-LITE-END-184" x 18" LITE End Post8 x 8 x 1/2 inchesYes
4-LITE-INLINE-184" x 18" LITE Inline Post8 x 8 x 1/2 inchesYes
4-LITE-CORNER-184" x 18" LITE Corner Post8 x 8 x 1/2 inchesYes
4-LITE-END-42-DBL4" x 42" LITE Dbl End Post8 x 8 x 1/2 inchesYes
4-LITE-INLINE-42-DBL4" x 42" LITE Dbl Inline Post8 x 8 x 1/2 inchesYes
4-LITE-CORNER-42-DBL4" x 42" LITE Dbl Corner Post8 x 8 x 1/2 inchesYes
2-LITE-RAIL2' LITE GuardrailN/AYes
3-LITE-RAIL3' LITE GuardrailN/AYes
4-LITE-RAIL4' LITE GuardrailN/AYes
5-LITE-RAIL5' LITE GuardrailN/AYes
6-LITE-RAIL6' LITE GuardrailN/AYes
7-LITE-RAIL7' LITE GuardrailN/AYes
8-LITE-RAIL8' LITE GuardrailN/AYes
9-LITE-RAIL9' LITE GuardrailN/AYes
10-LITE-RAIL10' LITE GuardrailN/AYes
