RapidCoil™ RC200 High Speed Fabric Doors

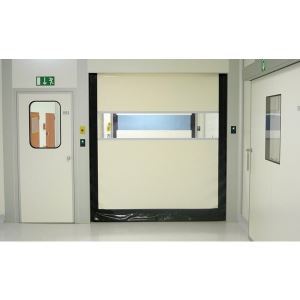

Raynor’s RapidCoil RC200 high speed fabric door is designed for small- to medium-interior technology applications up to 12′ wide and 12′ high. The RC200 door is designed for interior environments, providing a high-tech, safe, and aesthetically pleasing door for even the most demanding customers. The RC200 combines our proven control and drive system with our specially modified bead sealing technology for ultra-smooth, ultra-quiet operation. Incorporating Raynor’s control panel, with a variable frequency drive, provides maximum performance, flexibility, and self-diagnostic capabilities.

RapidCoil RC200 Features and Options

Every Raynor RapidCoil RC200 commercial high speed fabric door is built for superior performance and includes the features listed below.

Ultra Tight Bead Seal

Specially modified bead sealing technology prevents air migration better than virtually any other door on the market. Sealing technology also completely seals the opening, providing a perfect barrier against drafts, humidity, noise, dust, and insects. This door is ideal for use in dry and clean room environments.

Self Repairing

Specialized two-way breakaway design, with inner side guides, flexes to allow separation when impacted. The re-insertion point, located at the header, allows you to re-insert the curtain into the guides by the simple push of the button. No manual intervention or tools are required.

Cycle Life

Cycle Life: RapidCoil doors are designed to perform thousands of cycles per day without wearing parts such as stiffeners, cables, and straps or motor brakes, repair cost, and operational costs are reduced.

Features and Benefits

Standard Operating Speed:
Opening speed up to 48″/sec, closing speed 24″/sec.

Door Operation:
Gravity driven with flexible soft bottom bag.

Side Guides:
Made of structural channels of 2-1/16″ x 1-1/2″x1/8″ in galvanized steel
(optional powder coat or stainless steel).

Inner Side Guide:
Polyethylene (PE-UHMW 1000); outer section 9/16″ x 9/16″.

Side Guide Covers:
Galvanized steel is standard or optional powder coat or stainless steel covers are available.

Drum:
Steel, diameter 4″ x 0.078″, shafts in steel.

Door Curtain:
Reinforced PVC (27 oz/sq.yd) and continuous sealing, bead, with flexible weighted soft bottom bag design. Available in different colors.

Vision:
15″ vision banner standard. 24″ x 24″ individual windows and bug screens are optional


See More


Specifications

Colors
The Raynor RapidCoil RC200 high speed fabric door is 27 oz. reinforced PVC vinyl with your choice of 9 colors.
BlueRAL 5002
RedRAL 3001
OrangeRAL 2004
YellowRAL 1003
WhiteRAL 9003
GrayRAL 7038
GreenRAL 6005
BlackRAL 9005
BrownRAL 8017

>>Colors displayed on monitors, mobile devices, and printed materials will vary from the actual vinyl color. Contact your local Raynor Authorized Dealer for color samples.

Product Details
Door Door
MountInterior
ConfigurationSingle Door
Minimum Size3′ x 7′
Maximum Size12′ x 12′
OperationBy gravitational force with a flexible ballast
Opening SpeedUp to speeds of 48 in/sec
Closing Speed24 in/sec
DriveLeft or Right Hand
Wind ResistanceUp to 18 MPH operational
Electrical Electrical
Motor1HP or 2HP motor dependent on size of door. Motor is VFD driven, Nema 4, 2 poles without brake.
Detectors supplied with standard doorInfrared photocell system, curtain obstruction detector and wireless obstruction detector
Control BoxComposite corrosion resistant Nema 4X rated control box as standard
Power SupplySingle-phase 110-208-230-Three-phase 460-575 Volt
Frequency50-60 Hz
Curtain Curtain
MaterialReinforced PVC vinyl
Total Weight27 oz./sq. yd.
Tensile Strength637 x 683 lbs
Tear Resistance120 x 138 bls
Available ColorsBlue RAL 5002
Red RAL 3001
Orange RAL 2004
Yellow RAL 1003
White RAL 9003
Gray RAL 7038
Green RAL 6005
Black RAL 9005
Brown RAL 8017
VisionOne Vision banner 15″ x door width standard, Individual windows 24″ x 24″ and Bug Screens optional
Guides Guides
Side GuidesStructural Channels of 2-1/8″ x 1-3/16″ x 1/8″ galvanized steel
Inner Side GuidePolyethylene (PE-HD) inner section 9/16″ x 9/16″ mounted in 1/32 x 1-1/8 C Channel
Side Guide CoversStandard is galvanized 2-1/8″ x 2-1/2″ in size
Color/FinishGalvanized standard, Powder Coat or 304 Stainless Steel optional
Drum Drum
ConstructionSteel, diameter 4″ x 0.078″, shafts in steel
Enclosures Enclosures
HoodMeasurement dependent on width of door x headroom of 15-1/2″
Motor Cover9-1/8″ x 20″ x 10-1/4″ standard in galvanized
Color/FinishGalvanized standard, Powder Coat or 304 Stainless Steel optional
Warranty Warranty
5-year unlimited cycle warranty on the drive motor and 5-years on fabric workmanship. 1-year on balance of components.
Specifications
Door Size:
Raynor RC200 has a maximum door size of 12’x12′. Minimum size of 3’x7′.
Motor:
Standard 1HP at 115V, 208V, 230V, 460V or 575V. Motor is variable frequency driven, NEMA 4, 2 poles without brake.
Gearbox:
Size 50 for a motor of 1HP and gear reduction ratio 1/28.
Detectors:

An infrared photocell installed inside the side guide and detects the presence of a pedestrian or a vehicle. Upon activation, it opens the door immediately and keeps it open as long as the presence is detected. Height of photocell: 6″ from the floor.

A bottom edge detector reverses the door when it hits an obstacle during the closing cycle. This detector is positioned at the bottom part of the curtain.

The bottom edge is referred to as a WDD or Wireless Detector. A wireless detection system consisting of a transmitter in the bottom bag of the door and a receiver in the control box. The system operates according to the “open loop” principle: when the sensor encounters an obstacle, the transmitter leaves the standby mode and send a signal to the receiver that immediately opens the door.

Power Supply:
Standard single phase 115V, 208V, 230V; three phase 208V, 230V, 460V, 575V. Frequency: 60 Hz. Circuit breakers to be provided by the customer: 10-20A for 1HP.
Optional Egress Systems:
Choose our, fully code compliant, Emergency Egress System or battery backup for added security.
Absolute Encoder:
The absolute encoder replaces the old fashioned, less accurate, mechanical limit switches, for maximum door efficiency and productivity.
Logix Controller:
The Logix Controller is self-diagnostic, user-friendly, and incorporates a multi-character LCD screen for easy set-up and adjustment.
