Overview

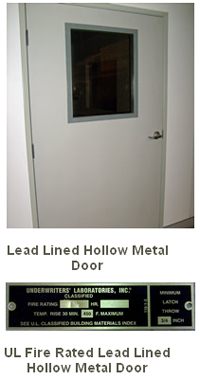

Lead Lined Hollow Metal Doors

Lead Lined Hollow Metal Doors

  • 15 standard lead thicknesses
  • Available up to 90 minute fire ratings
  • Available with lead lined vision frames with x-ray safety glass
  • Primer finish
  • Optional laminate faces
  • Lead lined hollow metal welded door frames are available oonly with door purchase

Ray-Bar Lead Lined Hollow Metal Doors are made from hot dipped galvanized steel in 18, 16 and 14 gauge steel conforming to ASTM A527, coating Classification ZF001. They are available non-rated, or with fire-ratings up to 90-minute.  They are UL listed for fire resistance and meet UL IOC and UBC 7-2-1997 positive pressure test requirements part I and II.

Ray-Bar can also provide lead lined doors as stainless steel (304 with #4 finish), and bullet resistant (UL752) in Level 1 (medium power small arms), Level 2 (high power small arms), Level 3 (super power small arms), and certified Level 4 (high power rifle).

Optional: Hollow Metal Lead Lined Welded Frames (Only offered if purchased with Ray-Bar Lead Lined Hollow Metal Doors)
Hollow Metal Welded Frames are 16 gauge primered steel with anchors for metal studs,wood studs or concrete "cast in place" or retro-fit bolt-anchor (Hilti) into existing concrete or masonry walls.
Equal rabbet or single step rabbet frame profiles can be formed to fit wall thicknesses from 5" up to 24"
Heavier 14 gauge or 12 gauge hollow metal frames available for higher radiation lead shielding applications.
