Lumenpod™ 28 Hand Rail Point Source Light

FEATURES & SPECIFICATIONS

  • Solid cast 316 stainless steel
  • Superior installation in a variety of rail diameters
  • 122 lumens per watt LED (500 mA)
  • 55° beam spread @ nadir for asymmetric
    140° optical distribution for symmetric
  • 2 IES file supported optic distributions
  • IK9 impact rating and secure installation
  • 24 VDC operation
  • ETL wet location listed
  • IP68 ingress protection
  • Standard in 4 CCT whites and solid colors
  • Wildlife Amber™
  • Patent Pending, USA Design, Manufacturing and Engineering

The evolution of the hand rail point source from Wagner Architectural Systems has performance that far exceeds the first or second generation products on the market. This USA engineered and manufactured luminaire is designed for pathway illumination with mounting options for hand rail, guardrail, decks and shelter or entry structures. Both the asymmetric and symmetric versions have outstanding performance developed specifically for the application. The superior harsh environment protection and vandal resistance are combined with a simple installation. The Lumenpod 28 provides a flush profile, architectural solution for new or retrofit applications and egress compliance opportunities.


See More


Specifications

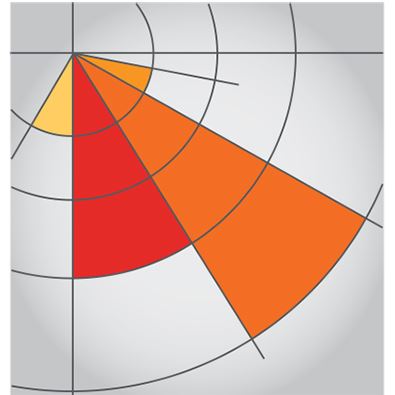

ASYMMETRIC
PHOTOMETRICS

Asymmetric performance is design specific and provides superb illumination results in any application.

CONSTRUCTION

The Lumenpod 28’s machined aluminum body dissipates heat while the cast stainless face integrates seamlessly with the rail. A precisely engineered retention spring positions it perfectly flush with standard diameter handrail. Removal is achieved only with our unique tool, solidifying a tamper resistant installation. Patent Pending.

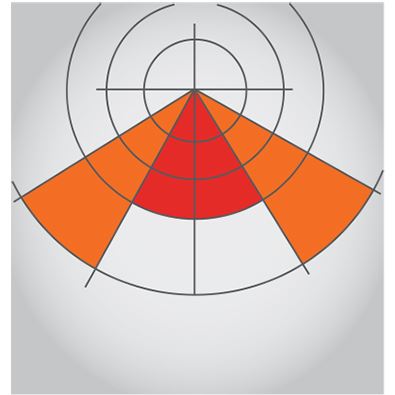

SYMMETRIC
PHOTOMETRICS

Symmetric performance is design specific and provides superb illumination results in any application.

CONSTRUCTION

The Lumenpod 28’s machined aluminum body dissipates heat while the cast stainless face integrates seamlessly with the rail. A precisely engineered retention spring positions it perfectly flush with standard diameter handrail. Removal is achieved only with our unique tool, solidifying a tamper resistant installation.
Patent Pending.
