Slab and Foundation Wall Insulation


Slab and Foundation Wall Insulation

Concrete Slabs

Over concrete slab floors, FOAMULAR® rigid foam boards offer long-lasting thermal protection. It can be mounted directly over the concrete slab, and abut the FOAMULAR® wall insulation where it meets the floor.

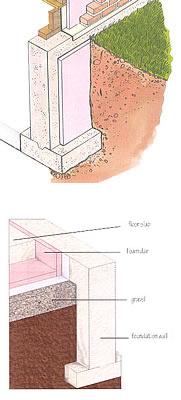

Under Floor Slabs

For Under Floor Slabs, FOAMULAR® 150 or 250 can be used for residential and light commercial applications where floors are subject to normal loads; use FOAMULAR® 400, 600, or 1000 for industrial applications where floor areas will be exposed to heavy loads. Use gravel fill to establish a stable, even base. The gravel must be thoroughly tamped before installing insulation. Be sure to butt the insulation boards tightly together and against foundation walls or adjacent vertical insulation.


Slab and Foundation Wall Insulation

Foundation Perimeter

In Foundation Perimeters, FOAMULAR® rigid foam boards offer thermal protection inside and out. Outside the foundation wall, FOAMULAR® prevents heat loss on the external side of the wall below grade. Inside, FOAMULAR® placed above a protective membrane and a gravel bed, and rising along the interior of the wall, offers additional thermal protection.

Foundations Walls

In Foundation Walls, FOAMULAR® rigid foam boards offer thermal protection inside and out. Outside the foundation wall, FOAMULAR® prevents heat loss on the external side of the wall below grade. Inside, FOAMULAR® mounted along the interior of the wall offers additional thermal protection.


Slab and Foundation Wall Insulation

FOAMULAR® 150 Rigid Foam Insulation

ASTM C578 Type X, 15 psi, 1.3 pcf density

All-purpose foam panel insulation for masonry and other applications. Owens Corning FOAMULAR® 150 extruded polystyrene insulation is ideal for wall furring, perimeter/foundation, cavity wall, crawlspace, pre-cast concrete, under slab, sheathing and other applications (Not approved for roofing). Owens Corning’s patented Hydrovac® process technology makes the unique closed-cell structure of FOAMULAR® extruded polystyrene insulation highly resistant to moisture, retaining its long term R-value year after year – even following prolonged exposure to water leakage, humidity, condensation, groundwater and freeze/thaw cycling.

High-performance FOAMULAR® 150 extruded polystyrene insulation works to:

  • Retard the transmission of water vapor and moisture in masonry walls, helping prevent structural damage.
  • Provide insulation in a metal or wood furring system used for masonry or concrete walls.
  • Perform below grade in perimeter and foundation applications to complement the insulating sheathing envelope around the building framing.

Resistant to common soils and decay, Owens Corning FOAMULAR® extruded polystyrene insulation retains its insulating performance characteristics even after prolonged exposure to moisture.

Owens Corning’s FOAMULAR® extruded polystyrene insulation is an ENERGY STAR® qualified product.

Green Approved by the National Association of Home Builders.


Slab and Foundation Wall Insulation

FOAMULAR® 250 Rigid Foam Insulation

ASTM C578 Type IV, 25 psi, 1.55 pcf density

Owens Corning FOAMULAR® 250 extruded polystyrene insulation is ideal for wall furring, perimeter/ foundation, cavity wall, crawlspace, pre-cast concrete, under slab, roofing systems, sheathing and other applications (Not approved for roofing). Owens Corning’s patented Hydrovac® process technology make the unique closed-cell structure of FOAMULAR® extruded polystyrene insulation highly resistant to moisture, retaining its long term R-value year after year – even following prolonged exposure to water leakage, condensation, ground-water and freeze/thaw cycling.

Excellent insulation performance for a wide variety of building requirements, high-performance FOAMULAR® 250 extruded polystyrene insulation works to:

  • When joints are taped, helps provide a weather resistant barrier to enhance the longevity of the building.
  • Provides insulation in a metal or wood furring system used for masonry or concrete walls.
  • Performs below grade in perimeter and foundation applications, or directly beneath the concrete slab to complement the insulating sheathing envelope around the building framing.

FOAMULAR® extruded polystyrene insulation is ideal for below grade applications. Extruded polystyrene (XPS) is resistant to degradation from material common to most soils and will retain its insulating performance characteristics even after prolonged exposure to moisture.

Owens Corning’s FOAMULAR® extruded polystyrene insulation is an ENERGY STAR® qualified product.

Green Approved by the National Association of Home Builders.


Slab and Foundation Wall Insulation

FOAMULAR® Fanfold DWB

12 psi

Fanfold DWB Damproofing Waterproofing Board is an extruded polystyrene foam layer sandwiched between two tough, non-perforated, impact resistant plastic facers.

Fanfold DWB is used to protect and cushion the basement wall membrane during backfilling. The product can be used in both residential and commercial below grade applications.

Owens Corning’s FOAMULAR® extruded polystyrene insulation is an ENERGY STAR® qualified product.


Slab and Foundation Wall Insulation

FOAMULAR® INSUL-DRAIN® Extruded Polystyrene Insulation Board

ASTM C578 Type IV, 25 psi, 1.55 pcf density

INSUL-DRAIN® is a FOAMULAR® extruded polystyrene product that incorporates the features of insulation, drainage and protection board in a single product. It’s easy to install, without the need for special tools or equipment, and the product’s compressive strength and long-term moisture resistance properties mean years of reliable performance on below grade foundation walls even under extremely harsh conditions. Some of the main characteristics of FOAMULAR® INSUL-DRAIN® extruded polystyrene insulation are:

  • Precision-cut channels drain water from vertical foundation walls while completing total insulation envelope.
  • Durable filtration fabric prevents soil from clogging channels.
  • 48" x 84" and 48" x 96" sizes cover more square footage faster and minimizes joints between boards.
  • Acts as protection course for waterproofing membrane.
  • Tongue & groove edges provide proper board alignment and helps seal joints.
  • Top-edge horizontal channel permits unobstructed water flow between vertical courses of boards.
  • High R-value, exceptional moisture resistance and high compressive strength of FOAMULAR® extruded polystyrene insulation.
  • UL Classified foam core meets ASTM C578 Type IV specifications.

Owens Corning’s FOAMULAR® extruded polystyrene insulation is an ENERGY STAR® qualified product.


Slab and Foundation Wall Insulation

FOAMULAR® 400 High Compressive Strength Rigid Foam Insulation

ASTM C578 Type VI, 40 psi, 1.8 pcf density

Owens Corning™ FOAMULAR® 400, 600 and 1000 are high strength extruded polystyrene (XPS) insulation products designed for use in engineered applications requiring additional load-bearing capability such as under slab, concrete floors, foundations, roadways and rail beds, plaza and parking decks and cold storage installations.

The unique closed-cell structure of FOAMULAR XPS helps to make it highly resistant to moisture, retaining its excellent R-value year after year—even following prolonged exposure to moisture and freeze/thaw cycling.

Owens Corning’s FOAMULAR® extruded polystyrene insulation is an ENERGY STAR® qualified product.

Green Approved by the National Association of Home Builders.


Slab and Foundation Wall Insulation

FOAMULAR® 600 High Compressive Strength Rigid Foam Insulation

ASTM C578 Type VII, 60 psi, 2.2 pcf density

Owens Corning™ FOAMULAR® 400, 600 and 1000 are high strength extruded polystyrene (XPS) insulation products designed for use in engineered applications requiring additional load-bearing capability such as under slab, concrete floors, foundations, roadways and rail beds, plaza and parking decks and cold storage installations.

The unique closed-cell structure of FOAMULAR XPS helps to make it highly resistant to moisture, retaining its excellent R-value year after year—even following prolonged exposure to moisture and freeze/thaw cycling.

Owens Corning’s FOAMULAR® extruded polystyrene insulation is an ENERGY STAR® qualified product.

Green Approved by the National Association of Home Builders.


Slab and Foundation Wall Insulation

FOAMULAR® 1000 High Compressive Strength Rigid Foam Insulation

ASTM C578 Type V, 100 psi, 3 pcf density

Owens Corning™ FOAMULAR® 400, 600 and 1000 are high strength extruded polystyrene (XPS) insulation products designed for use in engineered applications requiring additional load-bearing capability such as under slab, concrete floors, foundations, roadways and rail beds, plaza and parking decks and cold storage installations.

The unique closed-cell structure of FOAMULAR XPS helps to make it highly resistant to moisture, retaining its excellent R-value year after year—even following prolonged exposure to moisture and freeze/thaw cycling.

Owens Corning’s FOAMULAR® extruded polystyrene insulation is an ENERGY STAR® qualified product.

Green Approved by the National Association of Home Builders.
