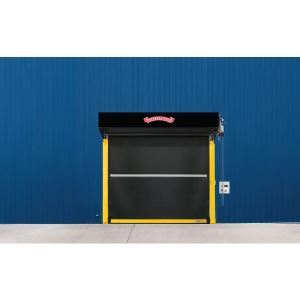

RapidFlex® 995 High Speed Exterior Rubber Door

RapidFlex^® Model 995 is a heavy-duty exterior high speed rubber door that features a multi-reinforced NBR rubber curtain and high strength guide construction to withstand harsh exterior conditions. It features an independently tested wind load of up to 27.0 psf*. The RapidFlex^® Model 995 includes industry-leading standard safety features such as reversing edge, two sets of infrared obstruction detection sensors and door stop device. Perfect for parking garages, food/beverage, mining, auto/transit and manufacturing facilities.

Overview

Product Specifications

Standard Max Width

30'

Standard Max Height

30'

Speed

Up to 50" per second

Break-away Self-reset

Designed to break away from the side guides to minimize damage and simply reset and self-repair after the event

Wind Strut

Not available

Curtain Material

5 layers of NBR rubber; 4 layers of polyester weave

Operation

Direct drive motor and gearbox system with a door stop device

Control Panel

• Variable frequency drive
• NEMA 4X cULus listed
• Onboard self diagnostic and service reminder
• Built-in padlockable field disconnect

Obstruction Detection

2 sets of infrared sensor mounted proximity to the door path

Reversing Safety Edge

Wireless monitored reversing edge

Electrical Availability

208V AC 3PH^†, 230V AC 3PH; 460V AC 3PH; 575V AC 3PH^†
(^†requires stand-alone mounted transformer)

Wind Load*

Up to 27.0 psf

_{* Pressure/wind resistance value is the ultimate pressure tested at door width of 19'.}

• 5-year Limited
