Control I/O

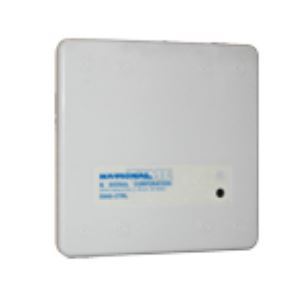

The NATIONAL TIME Addressable Control I/O module provides a style B/D initiating input to monitor dry contact initiating devices and a voltage sensitive input monitor point to monitor the absences of DC voltage. The module's output provides a form "C" dry contact rated for 24VDC @ 1 Amp. The DigiComm™ communication provides style 4, 6 or 7 wiring. The powerful DigiComm™ communication protocol enables reliable and accurate information to be exchanged between modules and the Fire Alarm Control Panel. The modules feature programmable status LED indicators. The Control I/O mounts in a 4" square or 2 gang electrical box.

Features

• Addressable 2 Wire Initiating Circuit
• Supervised Style B/D Input
• 1 Form C Dry Contact
• Additional Voltage Monitoring Input
• Style 4, 6, or 7 Communication Wiring
• LED Indicator
• U.L. Listed
