Folding Glass Walls - Aluminum Frame - NW Acoustical 645
- Up to Unit STC 45 Possible
- Optimal performance with the range of unit STC from STC 32 up to STC 45
- Configuration options allow for an up to 3' 3" (1000 mm) swing door at the side jamb at one end or both
Unprecedented Sound Control Sound Control Up To Unit STC 45 NW Acoustical 645 is the first floor supported folding glass wall able to achieve unprecedented sound control up to an impressive unit STC 45.
This system combines sleek acoustically separated aluminum framing and specialized gasketing with sound-enhanced glass to achieve optimal performance with the range of unit STC from STC 32 up to STC 45-all while allowing maximal transparency and natural daylight to flood interior spaces.

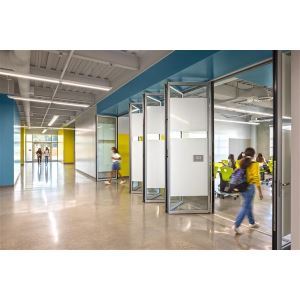

Minimal Sightline Equals Increased Transparency With an ultra-thin frame profile, NW Acoustical 645 is specifically engineered for educational applications and for interior spaces where acoustical privacy, ease of use, and transparency are of utmost concern.
NW Acoustical 645 is an award-winning product.
ADA Compliant Flush Sill for School Design The Flush sill option is ADA compliant with an aluminum floor track insert that provides high heel protection. This sill can be installed directly over finished flooring creating clean transitions between interior spaces.
Fourth Generation Features FourFold and SixFold Panel Sets for Larger Openings and Flexible Stacking This folding system allows for larger opening sizes and flexible space management with the integration of FourFold or SixFold panel sets. These panels are able to move and stack to the right, left, or center within the same track allowing the panels to be stacked in the most convenient location. The system may be either inswing or outswing, and open corner and T-intersection configurations are possible.
Floor Supported Folding Glass Wall Technology NW Acoustical 645 is the only floor supported folding opening glass wall to achieve unit STC 45. With floor supported systems, the main weight of the unit is carried by the lower stainless steel wheel assembly gliding on top of the stainless steel floor track. The top track is used merely as a guide. Floor supported systems are ideal for applications where load-bearing capability of the header is a concern.
Swing Doors for Traffic Management To accommodate traffic flow, NW Acoustical 645 configuration options allow for an up to 3' 3" (1000 mm) swing door at the side jamb at one end or both. For requirements of unit STC 44 or less, swing doors can be added to an odd number of panels hinged to the jamb. Optional higher kickplates, panic hardware, and top door closers are available.
