Perma-Tite Continuous Cleat Coping

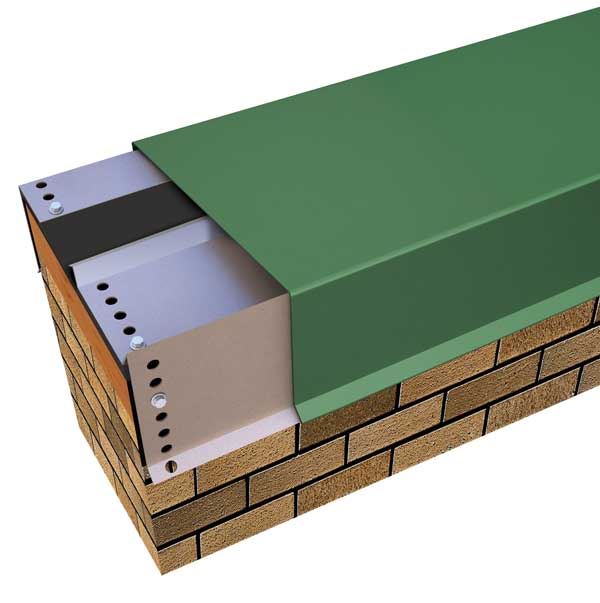

Perma-Tite Continuous Cleat Coping is a fully engineered coping system designed with 24-gauge galvanized steel continuous cleats on the inside and outside faces, providing long-term performance against high wind events. In addition, the snap-on design facilitates fast and easy installation. Perma-Tite Coping is custom fabricated in sizes to meet specific job requirements.
Features / Benefits Warranty:
The 20 Year, 120 mph Perma-Tite Wind Warranty is available on orders to meet a project's specification. It provides a maximum of 20 years, 120 mph coverage for the repair or replacement of any portion of the roof edge system that has failed due to a defect in Metal-Era supplied materials. Testing:
- Tested per ANSI/SPRI/FM 4435/ES-1 Standard to comply with the International Building Code.
- Factory Mutual 1-180 approved for wind uplift protection.
Its unique design allows for covers to be manufactured in 22 ga and 24 ga steel, 050" and .063" aluminum. Splice Plates:
8" wide concealed splice plates with dual non-curling isocryl butyl sealant strips allow for thermal movement of materials and seals all joints. Competitively Priced:
The installed cost rivals even light gauge roof edge systems fabricated locally or in a roofer’s shop. Efficient Design:
A full, continuous cleat design in 12'-0" lengths make for quick installation and low labor costs. Pre-punched fastening holes ensure proper attachment to the building substrate. 24 gauge inside and outside continuous cleats are provided in addition to all splice plates and fasteners. No adhesives are required. Colors:
Choose among a wide range of standard colors and finishes that meet your job requirements. A 30 year Kynar 500® finish warranty is included on coil-coated standard colors. Custom post-coated Kynar 500® colors are available with an included 10 year Kynar 500® finish warranty or a 20 year Kynar 500® finish warranty is available upon request.
Anodized finishes are also available and come with a 5 year warranty (no warranty available for coil anodized finishing. Post-coat/Class 1 Batch Anodized is available with a 5 Year warranty with an option to increase to a 10 Year warranty for an upcharge). Custom Capabilities:
Radius and specially fabricated products are available to meet the unique needs of each project. Accessories:
Factory fabricated miters provide a cleaner, more aesthetically pleasing appearance. This eliminates the need for field fabrication, providing time and labor savings. Also Included:
All splice plates and 24 ga. galvanized continuous cleats with slotted holes are included and will arrive to the job site with the product.
