Overview


Radiant Floor Heating System for Tile Flooring

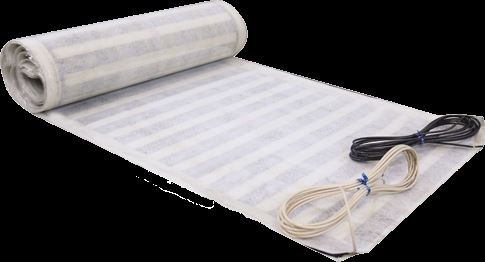

The QuietWarmth Peel and Stick Radiant Heat mats are a unique floor heating system with anti-fracture membrane installed under thin-set installations of tile, stone, marble, and other masonry flooring materials in residential and moderate commercial installations. QuietWarmth is a safe and efficient electric floor warming mat for indoor/interior only applications. It cannot be used for exterior snow melting applications. It is intended for installation below tile, stone, marble, and other masonry flooring materials.

QuietWarmth is thinner than a credit card and will not raise the floor height, eliminating any extra self-levelers or messy mortars. It is clean, quiet, hypoallergenic, and maintenance-free while providing even heat, without any hot or cold spots where installed.

Same day flooring installation - peel and stick the mat to the subfloor, route the lead wires, and start tiling!

Available in the following sizes in both 120v and 240v:

1.5' x 5' (7.5 sq ft)
1.5' x 10' (15 sq ft)
3' x 5' (15 sq ft)
3' x 10' (30 sq ft)

Designed for:

  • Ceramic Tile
  • Porcelain Tile
  • Natural Stone Tile
  • Marble Tile
Features and Benefits

Ultra-thin, conductive ink film technology - For ceremic, porcelian, natural stone, and marble tile

Peel and stick installtion - Connect up to 150 sq ft of mats wired in parallel on 1 thermostat with 120v systems, and 300 sq ft of mats on 240v systems

Cut to fit length

Fast installation, no extra mortars or mess - 30 minute installation time (based on 60 sq ft area)

Energy efficient: up to 6¢ per hour (based on 60 sq ft and typical use)

12 watts per sq ft

Available in 120v/240v

UL listed for safety

Control temperature with an available floor sensing thermostat


See More


Specifications

120V Heating Panels
PRODUCT IDMATT DIMENSIONSWATTSAMPS
QWT1.5X5F120 1.5' x 5'73.470.64
QWT1.5X10F1201.5' x 10'151.621.26
QWT3X5F120 3' X 5'164.51.44
QWT3X10F120 3' x 10'339.52.98
240V Heating Panels
PRODUCT IDMATT DIMENSIONSWATTSAMPS
QWT1.5X5F240 1.5' x 5'73.470.32
QWT1.5X10F2401.5' x 10151.620.63
QWT3X5F240 3' X 5'164.50.72
QWT3X10F240 3' x 10'339.51.49
