Overview

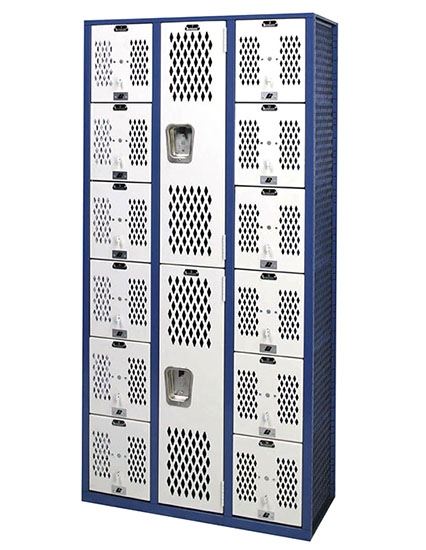

P.E. Series Lockers

Heavy gauge, fully-framed, all-welded construction combined with modern features and the Hollow-T design flexibility let you transform your locker room into an accessible environment, maximizing space and improving supervision without sacrificing aesthetic appeal. Innovative solutions, like our Gym Class 9E and Gym Class 8D locker configurations, are the result of partnering and listening to coaches and P.E. instructors for more than 80 years.

Choose From Unlimited Combinations to Meet Your Specific Locker Needs

Features:

Body/Frame: Fully-framed all-welded Hollow-T construction, 13 gauge 1/2" fully-framed flattened expanded metal sides, 16 gauge continuous top, 18 gauge solid back, 16 gauge galvanneal bottom

Doors: 14 gauge diamond perforated doors are standard. Louvered, Security-Plus and plain door styles are available. Doors 12" high and under are standard with top hinge. Doors 15" and 18" high are standard with side hinge.

Handle: Top hinge doors have a projecting spring loaded heavy-duty latch/handle with integral padlock lug. Side hinge doors have a single-point thru-the-door projecting finger pull handle with padlock hasp.

Handle options: Optional deep-drawn seamless stainless steel recessed handle is available for side hinged gym doors (10" high and higher) and will utilize our Marquis style thru-the-handle single-point no moving parts latching and include two 13 gauge 7-knuckle 3-1/2" hinges

Latching: 12 gauge latch hooks MIG welded to frame, gravity lift-type multi-point spring loaded latching: 3-point latching for openings 48" high and higher, 2-point latching for openings 20" high thru 36" high

Hinges: Top hinge doors use a concealed 3/16" continuous rod. Side hinge doors use two heavy-duty 13 gauge 7-knuckle 3-1/2" hinges. Optional side hinged doors 8” and 9” high will have special hinges

Hooks: None

Shelves: shelves: 16 gauge galvanneal intermediate shelves

Warranty: Lifetime


See More


Specifications

Standard:

Deep-drawn 304 stainless steel recessed handle multi-point gravity-lift type latching.

Optional:

Slope Tops can be added to keep debris and items from collecting on top of lockers.

Upgrade to Premier

Includes a 3" wide 18 gauge full height door stiffener spot welded to the inner door face and MIG welded to the hinge side as well as to the top and bottom door flanges providing a rigid torque-free door. A 1-1/2" wide stiffener will be furnished for 9" wide doors. 18” and 24” all-welded lockers are only available in Premier Series.

sizes:Single TierDouble TierTriple Tier
Widths9", 12", 15", 18", 24"9", 12", 15", 18", 24"9", 12", 15", 18", 24"
Depths12", 16", 18", 22"12", 16", 18", 22"12", 16", 18", 22"
Opening Heights24", 30", 35"20", 24"
Column Heights36", 48", 60", 72"48", 60", 72"60", 72"
