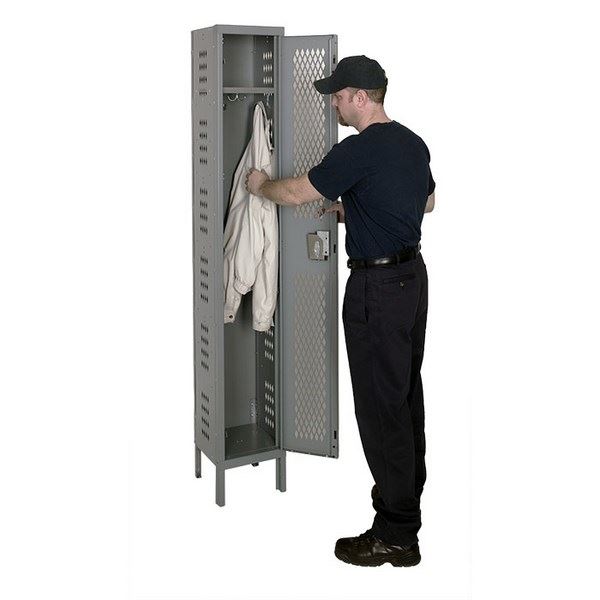

Heavy-Duty Ventilated KD Lockers

When budget limitations do not allow for all-welded athletic lockers, HDV lockers are the perfect alternative.

Heavy-Duty Ventilated KD lockers, commonly known as HDV lockers, are the perfect solution when budget restrictions prevent the use of fully-framed all-welded lockers.

HDV lockers are sold in various colors and multiple tier wardrobe & box options.

Features:

Body/Frame: Knock down (KD) with 16 gauge solid top, bottom and intermediate shelves, 16 gauge diamond perforated sides, 18 gauge solid back. 16 gauge frame with 16 gauge horizontal cross member between doors on double and triple tier wardrobe lockers

Doors: 14 gauge diamond perforated doors are standard. Louvered, Secure Air-Flow and Safety-View door styles are available. Continuous vertical door strike at both hinge and latch side

Handle: (Wardrobe) Deep-drawn seamless stainless steel recessed handle, (Box) Single-point thru-the-door finger pull padlock hasp

Latching: Gravity lift-type multi-point spring loaded latching: 3-point latching for openings 48" high and higher 2 point latching for openings 20" high thru 36" high

Hinges: 16 gauge continuous piano type

Hooks: 2-single hooks and 1-double hook is standard. 1- double hook only for triple tier 1 - single hook for 9" wide openings 30" and higher (None for Box Lockers)

Shelves: 16 gauge hat shelf for single tier openings 60" and 72" high

Legs: All production KD lockers are supplied without legs unless otherwise specified

Warranty: 2 Year

WARDROBE LOCKERS (DOORS 20" AND HIGHER):

Handle: Deep-drawn seamless stainless steel recessed handle

Latching: Gravity lift-type multi-point spring loaded latching:

3-point latching for openings 48" high and higher

2 point latching for openings 20" high thru 36" high

Hooks: 2-single hooks and 1-double hook is standard.

1- double hook only for triple tier 1 - single hook for 9" wide openings 30" and higher

Shelves: 16 gauge hat shelf for single tier openings 60" and 72" high

BOX LOCKERS (DOORS 18" AND LOWER):

Handle: Single-point thru-the-door finger pull padlock hasp

Hooks: None


See More


Specifications

Standard:

12 gauge latch hook is welded to the frame.

Standard:

Deep-drawn 304 stainless steel recessed handle multi-point gravity-lift type latching.

Standard:

16-gauge continuous piano type hinge

Upgrade to Marquis Series:

Includes our deep-drawn seamless stainless steel recessed handle with single-point latching and a 3" wide 18 gauge full height door stiffener spot welded to the inner door face and MIG welded to the hinge side as well as to the top and bottom door flanges providing a rigid torque-free door. A 1-1/2" wide stiffener will be furnished for 9" wide Marquis Series doors.

Upgrade to Premier

Includes a 3" wide 18 gauge full height door stiffener spot welded to the inner door face and MIG welded to the hinge side as well as to the top and bottom door flanges providing a rigid torque-free door. A 1-1/2" wide stiffener will be furnished for 9" wide doors. 18” and 24” all-welded lockers are only available in Premier Series.

Wardrobe Locker Sizes:
TierWidthDepthOpening HeightFrame Height
Single9", 12", 15", 18", 24"12", 15", 18", 21", 24"36", 48", 60", 72"36", 48", 60", 72"
Double9", 12", 15", 18"12", 15", 18", 21", 24"30", 36"60", 72"
Triple9", 12", 15"12", 15", 18", 21", 24"20", 24"60", 72"
Box Locker Sizes:
TierWidthDepthOpening HeightFrame Height
Four12", 15"12", 15", 18"15", 18"60", 72"
Five12", 15"12", 15", 18"12", 12.4"60", 72"
Six12", 15"12", 15", 18"12"72"
