List Industries Inc. -Heavy-Duty Corridor (HDC) KD Wardrobe Lockers 25% heavier than standard KD

DOWNLOADS

HDC door gauge is increased to 14 gauge which is 25% heavier than standard 16 gauge doors.

Heavy-Duty Corridor lockers, commonly known as HDC lockers, are designed to include all the great features of our Classic KD wardrobe lockers.


Category: garment lockers | metal lockers | storage lockers...

MasterFormat: Storage Specialties | Lockers | Metal Lockers



List Industries Inc.
401 Jim Moran Blvd.
PO Box 9601
Deerfield Beach, FL 33442
Tel: (800) 776-1342
Fax: (954) 428-3843

info@listindustries.com

https://www.listindustries.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview

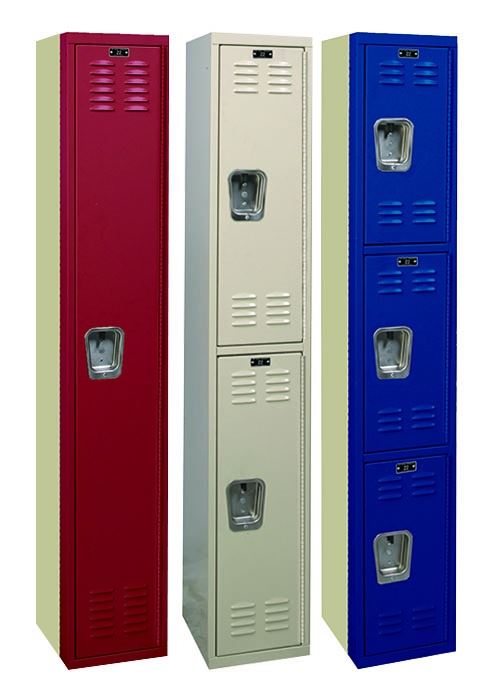

Heavy-Duty Corridor (HDC) KD Wardrobe Lockers 25% heavier than standard KD

HDC door gauge is increased to 14 gauge which is 25% heavier than standard 16 gauge doors.

Heavy-Duty Corridor lockers, commonly known as HDC lockers, are designed to include all the great features of our Classic KD wardrobe lockers; however, the door gauge is increased to 14 gauge which is 25% heavier than standard 16 gauge doors. To further increase door integrity, we offer our HDC Premier model which includes an 18 gauge full height door stiffener.

Features:

Body/Frame: Knock down (KD) with 24 gauge solid body components. 16 gauge frame with 16 gauge horizontal cross member between doors on double and triple tier wardrobe lockers

Doors: 14 gauge louvered doors are standard. Plain, Secure-Air-Flow, Safety-View and diamond perforated door styles are available. Continuous vertical door strike at both hinge and latch side

Handle: Deep-drawn seamless stainless steel recessed handle

Latching: 12 gauge latch hooks MIG welded to frame. Gravity lift-type multi-point spring loaded latching: 3-point latching for openings 48" high and higher 2-point latching for openings 20" high thru 36" high

Hinges: 16 gauge continuous piano hinge

Hooks: 2-single hooks and 1-double hook is standard. 1-double hook only for triple tier and 1-double and 1- single hook for 9" wide openings 30" and higher

Shelves: Hat shelf for single tier openings 60" and 72" high

Legs: All production KD lockers are supplied without legs unless otherwise specified

Warranty: 2 Year


See More


Specifications

Standard:

12 gauge latch hook is welded to the frame.

Standard:

Deep-drawn 304 stainless steel recessed handle multi-point gravity-lift type latching.

Standard:

18 gauge continuous piano hinge

Max Option Upgrade:

Upgrades all body components to 16 gauge with 18 gauge back. Recommended when placing heavy items in lockers such as backpacks.

Upgrade to Premier

Includes a 3" wide 18 gauge full height door stiffener spot welded to the inner door face and MIG welded to the hinge side as well as to the top and bottom door flanges providing a rigid torque-free door. A 1-1/2" wide stiffener will be furnished for 9" wide doors. 18” and 24” all-welded lockers are only available in Premier Series.

Production sizes:WidthDepthOpening HeightFrame Height
Single Tier9", 12", 15", 18", 24"12", 15", 18", 21", 24"36", 48", 60", 72"36", 48", 60", 72"
Double Tier9", 12", 15", 18"12", 15", 18", 21", 24"30", 26"60", 72"
Triple Tier9", 12", 15"12", 15", 18"20", 24"60", 72"
