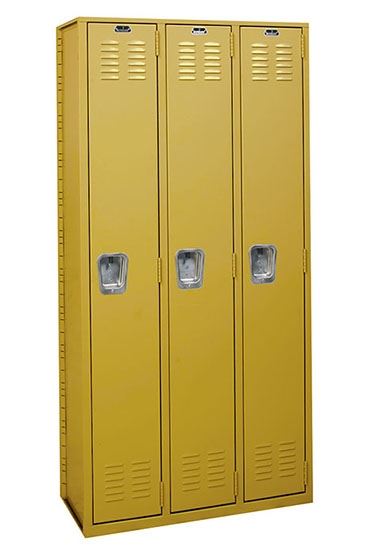

Graduate Corridor Lockers Graduate Fully-Framed All-Welded Corridor Lockers

With the addition of solid sides and louvered doors, the industry's best athletic locker is perfect for corridor applications when maximum strength, durability and longevity are important. Graduate lockers include our lifetime warranty, which is standard on all fully-framed all-welded lockers.

The use of our exclusive Hollow-T framing system together with galvanneal bottom, intermediate and hat shelves (where applicable) achieves a degree of excellence previously reserved for high abuse athletic room. Upgrade to our Graduate Premier and you get our full height door stiffener creating a rigid torque-free door.

Features:

Body/Frame: Fully-framed all-welded Hollow-T construction, 18 gauge fully-framed solid sides, 16 gauge continuous top, 18 gauge solid back, 16 gauge galvanneal bottom

Doors: 14 gauge louvered doors are standard Plain, Security-Plus, Safety-View and diamond perforated door styles are available

Handle: Deep-drawn seamless stainless steel recessed handle

Latching: 11 gauge latch hooks with riveted on bumper MIG welded to Hollow-T frame. Gravity lift-type multi-point spring loaded latching: • 3-point latching for openings 48" high and higher • 2-point latching for openings 20" high thru 36" high Lock Bars are fabricated from G90 galvanized steel and are installed into the door after paint.

Hinges: Heavy-duty 13 gauge 7-knuckle 3-1/2" hinges: • 3-hinges per opening 48" high and higher • 2-hinges per opening 20" high thru 36" high

Hooks: 2-single hooks and 1-double hook is standard. 1-double hook only for triple tier 1-double and 1-single hook for 9" wide openings 30" and higher

Warranty: Lifetime


See More


Specifications

Standard:

Heavy-duty 13 gauge 7-knuckle (3 hinges per door)

Standard:

Deep-drawn 304 stainless steel recessed handle multi-point gravity-lift type latching.

Upgrade to Premier

Includes a 3" wide 18 gauge full height door stiffener spot welded to the inner door face and MIG welded to the hinge side as well as to the top and bottom door flanges providing a rigid torque-free door. A 1-1/2" wide stiffener will be furnished for 9" wide doors. 18” and 24” all-welded lockers are only available in Premier Series.
