List Industries Inc. -Classic KD Wardrobe Locker A Knockout In Knockdown Lockers

DOWNLOADS

Elegant and affordable, the Standard KD Locker is perfect for installation into school corridors.

Single Tier Provides ample height for hanging of full length garments.

Double Tier,full length hanging of garments is not required double tier lockers offer an economical alternative.


Category: garment lockers | metal lockers | storage lockers...

MasterFormat: Storage Specialties | Lockers | Metal Lockers



List Industries Inc.
401 Jim Moran Blvd.
PO Box 9601
Deerfield Beach, FL 33442
Tel: (800) 776-1342
Fax: (954) 428-3843

info@listindustries.com

https://www.listindustries.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview

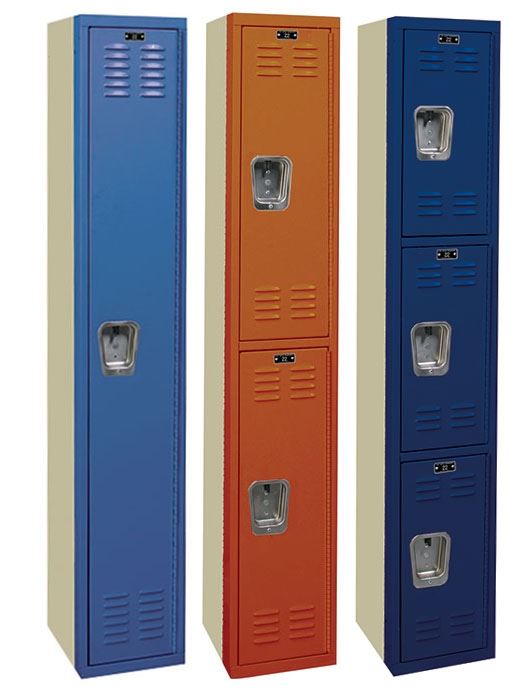

Classic KD Wardrobe Locker A Knockout In Knockdown Lockers

Elegant and affordable, the Standard KD Locker is perfect for installation into school corridors.

Single Tier Provides ample height for hanging of full length garments.

Double Tier Where full length hanging of garments is not required double tier lockers offer an economical alternative.

Triple Tier lockers are ideal for use where storage of long garments is not required.

Features:

Body/Frame: Knockdown (KD) with 24 gauge solid body components. 16 gauge frame with 16 gauge horizontal cross member between doors on double and triple tier wardrobe lockers

Doors: 16 gauge louvered doors, 18 gauge for 9" wide, are standard. Plain, Secure-Air-Flow, Safety-View and diamond perforated door styles are available. Continuous vertical door strike at both hinge and latch side

Handle: Deep-drawn seamless stainless steel recessed handle

Latching: 12 gauge latch hooks MIG welded to frame. Gravity lift-type multi-point spring loaded latching: 3-point latching for openings 48" high and higher, 2-point latching for openings 20" high thru 36" high

Hinges: 16 gauge continuous piano hinge

Hooks: 2-single hooks and 1-double hook is standard. 1-double hook only for triple tier and 1-double and 1- single hook for 9" wide openings 30" and higher

Shelves: Hat shelf for single tier openings 60" and 72" high

Legs: All production KD lockers are supplied without legs unless otherwise specified.

Warranty: 2 Year


See More


Specifications

Standard:

Deep-drawn 304 stainless steel recessed handle multi-point gravity-lift type latching.

Standard:

18 gauge continuous piano hinge

Standard:

Single-point thru-the-door finger pull padlock hasp.(shown with optional padlock strike plate)

Strike Plate Upgrade:

Padlock strike plates protect finish from being marred by padlock

Max Option Upgrade:

Upgrades all body components to 16 gauge with 18 gauge back. Recommended when placing heavy items in lockers such as backpacks.

Production sizes:WidthDepthOpening HeightFrame Height
Single Tier9", 12", 15", 18", 24"12", 15", 18", 21", 24"36", 48", 60", 72"36", 48", 60", 72"
Double Tier9", 12", 15", 18"12", 15", 18", 21", 24"30", 26"60", 72"
Triple Tier9", 12", 15"12", 15", 18"20", 24"60", 72"
Notes:

Lockers can be ordered fully-assembled or knock-down for assembly at destination
Aluminum number plates (#1-up) with mounting hardware are included. Number plate face is black with silver etched numerals. If a special numbering sequence is required, kindly specify when ordering. Number sequence must be consecutive numbers equal to the number of openings (doors) ordered.
Locks are not included
