Overview


Athletic Team Lockers

Athletic Team lockers are available in three different standard configurations depending on your facility needs. Varsity single-tier lockers, Jr. Varsity double-tier lockers or Intramural triple tier lockers.

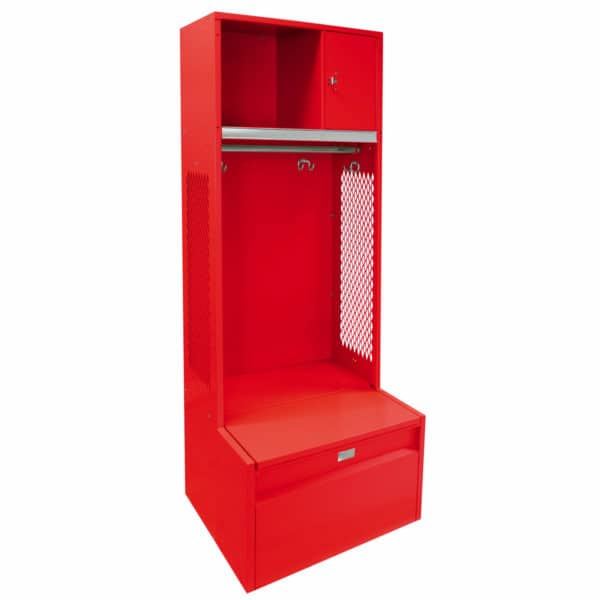

Varsity Single Tier Athletic Lockers

Designed with the athlete in mind, Varsity single tier lockers are highly recommended for varsity team rooms. Varsity lockers are engineered to withstand excessive abuse. These lockers are also excellent in combination with P.E. lockers.

Jr. Varsity Double Tier Athletic Lockers

Jr. Varsity double tier athletic lockers are ideal when budget or space limitations apply. Double tier lockers can be used in team rooms as well as in P.E.

Intramural Triple Tier Athletic Lockers

Intramural triple tier athletic lockers are ideal when space and/or funds are limited. The opening height allows clothing to hang on hooks allowing better ventilation than a smaller P.E.

Features:

Body/Frame: Fully-framed all-welded Hollow-T construction, 13 gauge 1/2" fully-framed flattened expanded metal sides, 16 gauge continuous top, 18 gauge solid back, 16 gauge galvanneal bottom

Doors: 14 gauge diamond perforated doors are standard. Plain, Secure-Air-Flow, and louvered door styles are available, Continuous vertical door strike at both hinge and latch side

Handle: Deep-drawn seamless stainless steel recessed handle. Optional projecting 3-point turn-handle is available.

Latching: 11 gauge latch hooks with riveted on bumper MIG welded to Hollow-T frame. Gravity lift-type multi-point spring loaded latching: • 3-point latching for openings 48" high and higher • 2-point latching for openings 20" high thru 36" high

Hinges: Heavy-duty 13 gauge 7-knuckle 3-1/2" hinges: • 3-hinges per opening 48" high and higher • 2-hinges per opening 20" high thru 36" high

Hooks: 2-single hooks and 1-double hook is standard. 1-double hook only for triple tier and 1-double and 1-single hook for 9" wide openings 30" and higher

Shelves: 16 gauge galvanneal hat shelf for Varsity openings 60" and 72" high, 16 gauge galvanneal intermediate shelv

Warranty: Lifetime


See More


Specifications

Standard:

Deep-drawn 304 stainless steel recessed handle multi-point gravity-lift type latching.

Upgrade to Premier

Includes a 3" wide 18 gauge full height door stiffener spot welded to the inner door face and MIG welded to the hinge side as well as to the top and bottom door flanges providing a rigid torque-free door. A 1-1/2" wide stiffener will be furnished for 9" wide doors. 18” and 24” all-welded lockers are only available in Premier Series.

sizes:

Single TierDouble TierTriple Tier
Widths9", 12", 15", 18", 24"9", 12", 15", 18", 24"9", 12", 15", 18", 24"
Depths12", 16", 18", 22"12", 16", 18", 22"12", 16", 18", 22"
Opening Heights24", 30", 35"20", 24"
Column Heights36", 48", 60", 72"48", 60", 72"60", 72"
