Overview


Porcelain Slabs - I Naturali Series

Laminam is the porcelain slab. Laminam was the first porcelain slab in the world and today embodies all the know-how, experience, technology and aesthetic research available when it comes to large format surfaces. Laminam boasts the most complete range of products on the market, not only for sizes and thicknesses, but also for collections, colors and surfaces.

Hygienic surface

Laboratory tests have proven that Laminam XL is totally compatible with food preparation areas, no harmful elements are released with contact.

Easy to clean and maintain

Laminam XL has no special maintenance requirements as time goes by; all you need to clean the surface is warm water and a neutral detergent.

Eco-friendly and recyclable

Laminam is a totally natural product. It does not release any elements into the environment and can be easily milled and recycled in other manufacturing processes.

Compact surface, no surface porosity

The water absorption of Laminam XL is average 0.1%.

Dimensional stability

Laminam XL is not subject to dimensional variations of any significance, as it has a low coefficient of thermal expansion.

Suitable as an indoor or outdoor solution

Laminam XL can be used as a surface for interior or exterior décor.

Resistant to heat and high temperatures

The Laminam XL surface does not contain any organic materials and so will not be altered in case of direct contact with very hot items in the kitchen, like pots and pans, and high temperatures.

Resistant to mold and fungi

Laminam XL does not allow mold, bacteria or fungi to grow.

Resistance to staining (*)

Laminam XL is not affected by prolonged contact with products commonly found in the kitchen that can cause staining, such as wine, coffee, olive oil, or lemon juice; and its color or shine will not be affected permanently.

Resistant to detergents and cleaning products (*)

Laminam XL is not affected by prolonged contact with normal household detergents, including products to eliminate grease or lime scale.

Resistant to chemicals, acids,alkalis and solvents (*)

Laminam XL is not affected by chemicals, solvents or disinfectants. The only chemical that can damage ceramics is hydrofluoric acid.

Resistant to thermal shock

Sudden outdoor changes in temperature out of doors will not damage Laminam XL.

Frost resistant

The surface of Laminam XL is not affected by drops in temperature or the formation of ice.

Resistant to humidity

The surface of Laminam XL is not affected by long-term humidity.

Resistant to UV light,no alteration to colours

Laminam XL is not affected by exposure to UV light and will preserve its original good looks throughout its lifetime.

Resistant to flection

Laminam XL has a high point of rupture.

Resistant to scratching and abrasion (*)

Laminam XL is resistant to scratching and deep abrasion. Its properties do not change even if it is subjected to intensive use in the kitchen and frequent cleaning.

(*) Not guaranteed for Laminam XL Lucidato as it is more sensitive than other Laminam surfaces. However, Laminam XL Lucidato surfaces still offer a similar or a better performance than other work top materials.

Technical data Laminam XL

- Laminam XL is made up of a base slab, strengthened with a fiberglass blanket bonded on the back.
- Processing surface: 1620x3240mm (63.7”x 127.5”)
- Nominal thickness: 5.6mm (1/4’’); 12mm (1/2”); 20mm (3/4’’)
- Finishes Details: Naturale (Matte), Lucidato (Polished), Bocciardato (bush hammered effect) and Soft Touch

Technical specifications Laminam XL

Laminate porcelain obtained by wet grinding of clay raw materials, granite and metamorphic rocks, with a feldspathic component and ceramic pigments. Specially shaped in a compactor and sintered at 1200°C, with gas firing. Structurally reinforced with inert material (fiberglass blanket bonded on the back).


See More


Specifications

TECHNICAL DETAILS

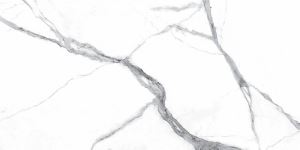

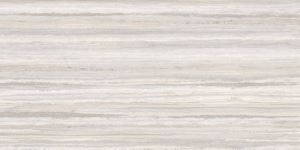

TRAVERTINO GRIGIO VENATO BOCCIARDATO - 3 AVAILABLE FACES SUPPLIED RANDOMLYSTATUARIO ALTISSIMO - 6 AVAILABLE FACES SUPPLIED RANDOMLYSTATUARIO ALTISSIMO LUCIDATO - 6 AVAILABLE FACES SUPPLIED RANDOMLY
THICKNESS: FORMATSTHICKNESS: FORMATSTHICKNESS: FORMATS
Laminam 5: 1620x3240mm / 63.7"x 127.5"Laminam 5: 1620x3240mm / 63.7"x 127.5"Laminam 5: 1620x3240mm / 63.7"x 127.5"
Laminam 12+: 1620x3240mm / 63.7"x 127.5"Laminam 12+: 1620x3240mm / 63.7"x 127.5"Laminam 12+: 1620x3240mm / 63.7"x 127.5"
Laminam 20+: 1620x3240mm / 63.7"x 127.5"Laminam 20+: 1620x3240mm / 63.7"x 127.5"

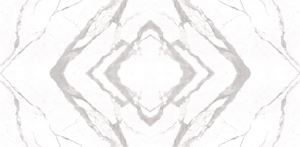

STATUARIO ALTISSIMO SOFT TOUCH - 6 AVAILABLE FACES SUPPLIED RANDOMLYSTATUARIO ALTISSIMO BOOK MATCH - BOOK MATCH LUCIDATO - BOOK MATCH SOFT TOUCHINVISIBLE WHITE - 3 AVAILABLE FACES SUPPLIED RANDOMLY
THICKNESS: FORMATSTHICKNESS: FORMATSTHICKNESS: FORMATS
Laminam 5: 1620x3240mm / 63.7"x 127.5"Laminam 12+: 1620x3240mm / 63.7"x 127.5"Laminam 5+: 1620x3240mm / 63.7"x 127.5"
Laminam 12+: 1620x3240mm / 63.7"x 127.5"Laminam 12+: 1620x3240mm / 63.7"x 127.5"
INVISIBLE WHITE LUCIDATO - 3 AVAILABLE FACES SUPPLIED RANDOMLYINVISIBLE WHITE SOFT TOUCH - 3 AVAILABLE FACES SUPPLIED RANDOMLYCALACATTA MICHELANGELO - 6 AVAILABLE FACES SUPPLIED RANDOMLY
THICKNESS: FORMATSTHICKNESS: FORMATSTHICKNESS: FORMATS
Laminam 5+: 1620x3240mm / 63.7"x 127.5"Laminam 5+: 1620x3240mm / 63.7"x 127.5"Laminam 5: 1620x3240mm / 63.7"x 127.5"
Laminam 12+: 1620x3240mm / 63.7"x 127.5"Laminam 12+: 1620x3240mm / 63.7"x 127.5"Laminam 12+: 1620x3240mm / 63.7"x 127.5"
Laminam 20+: 1620x3240mm / 63.7"x 127.5"
CALACATTA MICHELANGELO LUCIDATO - 6 AVAILABLE FACES SUPPLIED RANDOMLYCALACATTA MICHELANGELO SOFT TOUCH - 6 AVAILABLE FACES SUPPLIED RANDOMLYCALACATTA MICHELANGELO BOOK MATCH - BOOK MATCH LUCIDATO - BOOK MATCH SOFT TOUCH
THICKNESS: FORMATSTHICKNESS: FORMATSTHICKNESS: FORMATS
Laminam 5: 1620x3240mm / 63.7"x 127.5"Laminam 5: 1620x3240mm / 63.7"x 127.5"Laminam 12+: 1620x3240mm / 63.7"x 127.5"
Laminam 12+: 1620x3240mm / 63.7"x 127.5"Laminam 12+: 1620x3240mm / 63.7"x 127.5"
Laminam 20+: 1620x3240mm / 63.7"x 127.5"
I NATURALI - ARABESCATO - 3 AVAILABLE FACES SUPPLIED RANDOMLYI NATURALI - ARABESCATO LUCIDATO - 3 AVAILABLE FACES SUPPLIED RANDOMLYI NATURALI - BIANCO LASA - 3 AVAILABLE FACES SUPPLIED RANDOMLY
THICKNESS: FORMATSTHICKNESS: FORMATSTHICKNESS: FORMATS
Laminam 5+: 1620x3240mm / 63.7"x 127.5", 1620x1620mm / 63.7"x 63.7"Laminam 5+: 1620x3240mm / 63.7"x 127.5", 1620x1620mm / 63.7"x 63.7"Laminam 12+: 1620x3240mm / 63.7"x 127.5"
Laminam 12+: 1620x3240mm / 63.7"x 127.5"Laminam 12+: 1620x3240mm / 63.7"x 127.5"
I NATURALI - BIANCO LASA LUCIDATO - 3 AVAILABLE FACES SUPPLIED RANDOMLYI NATURALI - BIANCO STATUARIO VENATO - 2 AVAILABLE FACES SUPPLIED RANDOMLYI NATURALI - BIANCO STATUARIO VENATO BOOK MATCH
THICKNESS: FORMATSTHICKNESS: FORMATSTHICKNESS: FORMATS
Laminam 12+: 1620x3240mm / 63.7"x 127.5"Laminam 5+: 1620x3240mm / 63.7"x 127.5"Laminam 5+: 1620x3240mm / 63.7"x 127.5"
I NATURALI - BIANCO STATUARIO VENATO LUCIDATO - 2 AVAILABLE FACES SUPPLIED RANDOMLYI NATURALI - BIANCO STATUARIO VENATO LUCIDATO BOOK MATCHI NATURALI - BIANCO STATUARIO VENATO SOFT TOUCH - 2 AVAILABLE FACES SUPPLIED RANDOMLY
THICKNESS: FORMATSTHICKNESS: FORMATSTHICKNESS: FORMATS
Laminam 5+: 1620x3240mm / 63.7"x 127.5"Laminam 5+: 1620x3240mm / 63.7"x 127.5"Laminam 12+: 1620x3240mm / 63.7"x 127.5"
Laminam 12+: 1620x3240mm / 63.7"x 127.5"Laminam 12+: 1620x3240mm / 63.7"x 127.5"
I NATURALI - BIANCO STATUARIO VENATO SOFT TOUCH BOOK MATCHI NATURALI - CALACATTA ORO VENATO - 2 AVAILABLE FACES SUPPLIED RANDOMLYI NATURALI - CALACATTA ORO VENATO BOOK MATCH
THICKNESS: FORMATSTHICKNESS: FORMATSTHICKNESS: FORMATS
Laminam 12+: 1620x3240mm / 63.7"x 127.5"Laminam 5+: 1620x3240mm / 63.7"x 127.5"Laminam 5+: 1620x3240mm / 63.7"x 127.5"
I NATURALI - CALACATTA ORO VENATO LUCIDATO - 2 AVAILABLE FACES SUPPLIED RANDOMLYI NATURALI - CALACATTA ORO VENATO LUCIDATO BOOK MATCHI NATURALI - CALACATTA ORO VENATO SOFT TOUCH - 2 AVAILABLE FACES SUPPLIED RANDOMLY
THICKNESS: FORMATSTHICKNESS: FORMATSTHICKNESS: FORMATS
Laminam 5+: 1620x3240mm / 63.7"x 127.5"Laminam 5+: 1620x3240mm / 63.7"x 127.5"Laminam 12+: 1620x3240mm / 63.7"x 127.5"
Laminam 12+: 1620x3240mm / 63.7"x 127.5"Laminam 12+: 1620x3240mm / 63.7"x 127.5"
I NATURALI - CALACATTA ORO VENATO SOFT TOUCH BOOK MATCHI NATURALI - DIAMOND CREAM - 3 AVAILABLE FACES SUPPLIED RANDOMLYI NATURALI - DIAMOND CREAM LUCIDATO - 3 AVAILABLE FACES SUPPLIED RANDOMLY
THICKNESS: FORMATSTHICKNESS: FORMATSTHICKNESS: FORMATS
Laminam 12+: 1620x3240mm / 63.7"x 127.5"Laminam 5+: 1620x3240mm / 63.7"x 127.5", 1620x1620mm / 63.7"x 63.7"Laminam 5+: 1620x3240mm / 63.7"x 127.5", 1620x1620mm / 63.7"x 63.7"
Laminam 12+: 1620x3240mm / 63.7"x 127.5"Laminam 12+: 1620x3240mm / 63.7"x 127.5"
Laminam 20+: 1620x3240mm / 63.7"x 127.5"Laminam 20+: 1620x3240mm / 63.7"x 127.5"
I NATURALI - EMPERADOR EXTRA - 3 AVAILABLE FACES SUPPLIED RANDOMLYI NATURALI - EMPERADOR EXTRA LUCIDATO - 3 AVAILABLE FACES SUPPLIED RANDOMLYI NATURALI - NERO GRECO - 3 AVAILABLE FACES SUPPLIED RANDOMLY
THICKNESS: FORMATSTHICKNESS: FORMATSTHICKNESS: FORMATS
Laminam 5+: 1620x3240mm / 63.7"x 127.5"Laminam 5+: 1620x3240mm / 63.7"x 127.5"Laminam 5+: 1620x3240mm / 63.7"x 127.5", 1620x1620mm / 63.7"x 63.7"
Laminam 12+: 1620x3240mm / 63.7"x 127.5"Laminam 12+: 1620x3240mm / 63.7"x 127.5"Laminam 12+: 1620x3240mm / 63.7"x 127.5"
I NATURALI - NERO GRECO LUCIDATO - 3 AVAILABLE FACES SUPPLIED RANDOMLYI NATURALI - NOIR DESIR - 3 AVAILABLE FACES SUPPLIED RANDOMLYI NATURALI - NOIR DESIR LUCIDATO - 3 AVAILABLE FACES SUPPLIED RANDOMLY
THICKNESS: FORMATSTHICKNESS: FORMATSTHICKNESS: FORMATS
Laminam 5+: 1620x3240mm / 63.7"x 127.5", 1620x1620mm / 63.7"x 63.7"Laminam 5+: 1620x3240mm / 63.7"x 127.5"Laminam 5+: 1620x3240mm / 63.7"x 127.5"
Laminam 12+: 1620x3240mm / 63.7"x 127.5"Laminam 12+: 1620x3240mm / 63.7"x 127.5"Laminam 12+: 1620x3240mm / 63.7"x 127.5"
Laminam 20+: 1620x3240mm / 63.7"x 127.5"Laminam 20+: 1620x3240mm / 63.7"x 127.5"
I NATURALI - OROBICO GRIGIO - 3 AVAILABLE FACES SUPPLIED RANDOMLYI NATURALI - OROBICO GRIGIO LUCIDATO - 3 AVAILABLE FACES SUPPLIED RANDOMLYI NATURALI - BLUE STONE - 3 AVAILABLE FACES SUPPLIED RANDOMLY
THICKNESS: FORMATSTHICKNESS: FORMATSTHICKNESS: FORMATS
Laminam 5+: 1620x3240mm / 63.7"x 127.5"Laminam 5+: 1620x3240mm / 63.7"x 127.5"Laminam 12+: 1620x3240mm / 63.7"x 127.5"
Laminam 12+: 1620x3240mm / 63.7"x 127.5"Laminam 12+: 1620x3240mm / 63.7"x 127.5"
I NATURALI - PIETRA DI SAVOIA ANTRACITE BOCCIARDATA - 3 AVAILABLE FACES SUPPLIED RANDOMLYI NATURALI - PIETRA DI SAVOIA GRIGIA BOCCIARDATA - 3 AVAILABLE FACES SUPPLIED RANDOMLYI NATURALI - PIETRA DI SAVOIA PERLA BOCCIARDATA - 3 AVAILABLE FACES SUPPLIED RANDOMLY
THICKNESS: FORMATSTHICKNESS: FORMATSTHICKNESS: FORMATS
Laminam 5+: 1620x3240mm / 63.7"x 127.5", 1620x1620mm / 63.7"x 63.7"Laminam 5+: 1620x3240mm / 63.7"x 127.5", 1620x1620mm / 63.7"x 63.7"Laminam 5+: 1620x3240mm / 63.7"x 127.5", 1620x1620mm / 63.7"x 63.7"
Laminam 12+: 1620x3240mm / 63.7"x 127.5"Laminam 12+: 1620x3240mm / 63.7"x 127.5"Laminam 12+: 1620x3240mm / 63.7"x 127.5"
Laminam 20+: 1620x3240mm / 63.7"x 127.5"Laminam 20+: 1620x3240mm / 63.7"x 127.5"Laminam 20+: 1620x3240mm / 63.7"x 127.5"
I NATURALI - PIETRA GREY - 3 AVAILABLE FACES SUPPLIED RANDOMLYI NATURALI - PIETRA GREY LUCIDATA - 3 AVAILABLE FACES SUPPLIED RANDOMLYI NATURALI - STATUARIETTO - 2 AVAILABLE FACES SUPPLIED RANDOMLY
THICKNESS: FORMATSTHICKNESS: FORMATSTHICKNESS: FORMATS
Laminam 5+: 1620x3240mm / 63.7"x 127.5", 1620x1620mm / 63.7"x 63.7"Laminam 5+: 1620x3240mm / 63.7"x 127.5", 1620x1620mm / 63.7"x 63.7"Laminam 5+: 1620x3240mm / 63.7"x 127.5", 1620x1620mm / 63.7"x 63.7"
Laminam 12+: 1620x3240mm / 63.7"x 127.5"Laminam 12+: 1620x3240mm / 63.7"x 127.5"Laminam 12+: 1620x3240mm / 63.7"x 127.5"
Laminam 20+: 1620x3240mm / 63.7"x 127.5"Laminam 20+: 1620x3240mm / 63.7"x 127.5"
I NATURALI - STATUARIETTO BOOK MATCHI NATURALI - STATUARIETTO LUCIDATO - 2 AVAILABLE FACES SUPPLIED RANDOMLYI NATURALI - STATUARIETTO LUCIDATO BOOK MATCH
THICKNESS: FORMATSTHICKNESS: FORMATSTHICKNESS: FORMATS
Laminam 12+: 1620x3240mm / 63.7"x 127.5"Laminam 5+: 1620x3240mm / 63.7"x 127.5", 1620x1620mm / 63.7"x 63.7"Laminam 12+: 1620x3240mm / 63.7"x 127.5"
Laminam 12+: 1620x3240mm / 63.7"x 127.5"
