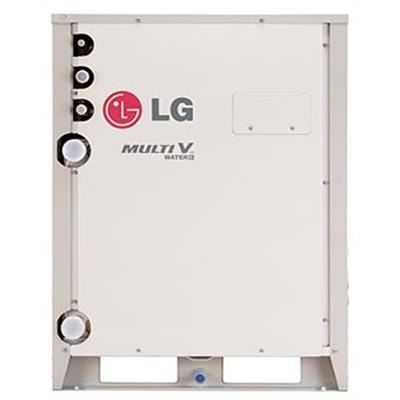

Multi V Water IV Heat Recovery Series

Water Source

LG Multi V Water IV Heat Recovery systems permit synchronous cooling and heating in different zones at the same time. Units are available from 6 tons to 48 tons.

Overview

The Multi V Water IV product line is LG's advanced VRF system. Multi V Water IV systems are designed to provide the owner the benefits of VRF - lower operational costs per year, minimal or no duct work to purchase or install, tenant comfort with zoning while maintaining architectural integrity. No need to place any units outdoor.

Benefits & Features

  • Available in 208-230V with sizes ranging from 6 - 36 tons and in 460V with sizes ranging from 6 - 48 tons
  • AHRI 1230 certified
  • Installed indoors which allows a cleaner building exterior
  • Compact size to fit in small mechanical rooms
  • Front pipe connections allow easier installation
  • Stackable units (with field supplied racks)
  • Stainless steel plate heat exchanger for condenser water, with built in temperature sensor


See More


Specifications

Models
Model NumberVoltageTonnage
ARWB072BAS4208-230V6.0 Ton
ARWB072DAS4460V6.0 Ton
ARWB096BAS4208-230V8.0 Ton
ARWB096DAS4460V8.0 Ton
ARWB121BAS4208-230V10.0 Ton
ARWB121DAS4460V10.0 Ton
ARWB144BAS4208-230V12.0 Ton
ARWB144DAS4460V12.0 Ton
ARWB192BAS4208-230V16.0 Ton
ARWB192DAS4460V16.0 Ton
ARWB240BAS4208-230V20.0 Ton
ARWB240DAS4460V20.0 Ton
ARWB288BAS4208-230V24.0 Ton
ARWB289DAS4460V24.0 Ton
ARWB336BAS4208-230V28.0 Ton
ARWB337DAS4460V28.0 Ton
ARWB432BAS4208-230V36.0 Ton
ARWB432DAS4460V36.0 Ton
ARWB480DAS4460V40.0 Ton
ARWB576DAS4460V48.0 Ton
