Overview

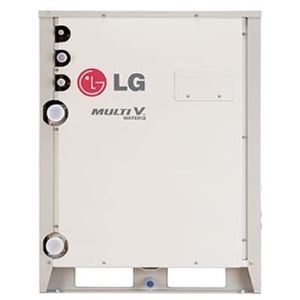

Multi V Water IV Heat Recovery - Model ARWB096BAS4

Water Source

LG Multi V Water IV Heat Recovery systems permit synchronous cooling and heating in different zones at the same time. Units are available from 6 tons to 48 tons.

Overview

The Multi V Water IV product line is LG's advanced VRF system. Multi V Water IV systems are designed to provide the owner the benefits of VRF - lower operational costs per year, minimal or no duct work to purchase or install, tenant comfort with zoning while maintaining architectural integrity. No need to place any units outdoor.

Benefits & Features

  • Available in 208-230V with sizes ranging from 6 - 36 tons and in 460V with sizes ranging from 6 - 48 tons
  • AHRI 1230 certified
  • Installed indoors which allows a cleaner building exterior
  • Compact size to fit in small mechanical rooms
  • Front pipe connections allow easier installation
  • Stackable units (with field supplied racks)
  • Stainless steel plate heat exchanger for condenser water, with built in temperature sensor


See More


Specifications

Specifications
Voltage208-230V
Tonnage8.0 Ton
SeriesSingle Frame
Power Supply208-230V / 60HZ / 3Ø
BTU (Cooling / Heating)96,000 / 108,000
