Overview

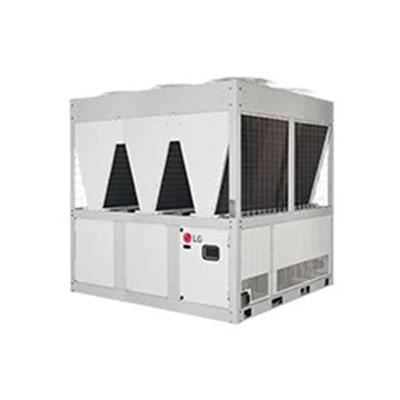

Inverter Scroll HP Chillers Series

Air Cooled

The LG ACHH Series Inverter Scroll Heat Pump Chiller is available in 3 frame sizes. The capacity range is from 17 TONS to 60 TONS in Cooling and 204 MBH to 716 MBH in Heating.

Overview

The LG ACHH Series Inverter Scroll Heat Pump Chiller is available in 3 frame sizes. The capacity range is from 17 TONS to 60 TONS in Cooling and 204 MBH to 716 MBH in Heating.

Benefits & Features

  • Condenser Coil Coating Rated at 10,000 HRS1
  • Variable Speed Condenser Fan Motors
  • Variable Speed Compressors
  • Cooling Operation from 5 °F to 125 °F
  • Heating Operating from -22 °F to 95 °F
  • Cooling Water Side Delta from 4 °F to 20 °F
  • Heating Water Side Delta from 4 °F to 20 °F
  • Cooling LWT from 14 °F to 68 °F
  • Heating LWT from 86 °F to 131 °F
  • 65 SCCR Standard on 460V-3PH2
  • 56 SCCR Standard on 208-230V-3PH2
  • Rated Sound Pressure at 30’ is 51-60 db(A)3
  • 100% Heating Capacity down to 32 °F
  • 120F LWT at 17 °F = 80% of Full Capacity


See More


Specifications

Specifications

Model Number

ACHH017HBAB
ACHH017VBAB
ACHH020HBAB
ACHH020VBAB
ACHH033HBAB
ACHH033VBAB
ACHH040HBAB
ACHH040VBAB
ACHH050HBAB
ACHH050VBAB
ACHH060HBAB
ACHH060VBAB
