Overview

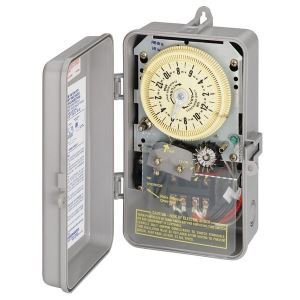

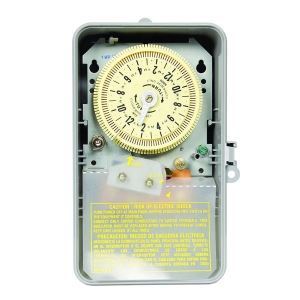

Model #T8805P101C, Sprinkler/Irrigation Time Switch with 14-Day Skipper

These irrigation timers are designed to permit one to 44 "ON" operations every 24 hours and provide watering increments down to 12 minutes or up to 20 hours and 45 minutes to ensure proper watering increments. These models also allow for biweekly scheduling with the convenient 14-day skipper for maximum water conservation and odd/even day compliance.

Features

  • Up to 44 ON/OFF settings per day
  • Water metering increments from 12 minutes to 20 hours and 45 minutes
  • 14-Day skipper enables irrigation to be omitted on selected day(s)
  • Provides for every other day operation
  • ON/OFF/AUTO switch enables shutdown during rainy days and extended watering during dry periods without disturbing the cycle set on dial
  • Type 3R plastic indoor/outdoor enclosure

Applications

  • Agriculture Feeders
  • Greenhouse Misting Control
  • Landscape Water Control


See More


Specifications

SPECIFICATIONS
Input Voltage Range(s)125 VAC, 60 Hz
Maximum ON/OFF Operations44
Mechanism TypeAnalog/Mechanical
Switch TypeSPST
Enclosure TypeIndoor/outdoor type 3R plastic
Minimum ON/OFF Times12 min
Maximum ON/OFF Times20 hours, 45 minutes
Warranty Period1-Year limited
Amps Per Pole15 A
California Proposition 65Lead
CAProp65MessagePlease see the Warning @ www.P65Warnings.ca.gov
Clock Motor Voltage125 VAC, 60 Hz
Country Of OriginMexico
CSA CertificationcCSAus
EPi CertificationscCSAus
HP1/2
Load Voltage125 VAC, 60 Hz
Motor (Three-Phase)1/2 HP, 120 VAC, 60 Hz
Number of Trippers Included12
Tripper Actuating Time12 min
operatingTemperatureMinCelsius-40
unitCartonHeightInch4.251
unitCartonWeightLbs2.75
productDepthInch4
unitCartonLengthInch11.751
operatingTemperatureMaxFahrenheit130
unitCartonWidthInch7.251
operatingTemperatureMinFahrenheit-40
productWidthMm165.1
productHeightMm254
productDepthMm101.6
productWidthInch6.5
productHeightInch10
operatingTemperatureMaxCelsius54
