Overview

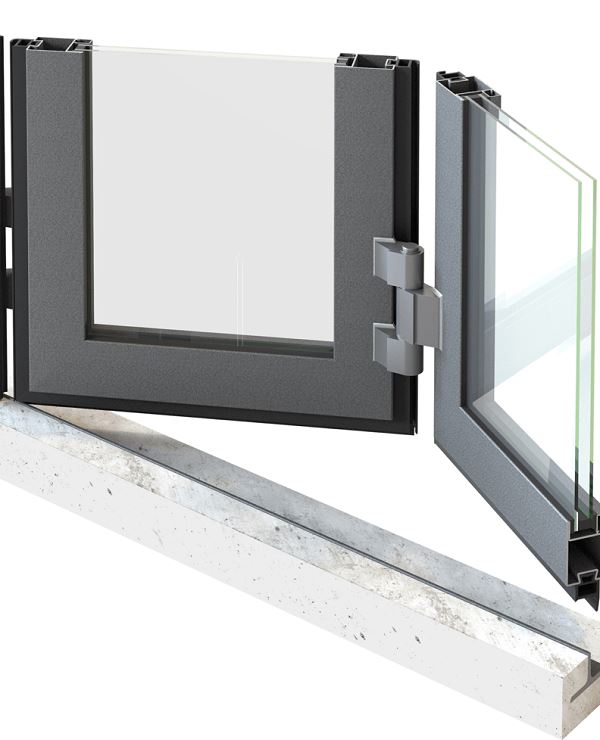

Folding and Sliding Doors

Jansen steel profiles create large-area and torsion-resistant door systems with slender frames. The profile and seal ranges are suitable for manual and automatic door systems. The Jansen folding and door systems are CE-compliant and fulfil the requirements of product standard EN 13241-1.

Product Details

Materials / surface finish

Uncoated steel, suitable for powder coating or stove-enamelling

Element types

  • Manual and automatic folding doors
  • Automatic sliding-folding doors
  • Manual and automatic sliding doors
  • Any choice of leaf subdivision
  • Folding door opening inwards or outwards
  • Fully or partially sheet metal clad

Equipment

  • Automatic drive
  • Anti-finger-trap versions
  • With insulating glazing or infill panels
  • With integrated espagnolette bolt

Special technical features

  • Construction depths 50, 60, 80 mm
  • Sliding doors can be supplied with top or bottom tracks
  • Installation behind, between or in front of the reveals

Test certificates, folding doors

  • CE marking in accordance with product standard EN 13241-1
    • Tightness against heavy rain up to class 3
    • Air permeability up to class 4
    • Resistance to wind load up to class 5
  • Operating forces and user safety in accordance with EN 12453

Test certificates, sliding door

  • CE marking in accordance with product standard EN 13241-1
    • Tightness against heavy rain up to class 3
    • Air permeability up to class 1
    • Resistance to wind load up to class 4
  • Operating forces and user safety in accordance with EN 12453
