RetroShield® Metal Building Insulation System for Retrofit & New Construction
Product Visualizer
RetroShield® is a revolutionary system developed for the metal building industry. Attractive, high performing and remarkably easy to install, RetroShield® is ideal for retrofitting and upgrading insulation systems in new and existing metal buildings. Patented Clip & Pin components provide an extraordinary one-pass installation that can dramatically reduce or eliminate down-time for the operation or building owner.
Our patented Clip & Pin components offer a mechanical attachment to the building frame without bands or other support mechanisms required by other systems on the market.
Compliance And Approvals- Meets or exceeds ASTM C1224, the Standard Specification of Reflective Insulation.
Features- Flexible, High Performance Reflective Double Bubble Insulation
- Reduces Thermal Bridging for Continuous Insulation
- Patented Clip & Pin Components for a Strong Mechanical Connection
- Variety of Clip & Pin Components
- No Glue or Support Cables Needed
- Designed to Fit a Wide Range of Metal Building Structures
- 66" width for Standard 5 On-Center Purlins
- Custom Widths Available

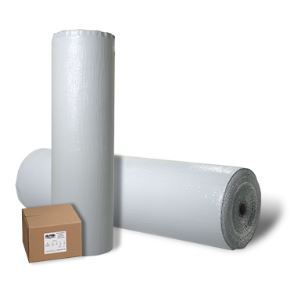

- One (1) Roll plus One (1) Box of Clips Covers Five (5) Sections
- Easy One Pass Installation
- Does Not Absorb Moisture
- Contains Anti-Oxidants that Reduce Impact of UV Radiation and Oxidation
- White-Reflective version Doubles as a Clean Finished Ceiling
- White-Reflective version Brightens Workspace
- Facing Customization Options
- Integral Tape Tab Option to Seal Seams
- Can be Used Alone or Back-Loaded with Mass Insulation
- Meets ASTM C 1224, Reflective Insulation
- Class A Flammability Rating
- National Network of Insulation Distributors
- National Network of Insulation Contractors
- Third-Party Verified Code Compliance, IAPMO ER 291
Benefits- Adds up to R16 without Additional Insulation
- Improves Thermal Performance & Comfort Year-Round
- Can be Combined with Mass Insulation for Increased Thermal Performance
- Reduces Heat Loss in the Winter
- Lightweight and Easy to Install in Retrofit Applications
- Saves Energy to Reduce Operating Costs
- Saves Labor
- Reduces Condensation
- Ideal for Commercial, Agricultural or Institutional Applications
- Lightweight and Easy to Install in Retrofit Applications
- Less Expensive than Spray Foam
- Patented Clip & Pin Components Designed for Wide Range of Metal Framing
- Meets Requirements for Projects Demanding Class A Flammability
- Integral Tape Tab Creates Aesthetically Finished Look
- National Network of Insulation Distributors
- National Network of Insulation Contractors
- Third-Party Verified Code Compliance, IAPMO ER 291
- 10-Year Warranty
