RF Shield SCIF Barrier

Product Visualizer

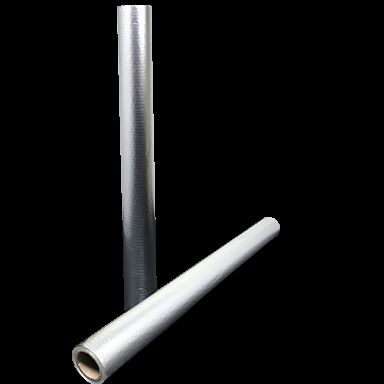

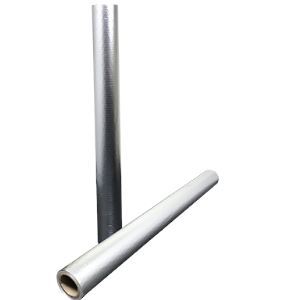

Fi-Foils RF Shield is a multi-layered specialty barrier with security shielding to block electromagnetic (EM) and radio frequency (RF) interference in order to protect highly sensitive information. Designed for Sensitive Compartmented Information Facility (SCIF) rooms, areas where a TEMPEST enclosure is required or anywhere frequency blocking is desired. RF Shield has two (2) outer layers of 99% Pure Aluminum Foil with an inner layer of Fiberglass reinforcing and Kraft paper, made in the USA.

RF Shield reduces sound attenuation and meets or exceeds minimum requirements for shielding effectiveness at 378 frequencies as tested by an accredited NSA Approved TEMPEST facility. RF Shield provides high performance frequency shielding with an average RF Attenuation of 73 dB.

Compliance and Approvals:

  • Meets ASTM F3057-16 Electromagnetic Shielding Effectiveness for Glazings
  • Meets ASTM D4935-99 Electromagnetic Shielding Effectiveness for Planar Materials
  • Meets or exceeds NSA minimum requirements with RF Attenuation
  • Meets ASTM E84 Flammability with Flame Spread 15, Smoke Developed 5

Features
  • Multi-Layered Security Shielding
  • Solid or Perforated Versions
  • Two (2) Outer Layers of 99% Pure Aluminum Foil
  • Inner Layer of Fiberglass Reinforcing & Kraft Paper
  • Third-Party Verified for Shielding Effectiveness, IEEE 299
  • Made in the USA
Benefits
  • Protects Highly Sensitive Information
  • Blocks Electromagnetic (EM) Interference
  • Blocks Radio Frequency (RF) Interference
  • Third-Party Verified for Shielding Effectiveness, IEEE 299
  • Tested at NSA Approved TEMPEST Facility
  • Average RF Attenuation of 73 dB
  • High Performance tested at 378 Frequencies
  • Class A Flammability Rating
  • Low-e, Reflective Surfaces Provide Thermal Performance when Exposed to Air Space


See More


Specifications

Specifications
Width of Roll51"
Lineal Footage118'
Coverage (sqft)500
Weight (lbs)14
Test MethodDescriptionResults
ASTM F3057RF Attenuation AverageSolid - 73 dB
Perforated - 73 dB
ASTM E408Thermal EmissivitySolid -0.03
Perforated - 0.03
ASTM E96Water Vapor PermeanceSolid - < 1.0
Perforated > 10
ASTM C665Mold ResistenceSolid - No Growth
Perforated - No Growth
ASTM E84Flammability RatingCLASS A
ASTM E84Flame SpreadSolid - 15
Perforated - 15
ASTM E84Smoke DevelopedSolid - 5
Perforated - 5
ASTM D774Bursting StrengthSolid - 40 psi
Perforated - 35 psi
ASTM C1136Puncture ResistanceSolid - 50 beach units
Perforated - 45 beach units
ASTM C1136Tensile StrengthSolid - 50 lbs/in width MD, 25 lbs/in width XD
Perforated - 45 lbs/in width MD, 25 lbs/in width XD
Reinforcing Tri-Directional FiberglassSolid - 2/in MD, 3/in XD
Perforated - 2/in MD, 3/in XD
Caliper/Thickness MicrometerSolid - 0.009 in
Perforated - 0.009 in
Accelerated Aging 30 Days @ 95% RH, 120°F (49°C)Solid - No Corrosion, No Delamination
Perforated - No Corrosion, No Delamination
