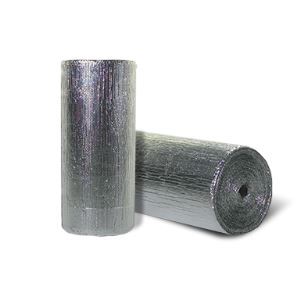

RBI Shield™ Multipurpose Reflective Bubble Insulation

Product Visualizer

RBI Shield™ is a multipurpose reflective bubble insulation for residential, commercial and institutional markets.

When used for a Sealed Crawl Space application provides an air and moisture barrier to improve indoor air quality and control pests.The system is a vapor retarder with added R-value to keep the floor warmer in the winter and cooler in the summer for greater efficiency and comfort. Subsequently, less load on HVAC units in some cases can prolong the life of these systems. Available in single and double bubble versions; standard widths of 16", 24", 48", 66" or 72" and 96" available through special order; square edge, staple tab or integrated tape tab; all rolls 125 ft length.

Compliance and Approvals:

  • Meets or Exceeds ASTM C1224
  • Meets International Building, Residential and Energy Codes
  • Meets Florida Building, Residential and Energy Conservation Codes

Compliance And Approvals
  • Meets ASTM C-1224-03 STANDARD SPECIFICATION OF REFLECTIVE INSULATION
Features
  • Flexible, Multi-Use Reflective Bubble Insulation
  • Single or Double Bubble Versions
  • Seven (7) Sizes Available to Fit a Wide Range of Applications
  • 16", 24", 48", 54", 66", 72", 96" widths available
  • Moisture Resistant Material
  • Contains Anti-Oxidants that Reduce Impact of UV Radiation and Oxidation
  • Ideal for New or Retrofit Applications
  • Residential, Commercial, Industrial Buildings
  • Ideal Applications include: HVAC Ducts, Crawl Spaces, Garage Doors, Metal & Post Frame Buildings
  • White-Reflective version Doubles as a Clean Finished Ceiling
  • White-Reflective version Brightens Workspace
  • Integral Tape Tab Option to Seal Seams
  • Can be Used Alone, Back-Loaded or Combined with Mass Insulation
  • Reduces Thermal Bridging for Continuous Insulation
  • Meets ASTM C 1224, Reflective Insulation
  • Class A Flammability Rating, Reflective-Reflective option
  • National Network of Insulation Distributors
  • National Network of Insulation Contractors
Benefits
  • Add up to R16
  • Reduces Heat Loss in the Winter
  • Improves Thermal Performance & Comfort Year-Round
  • Lightweight and Easy to Install in New and Retrofit Applications
  • Saves Energy to Reduce Operating Costs
  • Installer-Friendly, No Itchy Fibers
  • Ideal for Commercial, Agricultural or Institutional Applications
  • Reduces Condensation
  • Can be Used Alone or Back-Loaded with Mass Insulation
  • Less Expensive than Spray Foam
  • Meets Requirements for Projects Demanding Class A Flammability
  • Integral Tape Tab Options for Aesthetically Finished Look
  • National Network of Insulation Distributors
  • National Network of Insulation Contractors


See More


Specifications

Specifications
Width of RollCoverage sq. ft.
16"166
24"250
48"500
54"563
66"688
72"750
96"1000
Test MethodDescriptionResults
ASTM E-96Water Vapor Permeance0
ASTM D-3310CorrosivenessNo Evidence of Cracking or Pitting
ASTM C-1224-03, Section 9.5.2.4PliabilityNo Evidence of Cracking or Pitting
ASTM C-1224-03, Section 9.5.1.4Bleeding & DelaminationNo Evidencce of Bleeding or Delamination
ASTM E408-71 (2002)Thermal Performance Emissivity0.03
Reflectivity97%
Service Temperature50 degrees F to 180 degrees F
ASTM E-84 / 2599FlammabilityClass A
ASTM C-1338Mold & MildewPass
Reflective / ReflectiveFlame SpreadSingle Bubble: 0 / Double Bubble: 0
Smoke DevelopmentSingle Bubble: < 50 / Double Bubble: < 50
Reflective / PolyFlame SpreadSingle Bubble: 0 / Double Bubble: 0
Smoke DevelopmentSingle Bubble: < 50 / Double Bubble: < 50
ASTM D 638-01Tensile Strength MDSingle Bubble: 33.0 lb/in / Double Bubble: 38.9 lb/in
Tensile Strength TDSingle Bubble: 21.4 lb/in / Double Bubble: 27.6 lb/in
Tear Strength MDSingle Bubble: 2.6 lbf / Double Bubble: 6.9 lbf
Tear Strength TDSingle Bubble: 3.2 lbf / Double Bubble: 7.3 lbf
Compression StrengthSingle Bubble: 57.3 lbf / Double Bubble: 279 lbf
