VR Plus Shield™ Reflective Insulation - Multi-layer for Masonry Walls
Product Visualizer

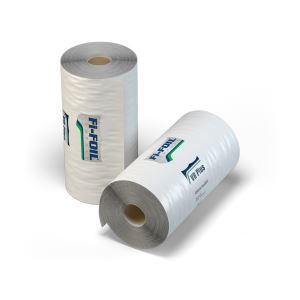

VR Plus Shield is a multi-layer reflective insulation for use on furred-out masonry walls. This unique insulation has multiple layers that separate when installed to create three reflective air spaces, with R-values up to R-7.1 on 1.5” furring. VR Plus is available in both a standard, non-perforated version that functions as a vapor retarder, and Hi-Perm, a perforated version that allows vapor transmission depending on the design of the building envelope and climate zone requirements. VR Plus is available with a staple tab for wood framing or with a tape tab for metal framing.
Compliance And Approvals- Meets ASTM C-1224 Standard Specification for Reflective Insulation
- Meets International & Florida Building & Energy Code Requirements
Features- Three (3) Layer Reflective Insulation
- Outer Layer of Natural Kraft Paper
- Inner Layers of Premium Grade Aluminum Foil
- Fi-Foil Expander Technology Separates Paper and Foil Layers
- Creates Three (3) Reflective Air Spaces
- Low-e Surfaces Reduce Radiant Heat Transfer
- Quick Installation with Staple or Tape Tab
- 16" or 24" widths
- Perforated or Solid
- 500 sf Rolls
- Use with Wood Furring or Metal Framing
- Easily Combine with Other Mass Insulation as part of a Wall System
- Add up to R7.1 with just 1-1/2" Enclosed Air Space
- Verified Recycled Content >20%
- Supports Sustainable Design
- Class A Flammability Rating
- Meets ASTM C 1224, Reflective Insulation
- Meets International Building Codes (IBC)
- Meets International Residential Codes (IRC)
- Meets International Energy Conservation Codes (IECC)
- Meets Florida Building Codes (FBC)
- Meets Florida Residential Codes (FRC)
- Meets Florida Energy Conservation Codes (FECC)
- Supports Sustainability Goals
- National Network of Insulation Distributors
- National Network of Insulation Contractors
Benefits- Adds up to R7.1
- Lightweight 500 sqft Rolls
- Easy to Handle, Installs Faster
- Save Labor
- Save Warehouse Space
- Save on Material & Shipping
- High Performance and Compact
- Provides for More Living Area Square-Footage for Increased Marketability
- Lowest Cost per R value of All Masonry Wall Insulation
- Low-e Reflective Surfaces Improve Performance of Enclosed Air Space
- Lowers HERS and Other Energy Rating Indexes (ERI)
- More Comfortable Buildings
- Better Energy Efficiency
- 10-Year Warranty
- National Network of Insulation Distributors
- National Network of Insulation Contractors
