Overview

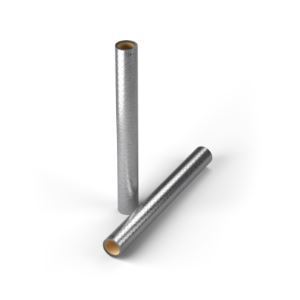

SkyFlex Flexible Sheet Air Barrier

Product Visualizer

SkyFlex is a tough, flexible air barrier for use in residential and commercial building applications. The product consists of two layers of aluminum deposited to a layer of woven polyethylene. When exposed to air films or enclosed air spaces in building cavities, SkyFlex’s low-emittance exterior layers reduce radiant heat transfer.

Fast Facts

• Available for residential and commercial applications
• Flexible for fast and easy installation
• Adds R-Value to building envelope Economy and high-performance options
• Available in 500 square foot rolls in 48" or 51" widths

Features

  • Premium Flexible Sheet Air Barrier
  • Low-e Surfaces Reduce Radiant Heat Transfer
  • Tough, Puncture-Resistant Material Wont Tear
  • Vapor Transmitting version consists of Superior Strength CLAF® fabric reinforced with Metalized Film
  • Solid version consists of Superior Strength Inner Woven Layers with Metalized Film
  • Provides R value with Enclosed Air Spaces
  • Applications include: Bonus Room Knee Walls, Behind Tubs & Showers, Fireplace & Duct Chases, Elevator Shafts, Stair Wells, Between Multi-Family Units, Between Garage & Living Spaces
  • 48" or 51" widths
  • 500 sf Rolls
  • Easy to Handle
  • Installs 2x Faster than Rigid Air Barriers
  • 1 Roll = 16 Sheets of 4 ft x 8 ft Board Product
  • Wider Rolls Reduce Seams
  • Meets ASTM C 2178 Air Permeability
  • Class A Flammability Rating
  • Meets International Building Codes (IBC)
  • Meets International Residential Codes (IRC)
  • Meets International Energy Conservation Codes (IECC)
  • Meets Florida Building Codes (FBC)
  • Meets Florida Residential Codes (FRC)
  • Meets Florida Energy Conservation Codes (FECC)
  • Supports Sustainability Goals
  • National Network of Insulation Distributors
  • National Network of Insulation Contractors
  • Third-Party Verified Code Compliance, IAPMO UEL 5003

Benefits

  • Improves Thermal Performance of Building Envelope
  • Significantly Improves Comfort in Living Areas with Exposed Walls
  • Reflects Heat Away to Keep Home Cooler in the Summer
  • Reduces Heat Loss to Keep Home Warmer in the Winter
  • Vapor Transmitting version allows exposed walls to dry to reduce risk of moisture accumulation
  • Solid version is a Class I Vapor Retarder
  • 1 Roll = 16 Sheets of 4 ft x 8 ft Board Product
  • 1 Pallet covers as much as 2 pallets of Rigid Board
  • Fewer Seams Reduces the Chance for Air Gaps
  • Overlap Does Not Create the Thickness Problems of Rigid Board Barriers
  • Easier for Installers to Carry
  • Easier to Fit and Install in Small Spaces vs- Rigid Board
  • Installs with a Staple Hammer
  • Installs 2x Faster than Rigid Air Barriers
  • Save Labor
  • Save Warehouse Space
  • Save on Material & Shipping
  • Secure Fiberglass Batts for Better Performance Over Time
  • Increase R value and Energy Efficiency When Used with Other Insulation such as Batt, Gypsum or Spray Foam
  • Adds R1.4-R1.7 with one (1) Side Exposed to Attic
  • Adds R2.0-R2.9 with 3/4" Enclosed Air Space
  • National Network of Insulation Distributors
  • National Network of Insulation Contractors
  • Third-Party Verified Code Compliance, IAPMO UEL 5003
