Overview

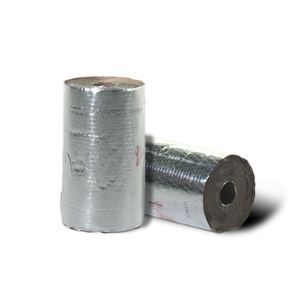

Silver Shield™ Attic Radiant Barrier - Multi-Layer

Product Visualizer

Fi-Foil’s Silver Shield is an insulating product composed of multiple layers of low emittance (low-e) materials designed to significantly reduce radiant heat transfer. The inside layer is a metalized polymer. The outside layer is reinforced aluminum foil kraft paper bonded with a fire retardant adhesive. The layers expand when installed to form a reflective air space to provide enhanced thermal performance and protect the low emittance surface from the performance reducing effects of dust accumulation. Since metalized and foil-based aluminum products have a near zero water vapor permeance, Silver Shield is perforated to allow water vapor transmission.

Compliance And Approvals
  • Meets or exceeds ASTM C1313
  • Meets International Building, Residential and Energy Codes.
  • Meets Florida Building, Residential and Energy Conversation Codes.
Features
  • Multi-Layer, Low-e Highest Performing Radiant Barrier
  • Reflects 97% of Radiant Heat at the Roof
  • Outer Layer of Kraft Paper Reinforced with Aluminum
  • Inner Layer of Metalized Polymer
  • Fi-Foil Expander Technology Separates Layers
  • Layers Expand to Form Two (2) Reflective Air Spaces
  • Strong and Tear Resistant
  • Perforated to Allow Vapor Transmission
  • Reflective layers are Designed to be Protected from Dust Accumulation
  • Perforated to Allow Vapor Transmission
  • Low-e Surfaces Reduce Radiant Heat Transfer
  • Quick Installation with Staple Tab
  • 16" 24" and 30" Widths
  • 500 sf Rolls
  • 20-Year Transferrable Warranty
  • Verified Recycled Content >20%
  • Class A Flammability Rating
  • Meets ASTM C 1313, Sheet Radiant Barriers
  • DOE Supported Performance and Results for Radiant Barriers (RB)
  • Florida Solar Energy Center Supported Performance and Results for RBs
  • Meets International Building Codes (IBC)
  • Meets International Residential Codes (IRC)
  • Meets International Energy Conservation Codes (IECC)
  • Meets Florida Building Codes (FBC)
  • Meets Florida Residential Codes (FRC)
  • Meets Florida Energy Conservation Codes (FECC)
  • Supports Sustainability Goals
  • National Network of Insulation Distributors
  • National Network of Insulation Contractors
Benefits
  • Keeps Homes Cooler in the Summer and Warmer in the Winter
  • Proven Performance Reduces Attic Temperatures up to 30°F in the Summer
  • Reduces Heat Loss in the Winter
  • Provides R value to Increase thermal performance of Attic Insulation
  • Increases Comfort of Living and Work Spaces in All Seasons
  • Improves HVAC Ducts and System Performance up to 50%
  • Reduces Cooling Costs up to 16% in the Summer
  • Reduces Utility Peak Load Demand
  • Easy to Install
  • Price Competitive
  • Considerably Less Expensive than Spray Foam
  • 30% Reduction in Heat Flow to Conditioned Space vs- Liquid Applied Low-e Coating
  • 17% Reduction in Heat Flow to Conditioned Space vs- Deck Applied Radiant Barrier
  • 4x More Effective than Adding Additional Insulation (during Peak loads)
  • Meets Attic Radiant Barrier Requirements for Energy Star Homes
  • Lowers HERS and Other Energy Rating Indexes (ERI)
  • More Comfortable Buildings
  • Better Energy Efficiency
  • 20-Year Transferrable Warranty on Material & Labor
  • Supports Sustainable Design Goals
  • National Network of Insulation Distributors
  • National Network of Insulation Contractors


See More


Specifications

Specifications
Furring/Stud Spacing16" O.C24 " O.C30" O.C
Width Expanded17.5"25.5"31.5"
Diameter8"10"6"
Lineal Footage375'250'100'
Coverage500 sq. ft.500 sq. ft.250 sq. ft
Weight26 lbs22 lbs10 lbs
Test MethodDescriptionResults
ASTM E-96Water Vapor Permeance Hi-Perm5.00 perms
ASTM E-84Flammability Flame Spread Rating0
ASTM E-84Smoke Development Rating0
ASTM E-84Interior Wall & Ceiling Finish ClassificationClass A
ASTM C-1371Thermal Emittance 1st Layer MET PVC Metal Side0.04
ASTM C-13712nd Layer Foil Laminate0.03
ASTM STP 1116R-values for a Reflective Air Space Heat Flow Up at 45º (Enclosed 3/4” air space)R-2.0
Heat Flow Down at 45º (Enclosed 3/4” air space)R-3.3
Heat Flow Horizontal (single low-e surface)R-1.7
Heat Flow Horizontal (multiple low-e surfaces with an enclosed 3/4” air space)R-4.6
ASTM D-3310CorrosivityPass
ASTM C-1224/Section 9 Adhesive PerformanceBleedingNone
DelaminationNone
PliabilityNo signs of cracking or delamination
ASTM D-2261Tongue Tear TestMD 1.77 CD 2.32
ASTM C-1338Mold & MildewPass
