Overview

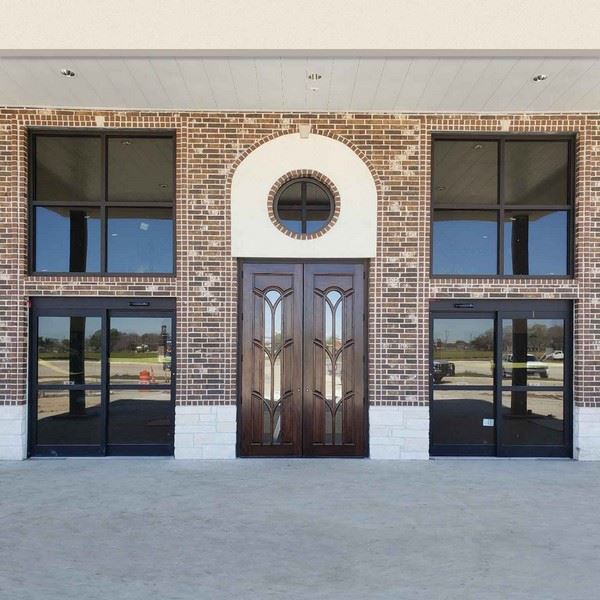

5400 Series Hurricane Rated Sliding Door

The Record 5400 Large Missile Impact Series and the 5500 Wind Load Series have both been tested to design loads of +65 PSF / -70 PSF (Miami-Dade County, Florida NOA 21-0630.07 ), passing rigorous Florida State and Dade County criteria. Both offer the same fluid, quiet and reliable operation for which the 5100 Series is known.

Features

  • Two (2) Year Warranty
  • Exclusive S.M.A.R.T. Panel (Self-Monitoring Accurate Reporting Technology)
  • Narrow Stile Design
  • Steel reinforced doors and panel

Benefits

  • Reduces unnecessary service calls and callbacks
  • Offers clean aesthetic site lines and provides maximum natural light
  • Designed to withstand category 5 force winds
  • Single motion release for emergency egress
  • No lock required on SO panels (standard on both impact and non-impact models)

Options

  • Exit devices offer highly efficient emergency egress
  • Programmable fail safe or fail secure electric lock
  • Battery backup power supply good for one cycle

Testing/Certifications

  • Complies with Miami-Dade County, Florida NOA 21-0630.07 exp date 3/17/25
  • The Record 5400 Series has been tested to design loads of +65 PSF/-70 PSF
Technical specifications
  • Motor: low energy/high efficiency 1/8 HP
  • Input Power: 120v AC / 60Hz / 1 phase / 15amp
  • Max Overall Frame Width: 84" (single slide); 168" (bipart)
  • Max Overall Frame Height: 96”
  • Header Size: Height: 7 ¾” / Depth 4 ½”
  • Standard colors: clear or dark bronze anodized
  • Design Loads (PSF): +65 PSF / -70 PSF
  • Opening/Closing Speed: adjustable
  • Open braking force & torque: adjustable
  • Failure detection & auto reset: yes
  • Control board self-diagnosis: yes
  • Carrier wheels: 4 wheels per panel
  • Operating Conditions: -40 to +130 Fahrenheit
  • Switch: S.M.A.R.T. Panel
  • Recommended Max Door Weight: consult factory
  • Electro-Mechanical Locking Device: Fail safe / Fail secure
  • Impact Levels: LMI (Large Missile Impact)
  • Florida & DADE approvals- Miami-Dade County, Florida NOA 21-0630.07
  • Certifications: ANSI/BHMA A156.10, UL325, ICC A117.1, ICC/IBC (International Building Code), UL/CUL (Approved for use in Canada) NFPA 70 (National Electrical Code), NFPA 101 (Life Safety Code)
