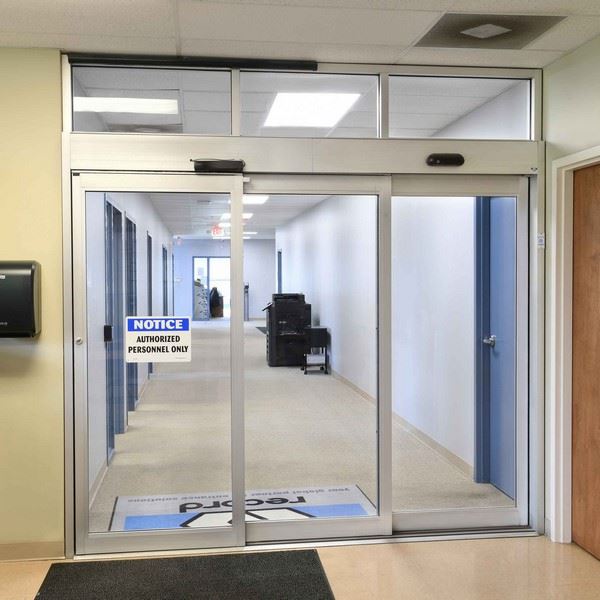

5100T Automatic Sliding Door
The 5100 Series Sliding Door System provides silent microprocessor driven gear reduction belt drive operation for years of dependable service. This Swiss and American designed sliding door has the latest in electronic assembly and software programming and comes with a lifetime warranty for the door track system. The 5100 Series sliding door is not only available in all ANSI configurations, but can be applied to all types of specialty applications.
Offering a wide breadth of configurations and functions, the 5100 Series assures the architect and building owner a wide array of capabilities in ensuring the most safe, secure and attractive entranceway available by choosing from the following options:
Different operating modes
- Automatic mode with full opening width
- Automatic mode with reduced opening width
- Automatic mode in one-way (exit only) for traffic control
- Adjustable reduced opening mode
- Continuously open: door opens and remains in open position; either full open or reduced opening width
- Off mode: door can be moved by hand
- Safety sensors (self-monitoring holding beams) in the clear opening of the door prevent the door from shutting if persons or objects are in the detection zone.
- Safety automatic reversing mechanism: if the door leaves are inhibited when closing, they are immediately re-opened (automatic reverse 2-step adjustable). If the door leaves are hindered when opening, they are immediately stopped.
- The position of the obstacle is stored and will be slowly approached during the next door movement.
- Even in the case of power failure, the emergency fail close or the emergency opening is assured by the optional emergency power options.
- Sidelite protection - Additional sensors located above the opening path of the door will slow the opening if a person or object will inhibit the door opening normally.
- Emergency battery: in the case of power failure, the optional battery back-up device will perform flawlessly (including all sensing devices) for hours. When the battery's capacity is low, the door slides to a pre-determined position (open, shut or locked). In the case of continued power failure, the shut and locked door can still be opened automatically by a key-operated impulse.
- Electro-mechanical locking device concealed in the operator casing.
- Systems for locking device surveillance and alarm.
- Door leaf surveillance.
- Interlock control: Continuous interlock control or only selectable by external contact (key-operated contact or building services control system).
- Communication module for data exchange with a higher-level building services control system.
- Integrated support for hydraulic closers in both SX (slide/swing) and SO (swing sidelite) panels.
- Built into the top rail, door closers are available when specified, to ensure the door closes and remains operable after emergency breakout egress.
- Recessed panic hardware is available for full-breakout and fixed panel applications which will comply with all existing exit codes.
Record USA recognizes the importance of the Green initiative. Disposing of items that could be recycled diminishes energy, water, and natural resources that could be saved by recycling. Creating an environment of cultural responsibility has been a focus of ours over the past several years and will remain as such for the foreseeable future.
- Standby load of 25 watt and a maximum load of 100 watt
- Traffic Sensitive "Smart" opening logic reduces air infiltration
- Manufactured with recycled materials and without hard to dispose of materials.
- Motor: low energy/high efficiency 1/8 HP, 100 watts
- Input Power: 120v AC / 60Hz / 1 phase / 15amp
- Standard colors: clear or dark bronze anodized
- Opening/Closing Speed: adjustable
- Open braking force & torque: adjustable
- Failure detection & auto reset: yes
- Control board self-diagnosis: yes
- Carrier wheels: 4 wheels per panel
- Operating Conditions: -40 to +130 Fahrenheit
- Header Size: Height: 7 ¾” / Depth 4 ½”
- Telescopic Single standard size: 7' wide to 12' wide / 91" high
- Telescopic Bi-part standard size: 8' wide to 14' wide / 91" high
- Switch: S.M.A.R.T. Panel
- Adjustable end-stop: yes
- Recommended Max Door Weight: consult factory
- Certifications: ANSI/BHMA A156.10 and UL325
