Stainless Steel 60" x 20" x 8" Wall Hung Multiple Station Hand Wash Sink Kit - EWMA6020C

Elkay has been a trusted name in stainless steel since 1920. We are proud to be America's No. 1 selling kitchen sink company. In addition, we offer prep, bar, bath and laundry sinks. Elkay commercial sinks can be found in public spaces such as classrooms, office buildings, health care facilities, parks and recreation areas and more. Available in ADA depths.

Features

  • 14-gauge, Type 304 stainless steel.
  • 1/4" coved corners.
  • 1-1/2"-wide, inward-sloping top-channel rims with 2" flat front apron.
  • 10" high, full-length backsplash.
  • Square rim corners.
  • 3-1/2" drain opening.
  • Exposed surfaces are blended by hand to a uniform lustrous finish.
  • Furnished with wall hanger and stainless steel support brackets.

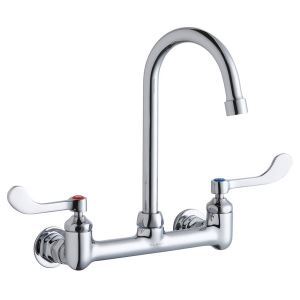

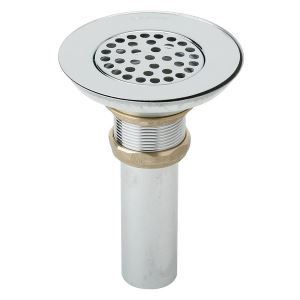

  • Kit includes EWMA6020 sink, three LK940GN05T4H faucets and one LK18B drain; conveniently packaged together to save you time.


See More


Specifications

Specifications
MaterialStainless Steel
Installation TypeWall
Gauge14
Number of Bowls1
Minimum Cabinet Size0"
DimensionsL: 60"
W: 20"
H: 25-3/4"
Bowl 1 DimensionsL: 57"
W: 16-1/2"
H: 8"
Drain Size3-1/2"
Application TypeScrub + Handwash
Shipping DimensionsL: 64-3/16"
W: 22-3/8"
H: 21-7/8"
Shipping Weight103 LBS
Included with ProductEWMA6020 sink
three LK940GN05T4H faucets
one LK18B drain
Ships In Multiple BoxesYes
Made or Assembled USAbuilt
ADANo
Code Compliance SinksASME A112.19.3/CSA B45.4
Buy American Act
Code Compliance FaucetsADA & ICC A117.1
ASME A112.18.1/CSA B125.1
CEC
NSF 372 (lead free)
NSF 61
Code Compliance AccessoriesASME A112.18.2/CSA B125.2
