Overview


Quartz Luxe 15-3/4" x 15-3/4" x 7-11/16" - ELX1616MA0

ELX1616MA0 - Elkay Quartz Luxe 15-3/4" x 15-3/4" x 7-11/16", Single Bowl Dual Mount Bar Sink, Maraschino

Elkay Quartz Luxe sinks are exceptionally strong and silky smooth to the touch. The composite sink comes in deep, rich colors that make a statement, including red, blue, brown, black, gray and white. These durable kitchen, prep, bar and laundry sinks are constructed through a proprietary manufacturing process that combines natural quartz with high-performance, UV-stable acrylic resins.

  • DUAL MOUNT: Versatile design allows the sink to be installed as a drop-in or undermount.
  • MARASCHINO: Vibrant red makes every day a celebration.
  • SUPERIOR STRENGTH: Organic fibers offer extra impact resistance; fiberglass mat molded onto underside of the sink reinforces the most used work zone.
  • RICH COLOR, HEAT SAFE, EASY CLEAN: Match sink to your décor; vibrant color won't fade; heat safe to 535°F; wash with damp cloth and soapy water.
  • HYGIENE PROTECTION: Microfine quartz material is nonporous; ultrasmooth surface repels dirt, food, liquid and stains; prevents the spread of bacteria.
  • QUIET: Material is naturally sound-deadening, minimizing sound and vibration for a quieter time at the sink.
  • OFFSET DRAIN: Drain placement provides more usable space on the bottom of the sink and in the cabinet below.
  • DRAIN OPENING: Sink drain opening measures 3-1/2".
  • CABINET SIZE: Minimum cabinet size for this sink is 21".


See More


Specifications

PRIMARY UNIT OF MEASUREEACH
UNIT WEIGHTPOUNDS
CARTON LENGTH20.03
CARTON WIDTH20.03
CARTON HEIGHT12.70
UNIT DIMENSIONSINCH
UNIT VOLUME2.9486
COUNTRY OF ORIGINDEU
UPC094902090948
GTIN00094902090948
MASTER PACK QUANTITY1
ITEM WEIGHT WITHOUT PACKAGING13
FAMILY OR BASE GROUPELX1616
ADANo
MADE IN USA COMPLIANTNO
BUILT IN THE USANo
SHIPPING WEIGHT18
SHIPPING DIMENSIONS20 x 20 x 12-11/16

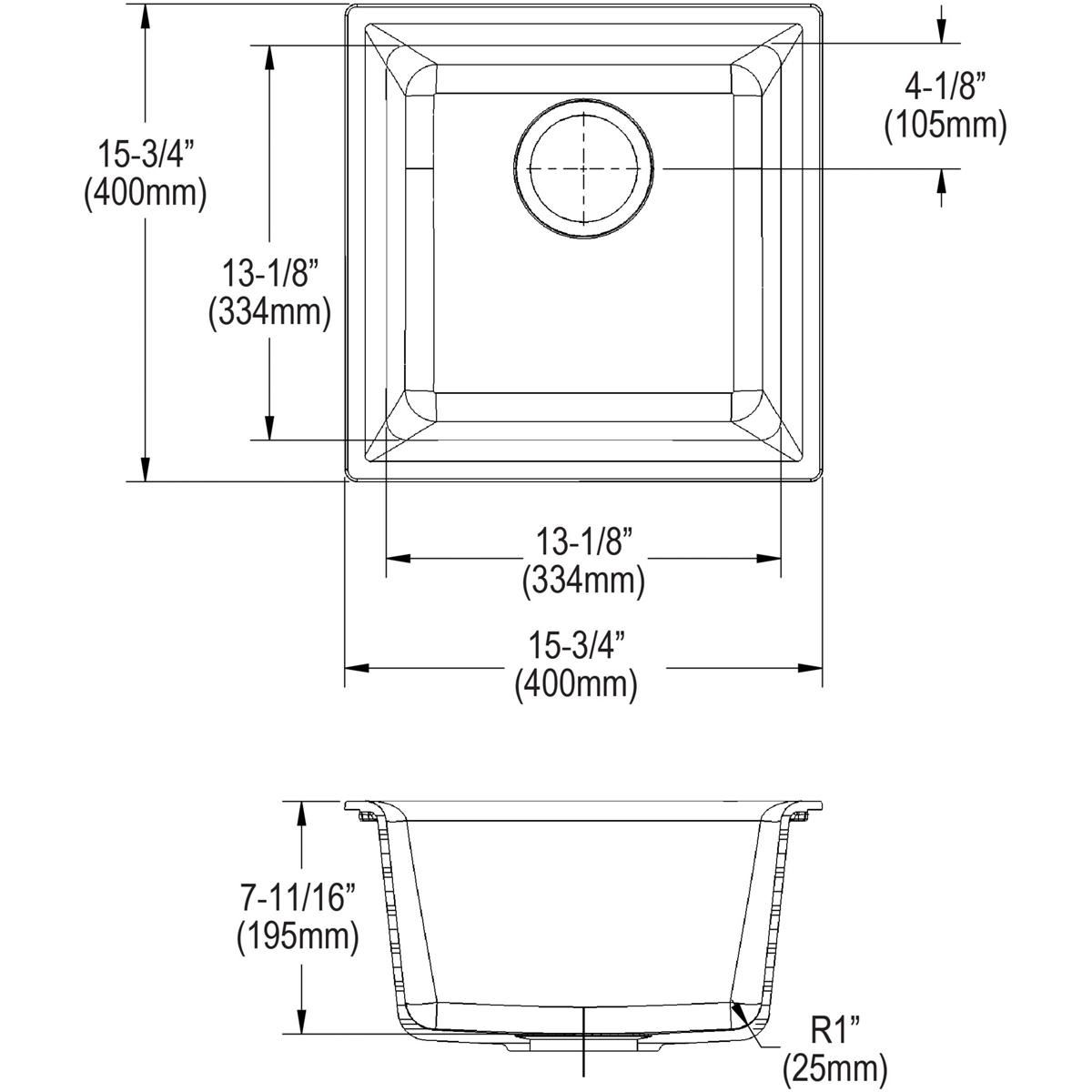

PRODUCT DIMENSIONS15-3/4 x 15-3/4 x 7-11/16
PRODUCT LENGTH15.7480
PRODUCT WIDTH15.7480
PRODUCT HEIGHT7.6750
SINK DEPTH7.675
BRAND LOGOElkayShape_Black
SPECIAL NOTERecommended Bottom Grid: LKOBG1616SS; Recommended Drains: LKQS35MA, LKQD35MA, LK99
MARKETING MATERIAL TYPEQuartz
MARKETING FINISH NAMEMaraschino
INSTALLATION TYPE SINKSDrop-in, Undermount
NUMBER OF BOWLS1
BOWL 1 LENGTH13.15
BOWL 1 WIDTH13.15
BOWL 1 DEPTH7.6750
DRAIN SIZE BOWL 13.5
DRAIN PLACEMENT BOWL 1Rear Center
MINIMUM CABINET SIZE21
PRODUCT COMPLIANCE SINKSCSA B45.5/IAPMO Z124
CERTIFYING AGENCYIAPMO (cUPC_sinks)
