Overview


Stainless Steel 90" x 23" x 26" - EWSF39026SACC

EWSF39026SACC - Elkay Stainless Steel 90" x 23" x 26", Wall Hung Triple Station Surgeon Scrub Sink Kit

Elkay has been a trusted name in stainless steel since 1920. We are proud to be America's No. 1 selling kitchen sink company. In addition, we offer prep, bar, bath and laundry sinks. Elkay commercial sinks can be found in public spaces such as classrooms, office buildings, health care facilities, parks and recreation areas and more. Available in ADA depths.

  • 16-gauge, Type 304 stainless steel.
  • Keyed access door(s) to hide plumbing.
  • 4" high, full-length backsplash.
  • Sound-deadening material minimizes sound and vibration for a quieter time at the sink.
  • Coved corners, wall hanger and full enclosure.
  • Exposed surfaces are polished to a uniform lustrous finish.
  • 3-1/2" drain opening.
  • Includes two removable clear acrylic partitions.
  • KIT INCLUDES: EWSF39026 sink, three LKB721C AC/battery-powered sensor faucets; three LK723 mixing valves, and three LK18B drains.

EWSF39026 sink, three LKB721C sensor faucets AC plug-in / 12 AA batteries; three LK723 mixing valves, three LK18B drains


See More


Specifications

PRIMARY UNIT OF MEASUREEACH
UNIT WEIGHTPOUNDS
CARTON LENGTH95
CARTON WIDTH28
CARTON HEIGHT32
UNIT DIMENSIONSINCH
UNIT VOLUME49.2593
COUNTRY OF ORIGINPACKAGE
UPC094902303123
GTIN00094902303123
MASTER PACK QUANTITY1
ADANo
MADE IN USA COMPLIANTNO
BUILT IN THE USANo
SHIPPING WEIGHT243
SHIPPING DIMENSIONS95 x 28 x 32

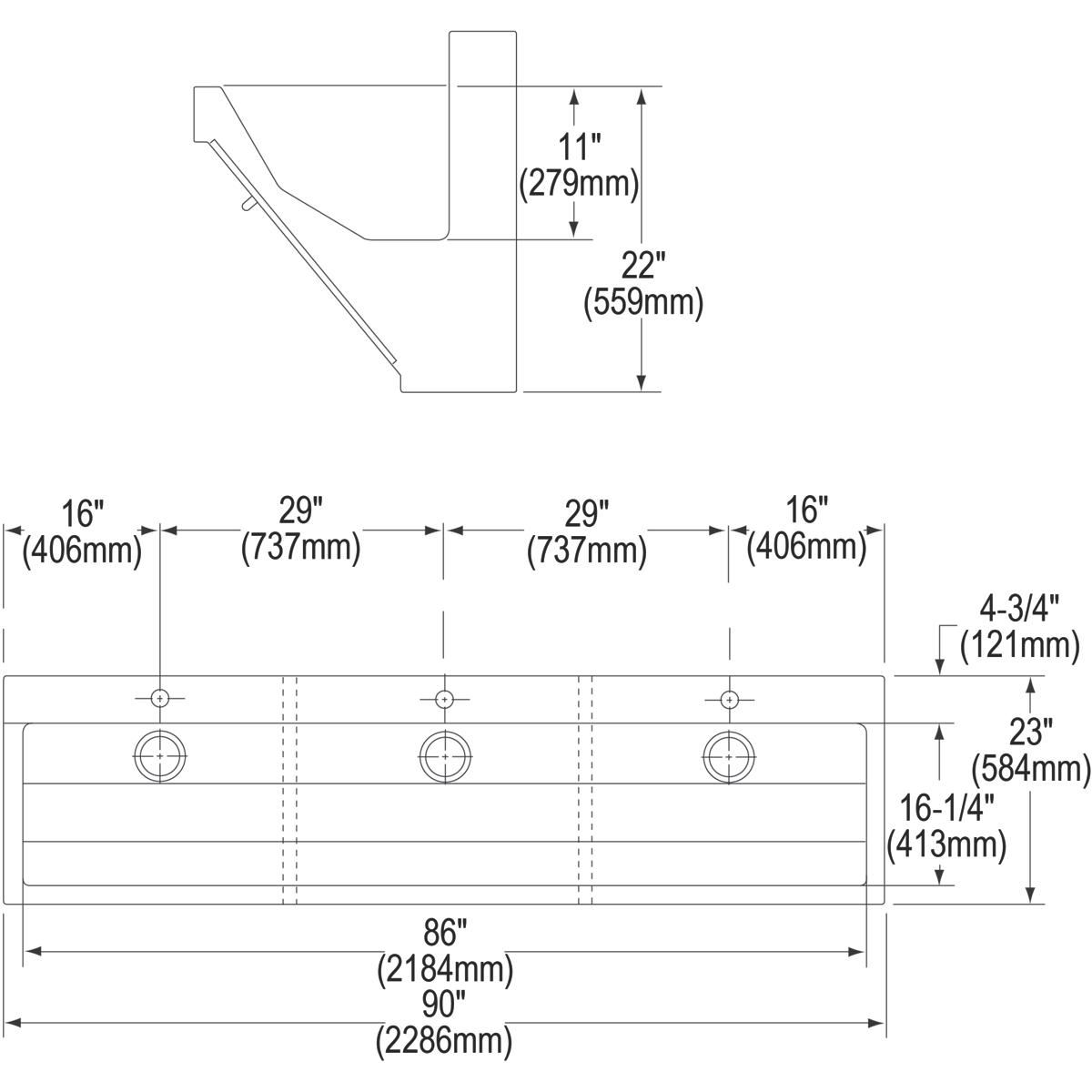

PRODUCT DIMENSIONS90 x 23 x 26
PRODUCT LENGTH90
PRODUCT WIDTH23
PRODUCT HEIGHT26
SINK DEPTH11
BRAND LOGOElkayShape_Black
MARKETING MATERIAL TYPEStainless Steel
MARKETING FINISH NAMEBuffed Satin
NUMBER OF BOWLS3
BOWL 1 LENGTH28
BOWL 1 WIDTH16.25
BOWL 1 DEPTH11
DRAIN SIZE BOWL 13.5
BOWL 2 LENGTH28
BOWL 2 WIDTH16.25
BOWL 2 DEPTH11
DRAIN SIZE BOWL 23.5
BOWL 3 LENGTH28
BOWL 3 WIDTH16.25
BOWL 3 DEPTH11
DRAIN SIZE BOWL 33.5
SOUND DEADENINGFull spray sides and bottom with Bottom only pads
FAUCET HOLE CONFIG OF SINK1
MINIMUM CABINET SIZE0
PRODUCT COMPLIANCE SINKSASME A112.19.3/CSA B45.4
PRODUCT COMPLIANCE ACCESSORIESASME A112.18.2/CSA B125.2
PRODUCT COMPLIANCE FAUCETSADA & ICC A117.1, ASME A112.18.1/CSA B125.1, NSF 61, NSF 372 (lead free)
CERTIFYING AGENCYIAPMO (cUPC_sinks), IAPMO (thru supplier)
