Elkay -Outdoor EZH2O Bottle Filling Station Wall Mount - LK4409BFBLU

DOWNLOADS

Outdoor Bottle Filling Stations ideal for educational campuses and recreational areas. Powder-coated exterior over a corrosion-resistant stainless steel type-316 base material to provide protection from the elements.


Category: bubblers | dispensers | drinking fountains...

MasterFormat: Plumbing Fixtures | Drinking Fountains and Water Coolers | Drinking Fountains


View Product Details From Manufacturer


Elkay
2222 Camden Court
Oak Brook, IL 60523
Tel: (630) 574-8484

AETeam@elkay.com

https://www.elkay.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview

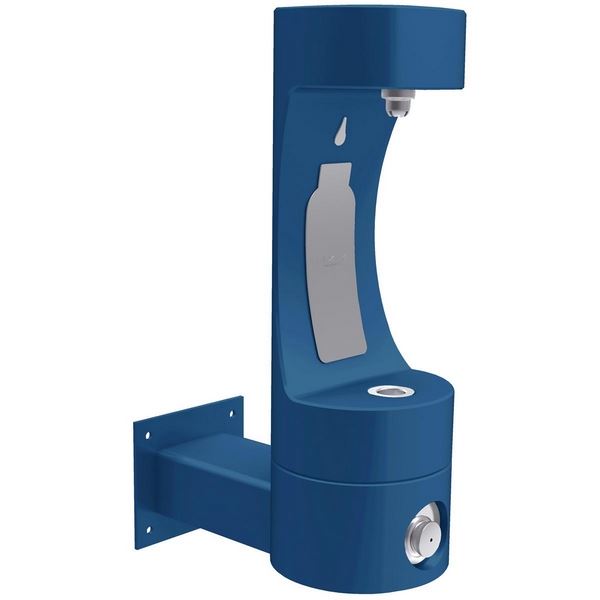

Outdoor EZH2O Bottle Filling Station Wall Mount - LK4409BFBLU

LK4409BFBLU - Elkay Outdoor EZH2O Bottle Filling Station Wall Mount, Bi-Level, Non-Filtered Non-Refrigerated, Blue

Outdoor Bottle Filling Stations ideal for educational campuses and recreational areas. Powder-coated exterior over a corrosion-resistant stainless steel type-316 base material to provide protection from the elements.

  • Corrosion-resistant base material provides the ultimate protection from the elements.
  • Heavy-gauge construction with tamper-resistant screws that resist stains and corrosion.
  • Vandal-resistant bubblers feature chrome-plated integral hood guard to prevent contamination from other users, airborne deposits and tampering.
  • Bottle filler meets ADA guidelines for reach range; fountain meets ADA guidelines for wheelchair access.
  • Laminar flow provides clean fill with minimal splash.
  • Available in 12 stunning finishes.
  • Ideal for outdoor use.


See More


Specifications

PRIMARY UNIT OF MEASUREEACH
UNIT WEIGHTPOUNDS
CARTON LENGTH48
CARTON WIDTH40
CARTON HEIGHT30
UNIT DIMENSIONSINCH
UNIT VOLUME33.3333
COUNTRY OF ORIGINUSA
UPC094902109558
GTIN00094902109558
MASTER PACK QUANTITY1
ITEM WEIGHT WITHOUT PACKAGING102.60
FAMILY OR BASE GROUPLK4409BF
ADAYes
MADE IN USA COMPLIANTNO
BUILT IN THE USAYes
SHIPPING WEIGHT202.6
SHIPPING DIMENSIONS48 x 40 x 30
PRODUCT DIMENSIONS21-1/4 x 32-7/8 x 38-7/16
PRODUCT LENGTH21.25
PRODUCT WIDTH32.85
PRODUCT HEIGHT38.46
BRAND LOGOElkay_BrandLogo
MARKETING FINISH NAMEBlue
INSTALLATION LOCATIONOutdoor
BUBBLER STYLEVandal Resistant
CHILLING OPTIONSNon-refrigerated
MOUNT TYPE DRINKING WATERWall Mount (On Wall)
NUMBER OF STATIONS3
VOLTAGENo Electrical Required
FEATURES DRINKING WATER PRODS316 Stainless, Laminar Flow, Heavy Duty Vandal Resistant
ACTIVATION TYPEMechanical Bottle Filler Button With Mechanical Front Bubbler Button
PRODUCT COMPLIANCE DRINK WATERADA & ICC A117.1, ASME A112.19.3/CSA B45.4, Buy American Act, GreenSpec, NSF 61, NSF 372 (lead free)
CERTIFYING AGENCYWQA
