Elkay® -ezH2O Bottle Filling Station - LZWS-EDFPBM114K

DOWNLOADS

The Elkay EZH2O® Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Complete water station including single fountain with integral bottle filler.


Category: accessible products | bottled water dispensers | dispensers...

MasterFormat: Plumbing Fixtures | Drinking Fountains and Water Coolers



Elkay®
1333 Butterfield Road
Suite 200
Downers Grove, IL 60515
Tel: (800) 476-4106

CustCare@Elkay.com

https://www.elkay.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview

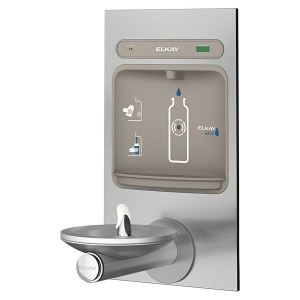

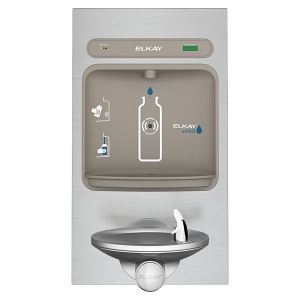

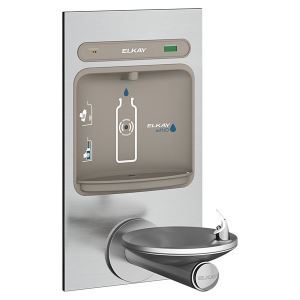

ezH2O Bottle Filling Station - LZWS-EDFPBM114K

The Elkay EZH2O® Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Complete water station including single fountain with integral bottle filler. Sanitary no-touch sensor activation with automatic 20-second shut-off timer.

Features

  • Touchless, sensor activation (bottle filler) designed for easy use; easy-to-operate push-button activation (bubbler).
  • Fill rate is 1.5 GPM.
  • Visual filter monitor with LED filter status indicator for when filter change is necessary.
  • The 3,000-gallon filter is certified to NSF 42 and 53 for lead, Class 1 particulate, chlorine, taste and odor reduction.
  • Green Ticker™ informs user of number of 20 oz. plastic water bottles saved from waste.
  • Laminar flow provides clean fill with minimal splash.
  • Silver ion antimicrobial protection on key plastic components to inhibit the growth of mold and mildew.
  • Real drain system eliminates standing water.
  • Rated for indoor use.


See More


Specifications

Specifications
MaterialStainless Steel
Number of Stations1
FeaturesAntimicrobial
Filtered
Green Ticker™
Hands Free
Laminar Flow
Real Drain
Visual Filter Monitor
Power115V/60Hz
DimensionsL: 19-3/4"
W: 19"
H: 34-5/8"
Bubbler StyleFlexi-Guard ® Safety Bubbler
Mounting OptionWall Mount (Inwall Frame/Plate)
Chilling CapacityNon-refrigerated
Installation LocationIndoor
Shipping DimensionsL: 41-5/8"
W: 45-1/4"
H: 39-7/8"
Shipping Weight121 LBS
Included with ProductFountain with Integral Bottle Filling Station (EDFPBM114WS-F)
Mounting Frame (MFWSF100)
Filter
Ships In Multiple BoxesYes
Made or Assembled USAbuilt
FamilySwirlFlo
ADAYes
FilteredYes
Code Compliance Drinking SolutionsADA & ICC A117.1
ASME A112.19.3/CSA B45.4
Buy American Act
CAN/CSA C22.2 No. 120
GreenSpec
NSF 372 (lead free)
NSF 42
NSF 53
NSF 61
UL 399
NoteRefrigerated options available.
