Dyson -Dyson Cu-Beam™ Suspended Light

DOWNLOADS
Cu-Beam Duo suspended light

Powerful and precise. Fully flexible up and down-light.

Other colors available.

• Heat pipe technology cools the LED to sustain brightness

• Two custom lenses focus 9400 lumens (at 4000K)


Category: dimmable lighting | downlighting | suspended lights...

MasterFormat: Lighting | Interior Lighting


Related Products

Overview

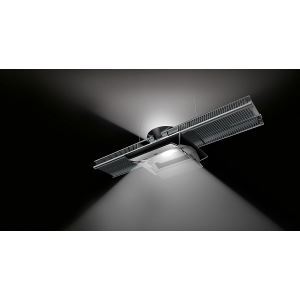

Dyson Cu-Beam™ Suspended Light

Cu-Beam Duo suspended light

Powerful and precise. Fully flexible up and down-light.

Other colors available.

• Heat pipe technology cools the LED to sustain brightness

• Two custom lenses focus 9400 lumens (at 4000K)

• Custom-built driver controls direction, dimming and ratio of light

• Available in two color temperatures (4000K and 3000K)

Key features

Maximum efficiency. Minimum waste.

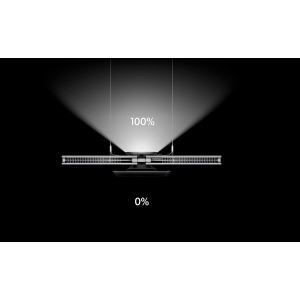

Ricochet™ technology uses one-touch shutters and a reflective surface, to convert unused down-light into usable, useful up-light. Combined with the efficiency of Heat pipe technology, no light – or power – goes to waste.

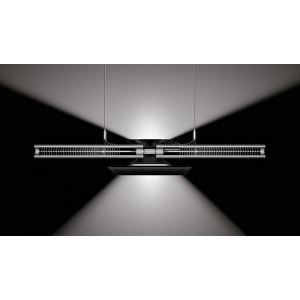

Fully flexible light. Up and down.

A custom-built driver controls the direction, dimming and ratio of powerful up and down-light. From a wide pool for presentations, to a focused pyramid on work surfaces, Cu-Beam Duo light covers any task, at any time.

Key technology

Heat pipe technology maintains LED brightness

Cools the LED to sustain brightness for up to 180,000 hours.¹

Two custom lenses focus 9400 lumens. From just 2 LEDs.

The custom-engineered lenses optimize the output of two high-power LEDs.

High efficacy

Heat pipe technology effectively cools the Cu-Beam Duo light, so it can run at 107lm/w (3000K) / 113lm/w (4000K).

Additional features

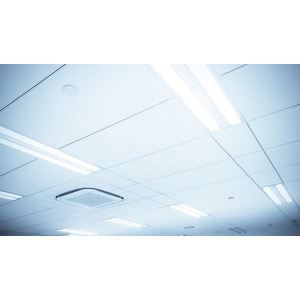

Fluorescent lighting is flawed, LEDs can be misused

Commercial lighting largely relies on inefficient, costly fluorescent bulbs or the ineffective use of multiple LEDs. Cu-Beam Duo ensures no light is wasted, providing effective up and down light.

Powerful up and down-lighting

Combined, the two high-power LEDs can project 9400 lumens at 4000K. Heat pipe technology cools the LEDs to optimize longevity, without loss of brightness.

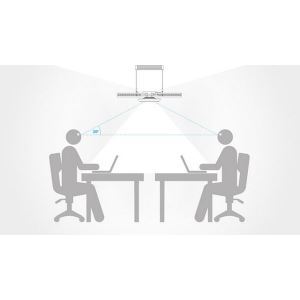

Controlled pyramid of down-light

When mounted at 4.3 ft (1.3 m) above the task area, the down-light projects up to 722 lx at 4000K evenly over an area of 10.5 ft x 5.3 ft (3.2 m x 1.6 m).²

Glare and flicker control

One-touch shutters hide glare from users. Line of sight and reduce glare to below 1%.

Light, precisely where you need it

Two custom-engineered lenses and adjustable one-touch shutters precisely focus the two high-power LEDs.

Wide distribution of up-light

Suspended at 15.8in (400mm) from the ceiling, the up-light illuminates evenly over an area of 13ft (4m).²


See More


Specifications

Specifications
Color temperature3000k / 4000k
Light sourceChip on board LEDs
Rated power83w
CRI80 minimum
Light output8875 / 9400 lm
Luminous efficacy107 / 113 lm/w
LED life time180,000 hrs¹
Light output ratio50%
Standby power consumption0.5w
Input voltage100-240v
Frequency50/60hz
Weight7 lbs (3.24 kg)
Height3.8 in (97 mm)
Width28.5 in (725 mm)
Depth8.1 in (206 mm)
Choose your model

Dyson Cu-Beam Duo suspended light

Powerful and precise. Fully flexible up and down-light.

• Dimensions: H 3.8 in (97 mm) x W 28.5 in (725 mm) x D 8.1 in (206 mm)

Dyson Cu-Beam Down suspended light

Powerful, focused light. From one LED. In a single fixture.

• Dimensions: H 3.5 in (89 mm) x W 28.3 in (720 mm) x D 5.1 in (130 mm)

Dyson Cu-Beam Up suspended light

An ultra-wide distribution of powerful up-light.

• Dimensions: H 2.3 in (60 mm) x W 28.3 in (720 mm) x D 5.1 in (130 mm)
