ES-1 Certified Edge Systems


ES-1 Certified Edge Systems

From the highest wind resistance to lighter duty, our perimeter systems have you covered. Drexel Metals perimeter edge-to-edge and ES-1 complaint systems are built weather-tough with premium quality, heavy-gauge materials and a fully supporting anchor chair that will meet the strictest of standards. The anchor chair is manufactured in continuous lengths and pre-punched, taking the guesswork out of cleat fastener spacing. This unique design prevents sag and supports the coping for a markedly superior installation that's also quick and easy. Spring-Tite copings are precision-engineered to provide maximum wind resistance and eliminate roof edge blow off.

  • Fact: It's estimated that 60% of all litigation claims related to buildings originate from a failure associated with the roofing area. By extension, out of all construction litigation, 36% of all lawsuits are attributed to metal edge failures and that 60% of all roof warranty claims are attributed to metal edge failures! The importance of a proerly designed roof edge system cannot be underestimated or ignored.

  • Fact: Roof Edges typically represent about 1% of the cost of the overall building!

  • Fact: Use and specify only ES-1 Rated Roof Edge Systems.

What's a ES-1 Rated Roof Edge System?

ES-1 is a reference for those who design, specify, fabricate or install low slop roof edges. It's based upon the information in ASCE 7-02" Minimum Design Loads for Buildings and Other Structures. ANSI/SPRI ES-1 provides a calculation and test methose for determining wing uplift pressures on perimeter roof edge terminations.

Considerations:

  • The ability of the roof edge treatment to resist the pull of the roof material inwardly towards the field of the roof.

  • The Resistance of the edge treatment to outward and upward forces which tend to blow or peel edge systems off a building.

  • It's part of the International Building Code...so it's funcational a LAW to use ES-1 perimeter systems however it's not always enforced at the local level.

Ideal Application
Roof Edge for Flat Roofing


See More


Specifications

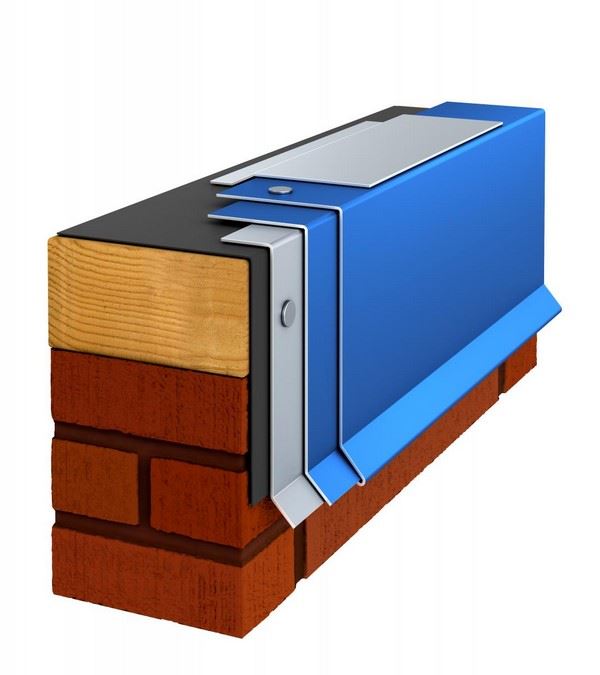

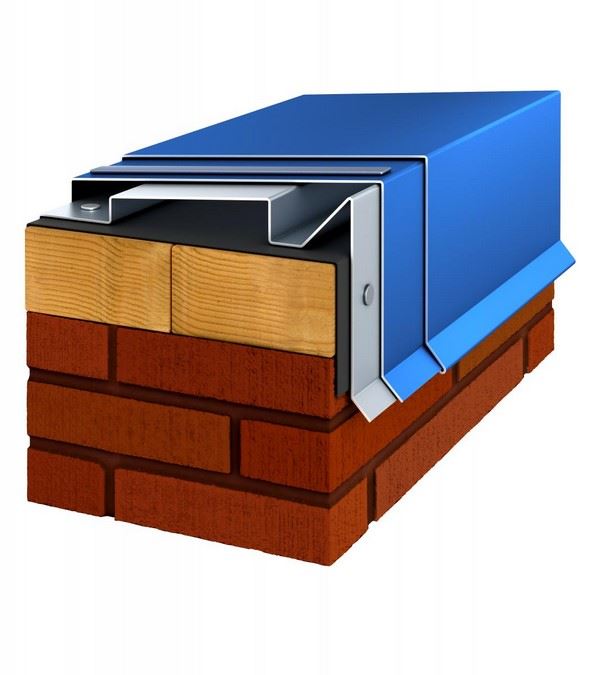

Spring Tite Coping

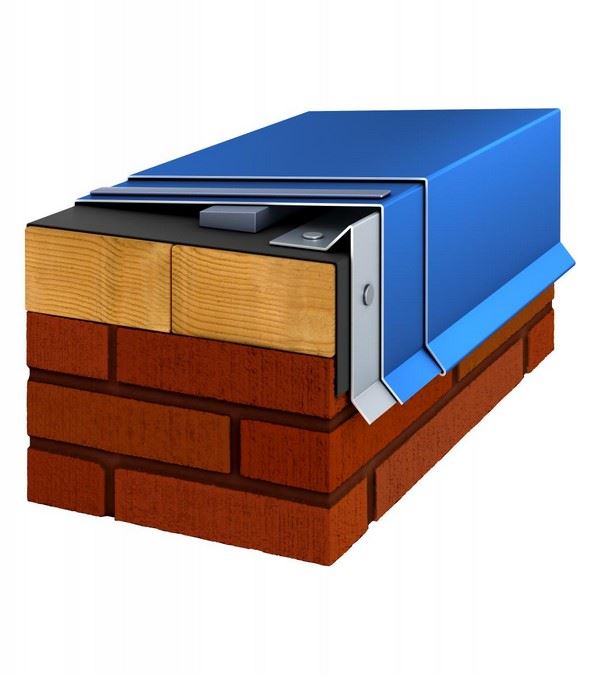

Econo Coping

Snap Gravel Stop

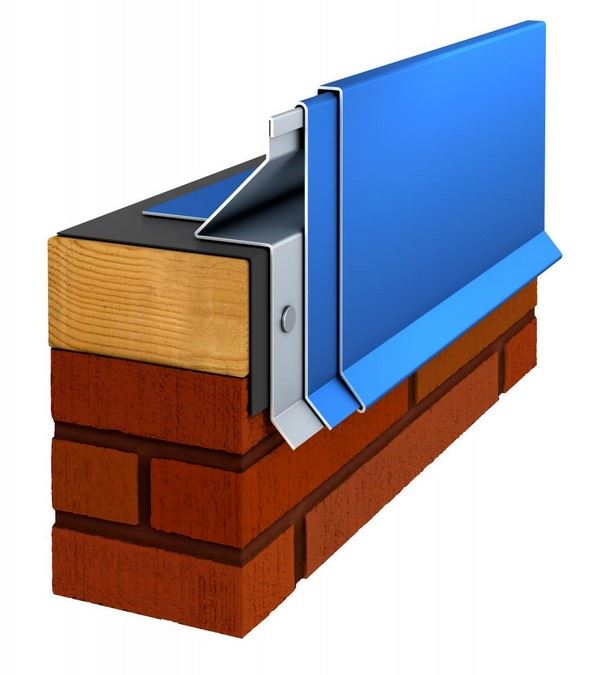

Gravel Stop

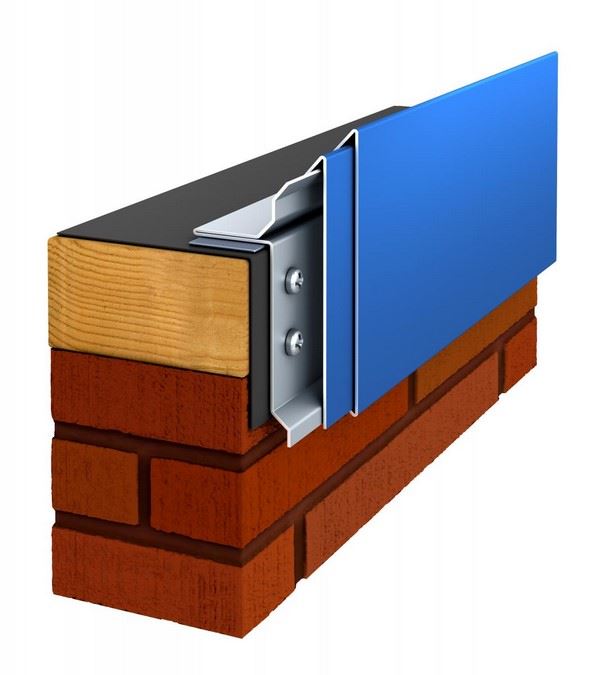

Fascia

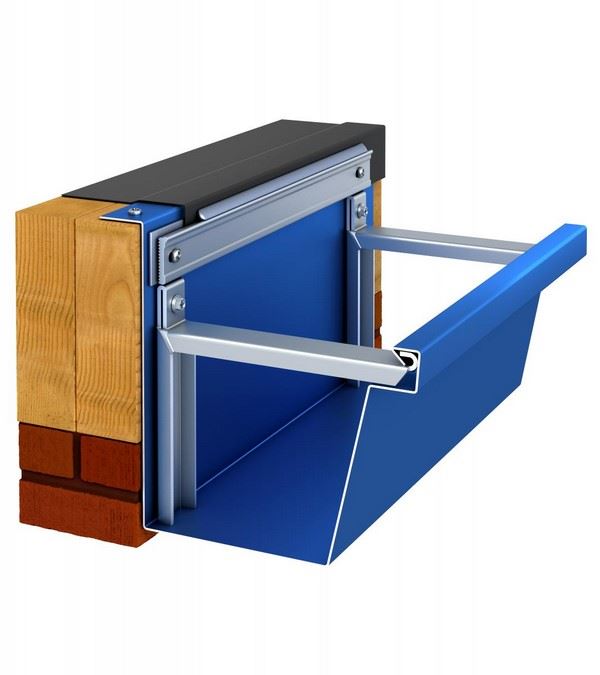

7" Box Gutter

Drip Edge
