Draper FlexShade Hardware

Draper FlexShade Hardware

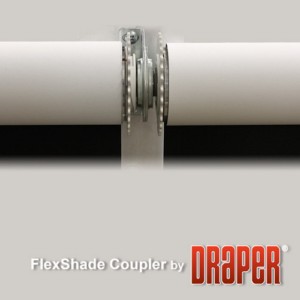

FlexShade Coupler

Draper's FlexShade Coupling System lets one motor or crank operator drive multiple window shade rollers. Reduce the number of motors required and you reduce the cost of the project and simplify the electrical portion of the contract. The FlexShade Coupler allows fabrics height to be easily and independently adjusted.


Draper FlexShade Hardware

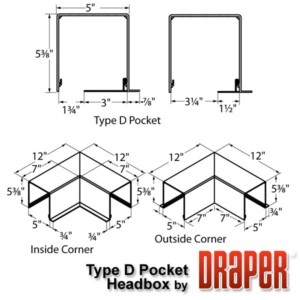

Type D Pocket

Now Redesigned! Aluminum FlexShade Pockets are for mounting motorized or manual FlexShades above the ceiling. Pockets are anchored through the top, and FlexShades are installed using standard ceiling brackets.

Pockets have a removable continuous closure that drops into place without fasteners. 1-1/2" (38mm) closure panel recommended for use with clutch-operated FlexShades. Larger closure panels will require field notching for bead chain clearance. Not suitable for all products/sizes.

  • 12’ (367cm) length
  • Cross-section measures 5" x 5-3/8" (13mm x 136mm)
  • Standard color: white
  • Fixed lip along lower edge supports lay-in ceiling at bottom edge
  • For use with clutch-operated or motorized FlexShade, and with FlexShade Coupling Assembly.


Draper FlexShade Hardware

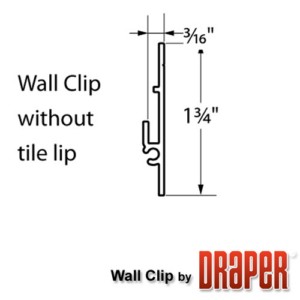

Wall Clip

Pocket already exists? Specify FlexShade Wall Clip with closure. Wall Clip mounts to the wall and bottom closure panel drops neatly into place without fasteners, leaving a minimal slot through which shade descends. Closure sizes 1-1/2" (38mm) or 3" (76mm) or 5" (127mm). Wall clip length 12’ (367cm)


Draper FlexShade Hardware

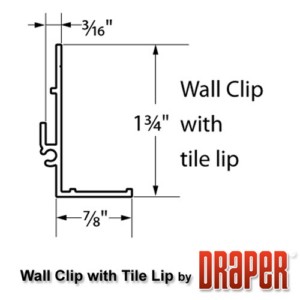

Wall Clip with Tile Lip

Pocket already exists? Specify FlexShade Wall Clip with closure. Wall Clip mounts to the wall and bottom closure panel drops neatly into place without fasteners, leaving a minimal slot through which shade descends. Closure size 7/8" (22mm). Extension is 12’ (367cm) long.


Draper FlexShade Hardware

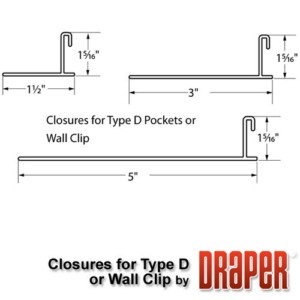

Closures for Type D Pockets or Wall Clip

1-1/2" (38mm), 3" (76mm) or 5" (127mm) closure. 1-1/2" (38mm) recommended for use with clutch operated FlexShades. Larger closure panels will require field notching for chain clearance. 5" (127mm) for use with wall clip only.


Draper FlexShade Hardware

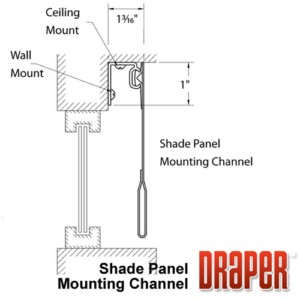

Shade Panel Mounting Channel (Spline Attachment)

Shade fabric attached to channel with spline to create a free hanging fixed shade. Specify extrusion color.


Draper FlexShade Hardware

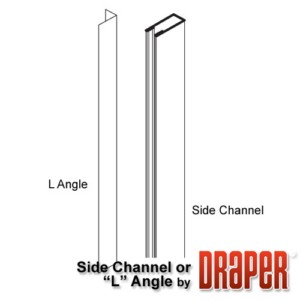

Side "U" Channel, "H" Channel or "L" Angle

Side "U" Channels, "H" Channels or "L" Angles prevent direct light gaps at sides of shade fabrics. Side Channels are 1" (25mm) deep x 2-1/2" (64mm) wide, and mount to the jamb or face of window opening. H Channels are 1" (25mm) deep x 5" (127mm) wide and are face mounted. "L" Angles measure 1" x 3/4" (25mm x 19mm) or 1" x 2-3/4" (25mm x 70mm) and mount inside the jamb.


Draper FlexShade Hardware

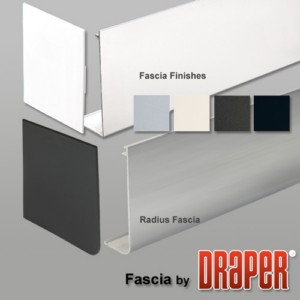

Fascia and Endcaps

Optional extruded fascia in square or radius styles hides hardware and roller. Available in clear anodized (standard), black, white, ivory, or charcoal bronze. 3-7/8" (98mm) or 4-5/8" (117mm) high as required. Color samples are available.


Draper FlexShade Hardware

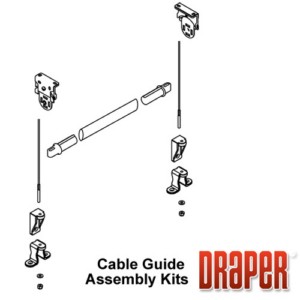

Cable Guide Assembly Kits

Includes special hem bar with cable guides, wall or deck mount hardware, and 13’ (396cm) of steel cable. Cable cut to length in field.


Draper FlexShade Hardware

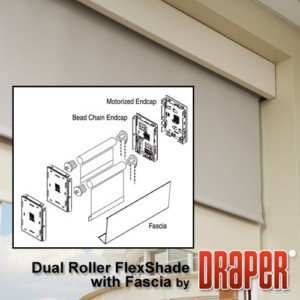

Fascia for Dual Roller FlexShade

May be mounted inside or outside with matching endcaps. Is a secure fit, notchless and has a small profile. Accommodates manual FlexShades, Motorized FlexShades, Battery operated FlexShades and 24V FlexShades. Five colors: black, white, ivory, bronze or clear anodized, plus custom powder coat is available.


Draper FlexShade Hardware

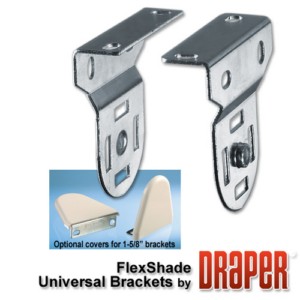

Mounting Brackets

The standard mounting hardware supplied for wall, ceiling or jamb installation of Draper Motorized and Manual FlexShades. As an option for a pair of 1-5/8" (41mm) brackets, white bracket covers are available. If optional fascia or headbox are specified, then endcaps (not brackets are supplied).


Draper FlexShade Hardware

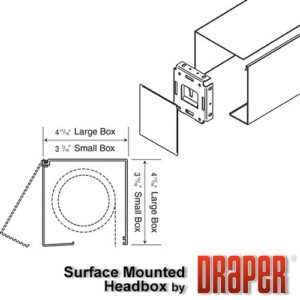

Surface Mounted Headbox

Complete extruded headbox is available to hide hardware and roller as an option for Motorized and Manual FlexShades. Two-piece assembly is suitable for surface mount to head, jamb or wall, in sizes 3-7/8" (98mm) high or 4-5/8" (117mm) high as required.


Draper FlexShade Hardware

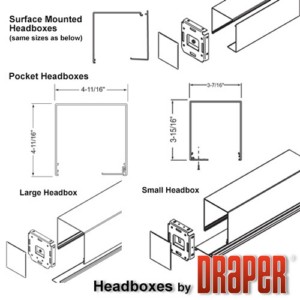

Pocket-Style Headbox

Complete extruded headbox with endcaps is available for ceiling recessed installation. In sizes 3-7/8" (98mm) high or 4-5/8" (112mm) high.
