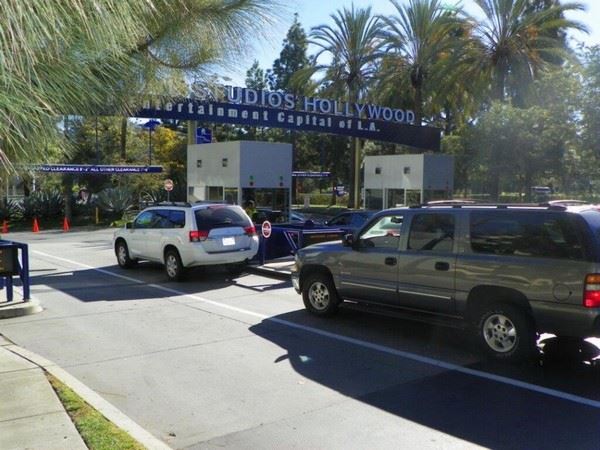

Standard Guard Booths

Delta’s standard guard booths solves project headaches that need efficient guard booths in typical applications. Our standard guard booth is offered in two different sizes to fit the typical location. They are designed to provide protection from the changing environment and to offer security to your facility. Pre-wired to N.E.C. (125 AMP, 120/240 Volt, 6/12 station, single phase), standard booths are fully assembled and ready for service.

Specifications For Standard Guard Booths

Prefabricated building shipped fully assembled, ready for installation. All structural members meet or exceed ASTM A500. Steel tubing to be 2″ x 2″ x .083. Sheet metal to be 14 GA. CRS, (galvanized/pre-primed). Sliding door fabricated from structural steel with top suspension aluminum track ball bearing carriers.

Heavy duty steel counter with electrical access port. Steel window frames with 1/4″ clear tempered safety glazing. Fluorescent light fixture with (2) 40 watt tubes and a single pole switch. Electrical cabinet with duplex outlets, 125AMP, 120/240 volt, 6/12 station load center and 1500 watt heater.

Heavy duty steel counter with electrical access port. Steel window frames with 1/4″ clear tempered safety glazing. Fluorescent light fixture with (2) 40 watt tubes and a single pole switch. Electrical cabinet with duplex outlets, 125AMP, 120/240 volt, 6/12 station load center and 1500 watt heater.

All electrical components will be UL approved and installed in accordance with the N.E.C. Finish will be primed and painted in accordance with the standards established by the Steel Structures Painting Council. All primer to be corrosion resistant with a finish coat of two component industrial paint. Finish coat to have good fade, impact and chemical resistance. Finish color to be white-standard.

Contact Delta at (661) 575-1100 for any additional design options including air conditioning, sliding windows, insulation, flooring and other special needs.

• CK46
• CK612
• CK5678 - IL
• CK816
• CK68

Most requested sizes are 48″ x 72″ and 66″ x 92″ for ADA.

Delta will build other sizes to fit your needs.
