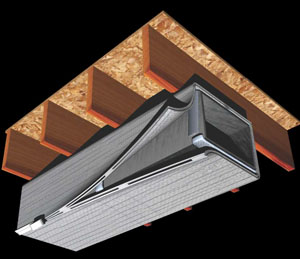

rFOIL BIG 8™ Reflective Duct Wrap Insulation

rFOIL BIG 8™ Reflective Duct Wrap Insulation

rFOIL™ BIG-8 is the first reflective bubble (non-fibrous) insulation to achieve R-8 (with air space) or R-6 (without air space). It is specially designed to reduce radiant heat gain/loss in all residential and commercial duct applications. rFOIL™ also helps control condensation by providing an airtight thermal break around duct work.

rFOIL™ BIG-8 Reflective Duct Insulation increases system efficiency, lowers stress on HVAC equipment, reduces energy usage and utility bills. The first R-8 reflective bubble insulation is here!

Applications:

  • Duct wrap insulation
  • Suitable for all duct types
  • Residential and commercial
  • R-8 code requirements

Benefits:

  • R-Value=8....improves HVAC system efficiency
  • No foam corner spacers needed
  • The first R-8 without a mineral fiber/fiber glass core no itch!
  • Thermal value unaffected by moisture or humidity
  • Will NOT harbor mold, mildew, or other fungi
  • Prevents exterior build-up of condensation
  • Saves energy, money and it’s easy to install


SPECIFICATIONS


Physical Properties
Test
BIG -6 (Indoor Use)
2260 Series (Metalized Foil)
THERMAL RESISTANCE
ASTM C335
R-8 with BUBBLE SPACERS
TEMPERATURE RANGE
ASTM C411
-50°F to 180°F
FIRE RATING
ASTM E84-09
CLASS 1 / CLASS A
EMISSIVITY
ASTM C1371
0.04
REFLECTIVITY
ASTM E903
0.96
WATER VAPOR PERMEABILITY
ASTM E96
0.029 Perms
RESISTANCE TO FUNGI & BACTERIA
ASTM C1338-08
DOES NOT PROMOTE GROWTH
BLEEDING and DELAMINATION
ASTM C1224-03
NO BLEEDING or DELAMINATION
PLIABILITY
ASTM C1224-03
NO CRACKING
TEMPERATURE and HUMIDITY
RESISTANCE
ASTM C1258
Evidence of Delamination - NONE
Evidence of Corrosion - NONE
Loss of Metallaization - MINIMAL
FIRE RATING - FULL ROOM BURN TEST
NFPA 286
PASSES
