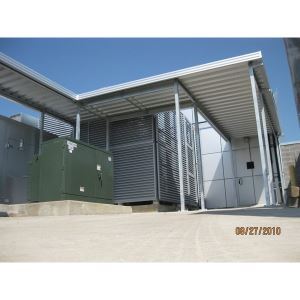

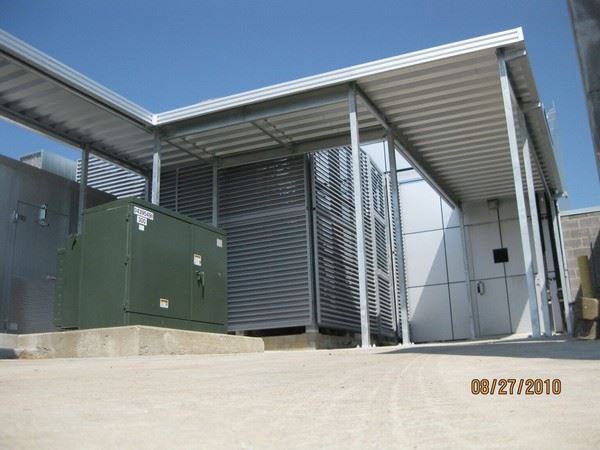

Walkway Canopy w/ Drain-Thru Model (WCD-9)

This is Childers middle grade for single slope walkway canopies. It features double row column design with a low roof slope of 1/4" on 12 and a internal drainage system. The WCD model utilizes a 14 GA. galvanized gutter beam which acts as both the support beam and the gutter. Water is drained from the gutter beam through the galvanized column and discharged at ground level. The gutter beam is then concealed by using our 26 GA. biscayne beam cover trim. Max depth / width for this model is 11'-0" for up to a 20 pound live load.

Schools, churches, hospitals, commercial buildings or industrial plants: Wherever you need walkway covers, CHILDERS provides a mostly maintenance-free, eye-pleasing canopy system to complement any architectural style at a cost that will meet budget requirements. All components are heavily galvanized with high purity zinc to provide a virtual maintenance-free system.

Roof panels and trim are available with a factory applied baked on polyester paint finish over the galvanized coating. Our standard colors are WHITE, PEBBLE TAN, COP-R-PANEL and CHOC-LET-PANL.

On larger orders non-standard colors are available, with slightly longer lead times and cost considerations. By choosing one of Childers Walkway Systems which fits your architectural requirements, you can be assured of the HIGHEST QUALITY pre-engineered and prefabricated galvanized steel system available.
