Steeples Series "C"

Campbellsville steeples are furnished with lightning protection cable to base. A weathervane, finial, or cross is optional. All steeples are adaptable to pitched or flat roofs. Structural framework utilizes structural alloy 6061-T6 aluminum angle extrusions, covered with .032" aluminum in your choice of any of our stock baked-on Kynar finishes. Other finishes such as copper, lead coated copper, Altrista zinc, and non-stock Kynar finishes are available at additional cost. If you do not see a steeple that meets your needs Campbellsville can also provide custom fabrication to your design criteria. Simply fax or e-mail us a drawing of your design and we will provide a prompt quotation. You may also want to consider our Free Design Service to help you in designing a steeple that is just right for your architectural style and jobsite requirements. If an engineer's stamp is required on the final steeple shop drawings and anchor details, this can be provided at additional cost. We must be notified that the steeple is to be engineered before the preparation of the shop drawings.


See More


Specifications

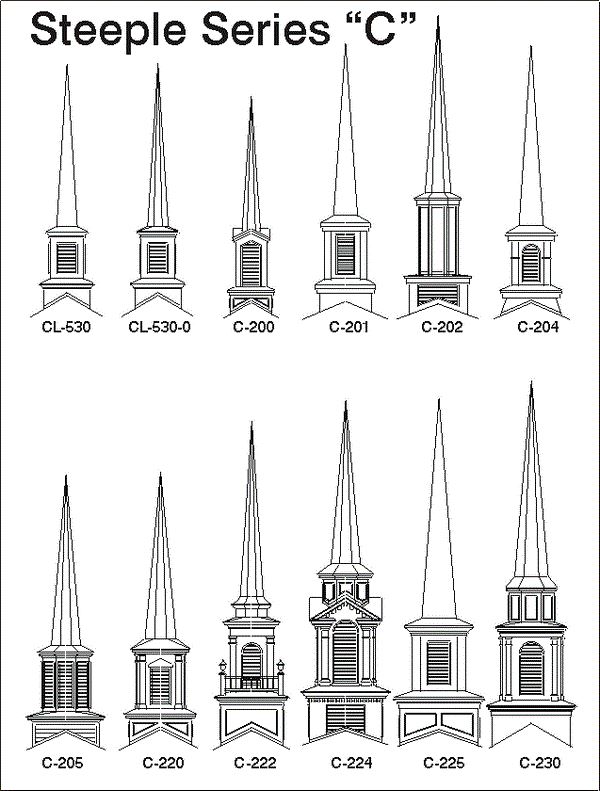

Series "C" Stock Steeple Designs
Model:Height:Width:Estimated Weight:

CL-530

22'-6"4'-6"425 LBS.
25'-0"4'-6"456
CL-530-022'-6"4'-6"497
25'-0"4'-6"537
C-20025'-0"4'-0"506
25'-0"5'-0"645
C-20125'-0"5'-0"507
30'-0"5'-0"582
C-20228'-0"6'-0'674
C-20425'-0"6'-0"593
C-20525'-0"6'-0"705
30'-0"6'-0"853
C-22025'-0"6'-0"718
30'-0"6'-0"859
C-22230'-0"6'-0"1,080
C-22432'-0"7'-0"1,355
C-22534'-0"8'-0"1,124
C-23035'-0"8'-0"1390
C-45050'-0"12'-0"4,156
C-46552'-0"12'-0"4930
