Overview


CX-WC/WEC Restroom Control Kits

CX-WC Series Barrier Free Restroom Control Kits

Camden Door Controls offers an industry-leading range of packages designed specifically for the control of automatic doors in restroom applications. These kits feature a number of innovative and exclusive products that are not available elsewhere, including the CM-AF500 single gang annunciator (providing 'OWL' signage that is not legible when unit is not lit) CX-33 advanced logic relay (providing exclusive operation modes for restroom control) and Aura™ illuminated push plate switches (that combine 'OWL' annunciation and door activation in one product).

CX-WEC Series Emergency Call for Universal Restroom Kits

Camden Door Control CX-WEC Series is an equipment package designed to meet the latest building code requirements for universal restrooms. Emergency Call for Universal Restroom Kits may be installed in restrooms without an automatic door operator or with Camden CX-WC Series barrier free restroom kits (with operator).

Features
  • Complete equipment packages to meet emerging code requirments for universal and barrier free restrooms

  • Innovative products not available from any other manufactuer, including:
    AURA(tm) illuminated push plate enclosures and signs
    CM-AF501SO LED illuminated annunciator with sounder
    CM-AF141SO dome light with sounder

  • Special package pricing


See More


Specifications

Specifications
Current Draw:RESTROOM CONTROL KITS
CX-WC10: 320mA
CX-WC11: 360mA
CX-WC12: 360mA
CX-WC13: 540mA
CX-WC14: 830mA
CX-WC15: 720mA
CX-WC16: 460mA
EMERGENCY CALL KITS
CX-WEC10/11: 165mA
MODELS
ModelDescription
Barrier-Free Restroom Control Kits
CX-WC10BASIC PUSH BUTTON SYSTEM, including CX-33 Advanced Logic Control, CM-400R/8 Mushroom ‘PUSH TO LOCK’ Button,CX-MDA Magnetic Door Contact
Add suffix 'F' to model number for French language

Dimensions: 9.25"L x 7.25"W x 5.50"H

Weight: 1.65lbs.

UPC:670454171009

CX-WC11PUSH BUTTON & ANNUNCIATOR SYSTEM, including CX-33 Advanced Logic Control, CM-400R/8 Mushroom ‘PUSH TO LOCK’ Button, CM-AF500 Single Gang LED Annunciator, CX-MDA Magnetic Door Contact
Add suffix 'F' to model number for French language.

Dimensions: 9.25"L x 7.25"W x 5.50"H

Weight: 2.03lbs.

UPC:671454171016

CX-WC124 ½” PUSH PLATE & ANNUNCIATOR SYSTEM, including CX-33 Advanced Logic Control, CM-40/8 All Active™ Push Plate Switch,CM-AF500 Single Gang LED Annunciator, CX-MDA Magnetic Door Contact
Add suffix 'F' to model number for French language

Dimensions: "L x "W x "H

Weight: lbs.

UPC:670454171023

CX-WC13XFMFLUSH MOUNT AURA™ ILLUMINATED PUSH PLATE SWITCH SYSTEM, including CX-33 Advanced Logic Control, CM-45/855SE1 Flush 4 ½” 'Push To Lock' Illuminated Push Plate Switch with sign, CM-45/455SE1 Flush 4 ½” Illuminated Wheelchair & 'Push to Open' Push Plate with sign, CM-45/4 'Push to Open' 4-1/2" square Push Plate Switch, CM-55CBL Flush square mounting box for CM-45/4, CX-MDA Magnetic Door Contact
Add suffix 'F' to model number for French language

Dimensions: 12.5"L x 9.25"W x 4.75"H

Weight: 4.4lbs.

CX-WC13XSMAS ABOVE, SURFACE, with CM-45/854SE1 Surface 4-½” Illuminated 'Push to Lock' Push Plate Switch with sign and CM-45/454SE1 Surface 4-½” Illuminated Wheelchair & 'Push To Open' Push Plate switch with sign, CM-45/4 4-1/2" square 'Push to Open' Push Plate Switch, CM-54CBL surface square box for CM-45/4 and CX-MDA Magnetic Door Contact
Add suffix 'F' to model number for French language

Dimensions: 12.25"L x 9.25"W x 4.75"H

Weight: 4.4lbs.

CX-WC13AXFMFLUSH MOUNT COMBO ILLUMINATED PUSH PLATE SYSTEM, including CX-33 Advanced Logic Control, CM-2520/4855SE1 Flush Combo Illuminated Push Plate Switch (Wheelchair symbol/Push to Open & Push to Lock), with sign, CM-45/455SE1 (Wheelchair & Push to Open) Illuminated Push Plate Switch with Sign & CX-MDA Magnetic Door Contracts

Dimensions: 12.5"L x 9.25"W x 4.75"H

Weight: 4.4lbs.

CX-WC13AXSMAS ABOVE, SURFACE, with CX-33 Advanced Logic Control, CM-2520/4854SE1 Surface Combo Illuminated Push Plate Switch (Wheelchair symbol/Push to Open & Push to Lock) with sign, CM-45/454SE1 4-1/2" Illuminated Push Plate (Wheelchair Symbol & Push to Open) with sign and CX-MDA Magnetic Door Contact

Dimensions: 12.25"L x 9.25"W x 4.75"H

Weight: 4.4lbs.

CX-WC14XFMFLUSH MOUNT TWO DOOR RESTROOM SYSTEM, including CX-EMF-2 Multi-Function Relay, CM-45/855SE1, Flush 4-½” Illuminated 'Push To Lock' Push Plate Switch with sign, (2) CM-45/455SE1 Flush 4 ½” Illuminated Wheelchair & 'Push To Open' Push Plate Switch with sign, (2) CM-45/4 Wheelchair & 'Push to Open' 4-1/2" square Push Plate Switch, (2) CM-55CBL Flush square mounting box for CM-45/4, (2) CX-MDA Magnetic Door Contacts. CX-EMF-2 also provides option for timed unlock and strobe annunciator illumination.

Dimensions: "L x "W x "H

Weight: lbs.

UPC:670454180377

CX-WC14XSMAS ABOVE, SURFACE, with (2) CM-45/854SE1 4-½” Surface Illuminated 'Push To Lock' Push Plate Switch with sign, (2) CM-45/455SE1 4-½” Surface Illuminated Wheelchair & 'Push To Open' Push Plate switches, with sign. (2) CM-45/4 Wheelchair & 'Push To Open' Push Plate switches, (2) CM-54CBL Surface square mounting box for CM-45/, (2) CX-MDA Magnetic Door Contacts
Add suffix 'F' to model number for French language

Dimensions: 15.88"L x 10.13"W x 6.75"H

Weight: 6.25lbs.

UPC:6700454171047

CX-WC15XFMFLUSH MOUNT AURA ILLUMINATED PUSH PLATE SWITCH & ASSISTANCE SWITCH SYSTEM, including CX-EMF-2 Advanced Logic Control, CM-45/855SE1 Flush 4 ½" 'Push To Lock' Illuminated Push Plate Switch with sign, CM-45/455SE1 Flush 4 ½” Illuminated Wheelchair & 'Push to Open' Push Plate with sign, CM-45/4 'Push to Open' 4-1/2" square Push Plate Switch, CM-55CBL Flush square mounting box for CM-45/4, CM-450R/12 ‘PRESS FOR EMERGENCY ASSISTANCE' mushroom push button,CX-MDA Magnetic Door Contact Same operation as CX-WC13 kit with the additional option for flashing 'Assistance Requested' annunication and timed washroom lock
Add suffix 'F' to model number for French language

Dimensions: 9.25"L x 12.5"W x 4.75"H

Weight: 4.4lbs.

CX-WC15XSMAS ABOVE, SURFACE, with CM-45/854SE1 Surface 4-½” Illuminated 'Push to Lock' Push Plate Switch with sign and CM-45/454SE1 Surface 4-½” Illuminated Wheelchair & 'Push To Open' Push Plate switch with sign, CM-45/4 4-1/2" square 'Push to Open' Push Plate Switch, CM-54CBL surface square box for CM-45/4
Add suffix 'F' to model number for French language

Dimensions: 9.25"L x 12.5"W x 4.75"H

Weight: 4.4lbs.

CX-WC16TOUCHLESS SWITCH RESTROOM SYSTEM. CM-331/43S-SGLR ‘WAVE TO LOCK‘ switch w/ light ring and sign,CM-331/42SW-SGLR ‘WAVE TO OPEN‘ switch w/ light ring and sign,CM-325/42SW ‘WAVE TO OPEN‘ switch, CX-33 advanced logic,controller, CX-MDA magnetic door contact. Add suffix ‘F‘ to model number for French language.

Dimensions: 9"L x 7"W x 5"H

Weight: 3.15lbs.

UPC:670454171856

Emergency Call for Universal Restroom Kits
CX-WEC10Universal Emergency Call Kit for use without automatic door operator, or with CX-WC 10, 11, 12, 13 & 14 barrier-free restroom control kit. Includes: CM-450R/12 ‘PRESS FOR EMERGENCY ASSISTANCE’ mushroom push button, CM-AF501SO LED annunciator with adjustable sounder, CM-AF141SO LED Dome light with adjustable sounder AND CM- SE21 white panel sign (6” X 10 5/8” (152mm X 270mm).
Add suffix 'F' to model number for French language.

Dimensions: 16"L x 14"W x 5.62"H

Weight: 2.7lbs.

UPC:670454177261

CX-WEC10FEBilingual Universal Emergency Call Kit for use without automatic door operator, or with CX-WC 10, 11, 12, 13 & 14 barrier-free restroom control kit. Includes: CM-450R/12FE ‘PRESS FOR EMERGENCY ASSISTANCE’ mushroom push button, CM-AF501SOFE LED annunciator with adjustable sounder, CM-AF141SOFE LED Dome light with adjustable sounder, CM- SE21 Eng. white panel sign and CM- SE20A Fr.. white panel sign (6” X 10 5/8” (152mm X 270mm).

Dimensions: 16"L x 14"W x 5.62"H

Weight: 2.7lbs.

UPC:670454178602

CX-WEC10K2Universal Emergency Call System Kit with, double gang CM-AF540SO 'Press for Assistance' maintained mushroom push button and 'Assistance Requested' LED annunciator w/ adjustable sounder, CM-AF141SO LED dome light w/ adjustable sounder and CM-SE21 instruction white panel sign (6" x 10-5/8")

Dimensions: 12"L x 9"W x 4"H

Weight: 1.8lbs.

UPC:670454186959

CX-WEC11Universal Emergency Call Kit for use with CX-WC15 barrier -free restroom control kit. As above without CM-450R/12 push button.Add suffix 'F' to model number for French language.

Dimensions: 12"L x 9"W x 4"H

Weight: 1.8lbs.

UPC:670454177933

CX-WEC12Universal Emergency Call Kit with push button reset. For use with momentary 'Press For Emergency Assistance' switches (extra) includes: CM-AF501SO LED annunciator with adjustable sounder, CM-AF141SO LED Dome ligh with adjustable sounder, CM-SE21 white panel sign, CX-LRS 24V latching relay assembly, CM-8010/13 momentary, ‘Press for Reset’ 1” red push button

Dimensions: 12"L x 9.0"W x 7.0"H

Weight: 4.5lbs.

UPC:670454182524

CX-WEC13Universal Emergency Call Kit with key switch reset. For use with momentary 'Press For Emergency Assistance' switches (extra) includes: CM-AF501SO LED annunciator with adjustable sounder, CM-AF141SO LED Dome light with adjustable sounder, CM-SE21 white panel sign, CX-LRS 24V latching relay assembly, CM-1205/14 momentary, ‘W/C System Reset’ key switch and CM-1000/60KD, key cylinder

Dimensions: 12"L x 9.0"W x 7.0"H

Weight: 4.5lbs.

UPC:670454182517

Emergency Call - Components

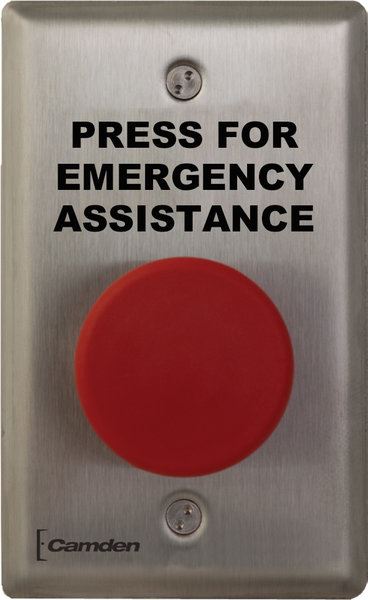

CM-450R/12Mushroom Push button, single gang, stainless steel faceplate, push/pull, ‘PRESS FOR EMERGENCY ASSISTANCE’
Add suffix 'F' to model number for French languageBR> For additional contracts to connect additional notification devices or systems, order CM-4000/50N (N/O) or CM-4000/60N (N/C).

Dimensions: 4"L x 3"W x 5"H

Weight: 0.6lbs.

UPC:670454178169

CM-450R/12FEBilingual Mushroom Push button, single gang, stainless steel faceplate, push/pull, ‘PRESS FOR EMERGENCY ASSISTANCE’ and Fr. language sign, laser etched with brushed stainless finish.

Dimensions: 4"L x 3"W x 7"H

Weight: 0.6lbs.

UPC:670454183330

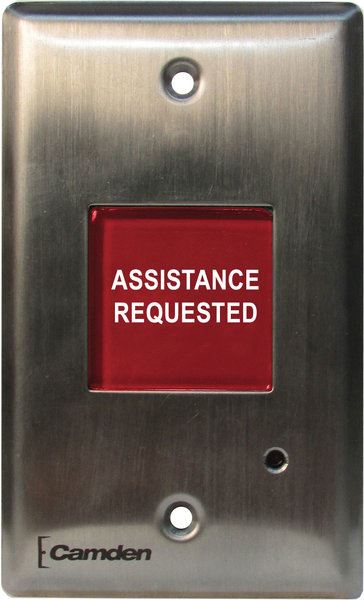

CM-AF501SOSingle gang, LED annunciator with adjustable sounder, 'ASSISTANCE REQUESTED'.
Add suffix 'F' to model number for French language.Add suffix 'FE' to model number for English & French Bilingual language

Dimensions: 4.75"L x 4"W x 2.87"H

Weight: 0.35lbs.

UPC:670454165206

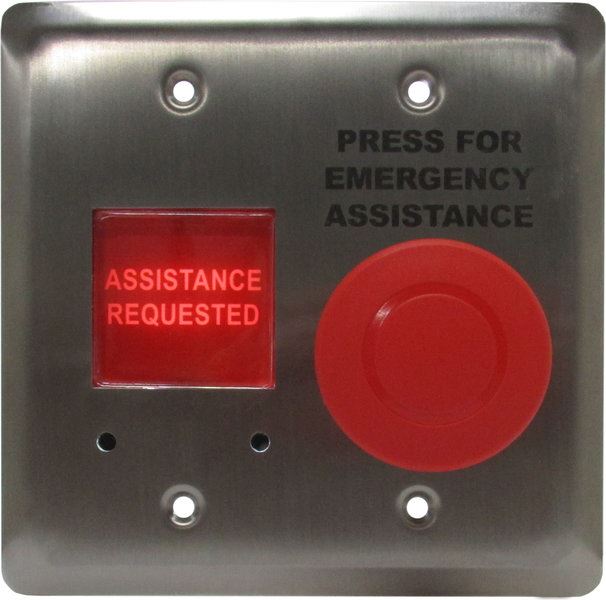

CM-AF540SODouble gang, SS faceplate, push/pull mushroom push button, red, 'Assistance Required', w/ LED annunciator and adjustable sounder, 'Assistance Requested'
Add suffix 'F' to model number for French language

Dimensions: "L x "W x "H

Weight: lbs.

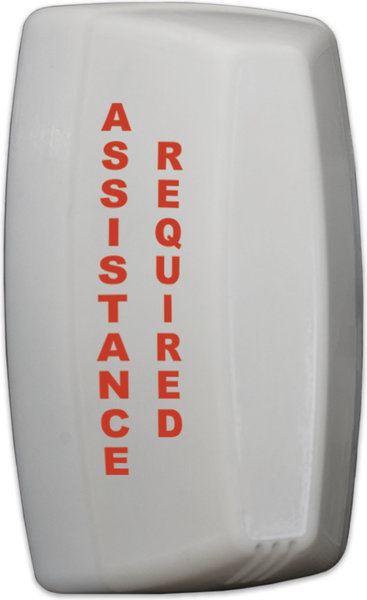

CM-AF141SOSingle Gang LED Dome Light w/ adjustable sounder. Add suffix 'F' to model number for French language, 'FE' fro bilingual

Dimensions: 4.75"L x 4.0"W x 2.87"H

Weight: 0.35lbs.

UPC:670454177704

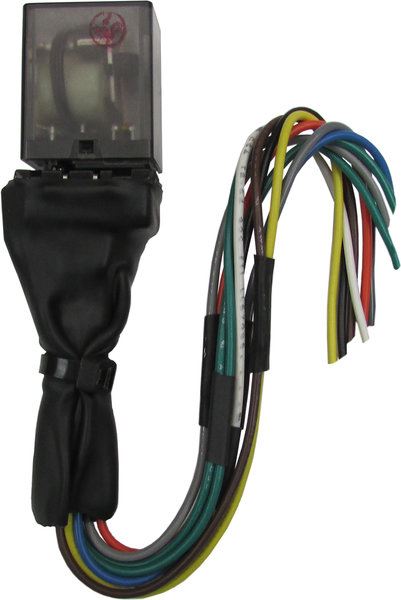

CX-LRS1212V Latching Relay Assembly for EM Call System using momentary 'Press For Emergency Assistance' switches

Dimensions: 4.5"L x 3.0"W x 1.5"H

Weight: .25lbs.

UPC:670454182067

CX-LRS2424V Latching Relay Assembly for EM Call System using momentary 'Press For Emergency Assistance' switches

Dimensions: 4.5"L x 3.0"W x 1.5"H

Weight: .25lbs.

UPC:670454182074

CM-SE21AEnglish, solid white sign, (6” X 10 5/8” (152mm X 270mm). ‘IN THE EVENT OF AN EMERGENCY PUSH EMERGENCY BUTTON AND AUDIBLE AND VISUAL SIGNAL WILL ACTIVATE’

Dimensions: 10.5"L x 1"W x 7"H

Weight: 1.2lbs.

UPC:670454177858

Emergency Call - Optional Signage
CM-SE21BEnglish sign, white self adhesive vinyl, (6” X 10 5/8” (152mm X 270mm). ,‘IN THE EVENT OF AN EMERGENCY PUSH EMERGENCY BUTTON AND AUDIBLE AND VISUAL SIGNAL WILL ACTIVATE’

Dimensions: 10.5"L x 1"W x 7"H

Weight: 0.2lbs.

UPC:670454177865

CM-SF20AFrench, solid white sign, (6” X 10 5/8” (152mm X 270mm). ‘DANS LE CAS D’UNE URGENCE POUSSER LE BOUTON D’URGENCE POUR ACTIVER LE SIGNAL SONORE ET VISUEL‘

Dimensions: 10.5"L x 1"W x 7"H

Weight: 0.2lbs.

UPC:670454177889

CM-SF20BFrench, WHITE self adhesive vinyl, (6” X 10 5/8” (152mm X 270mm). DANS LE CAS D’UNE URGENCE POUSSER LE BOUTON D’URGENCE POUR ACTIVER LE SIGNAL SONORE ET VISUEL‘

Dimensions: 10.5"L x 1"W x 7"H

Weight: 0.2lbs.

UPC:670454177896

Magnetic Contacts
CX-MDAMagnetic contact, surface, SPST, white, 15/16" (23mm) gap

Dimensions: "L x "W x "H

Weight: lbs.

CX-MDCMagnetic contact, surface, SPDT, white, 1" (25mm) gap

Dimensions: "L x "W x "H

Weight: lbs.

CX-MDHMagnetic contact, recessed, SPST, white, 1-1/16" (27mm) gap

Dimensions: "L x "W x "H

Weight: lbs.

Optional Power Supply
CX-TRK-245024VAC, 40VA Standard Mount transformer & AC to DC Rectifier

Dimensions: 5"L x 4"W x 3"H

Weight: 2lbs.

UPC:670454178749
