CENTRIA -EcoScreen Perforated Screenwall - MR3-36 - Horizontal & Vertical

DOWNLOADS

The 3” [76 mm] depth MR3-36 has three evenly spaced ribs with available staggered or reversed perforation patterns. EcoScreen MR3-36 is the perfect selection of screening material to control light, provide air movement or secure and conceal operational equipment.


Category: exterior wall cladding | exterior wall panels | perforated panels...

MasterFormat: Roofing and Siding Panels | Wall Panels | Metal Wall Panels


View Product Details From Manufacturer


CENTRIA
1550 Coraopolis Heights Rd.
Suite 500
Moon Township, PA 15108
Tel: (800) 759-7474
Fax: (412) 299-8317

info@centria.com

https://www.centria.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview

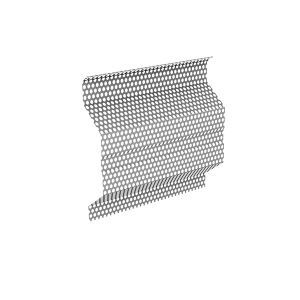

EcoScreen Perforated Screenwall - MR3-36 - Horizontal & Vertical

The 3” [76 mm] depth MR3-36 has three evenly spaced ribs with available staggered or reversed perforation patterns. EcoScreen MR3-36 is the perfect selection of screening material to control light, provide air movement or secure and conceal operational equipment. All EcoScreen panels are exposed fastener and can be installed in vertical or horizontal applications. EcoScreen panels are available in 2B finished stainless steel or in CENTRIA’s painted finishes on aluminum.


See More


Specifications

PANEL LENGTHPANEL WIDTHPANEL DEPTHPERFORATION PATTERNSUBSTRATES

Stainless Steel:

5′ [1.524m] - 30′ [9.144m]

Aluminum:

5′ [1.524m] - 20′ [6.096m]

20’ [6.10m] max for aluminum

36” [914mm]

3” [76mm]

Staggered

Reverse

20 gauge Stainless Steel

0.040″ [1] painted Aluminum
