Overview

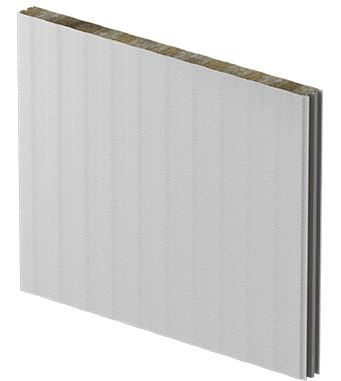

TotalClad MW Micro Planked

TotalClad MW Micro Planked fire resistant insulated metal panels are single-component insulated metal panels designed specifically for fire resistant wall applications. Featuring a mineral wool core, TotalClad MW Micro Planked provides superior fire performance and achieves 1-, 2- and 3-hour fire ratings. Other exterior profiles include: Striated and Heavy Embossed.

Durable, Energy-Efficient Solutions

TotalClad insulated metal wall panels are as durable as they are cost-efficient. Concealed clips and fasteners at the panel’s joint offer a clean and uninterrupted aesthetic. These lightweight insulated metal wall panels may be installed vertically for long and sleek sight lines with a wide range of lengths, thicknesses, and exterior profiles and finishes.

Features and Benefits

  • All-weather, easy installation and lightweight nature reduce labor and framing costs
  • Excellent for both interior and exterior applications
  • Concealed clips and fasteners provide a clean, uninterrupted appearance
  • Double tongue-and-groove joinery & thermal break provide superior weather resistance & eliminate thermal shorts


See More


Specifications

ThicknessThermal ValuesPanel WidthPanel Length
  • 4" [101.6mm]

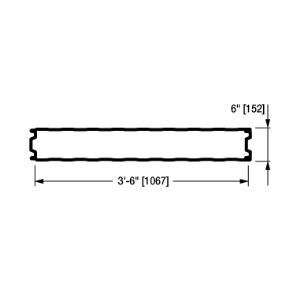

  • 6" [152.4mm]

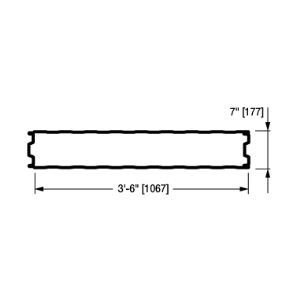

  • 7" [177.8mm]
  • 8" [203.2mm]
  • 4" = R-15 (U=0.065)
  • 6" = R-19 (U=0.053)
  • 7" = R-26 (U=0.038)
  • 8" = R-30 (U=0.034)
  • 42" [1.07m]
  • 8' to 40' [2.44m - 12.19m] limited by thickness
