Overview


Concealed Fastener Panels - CS-210 - Vertical Profile

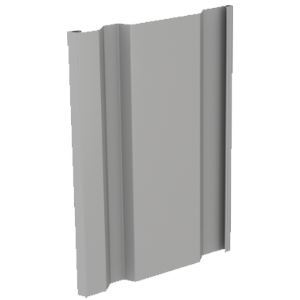

Concept CC-210 interchangeable single-skin metal panels have 12” [305mm] wide coverage, 7/8” [22mm] deep profiled panels featuring two asymmetrical ribs.

The Cutting Edge in Aesthetics and Performance

Concept Series single-skin wall panels feature concealed fasteners and a common-lock joint that allows the panels to be integrated with each other and the CASCADE metal panel system.

Features and Benefits

  • Featuring concealed fasteners and a common-lock joint that allows the panels to be integrated with each other and the Cascade metal panel system.
  • Installed vertically or horizontally with an unbroken appearance adding to the product’s aesthetic versatility
  • Wall panels may be installed in a variety of rainscreen applications to form a complete wall system
  • Designed to be used with CSC-1,2, or 3 attachment clips


See More


Specifications

Panel LengthPanel WidthPanel DepthSurface FinishSubstrates
Standard:
  • 5' [1.52m] - 30' [9.14m]
  • 12” [35mm]
  • 7/8” [22mm]
  • Standard: Smooth
  • Optional: Embossed
Standard:
  • 22 - 18 gauge G-90 Galvanized Steel
Optional:
  • Galvalume steel
  • Aluminum
  • Stainless Steel
  • Zinc
