Overview


Tubular Motor

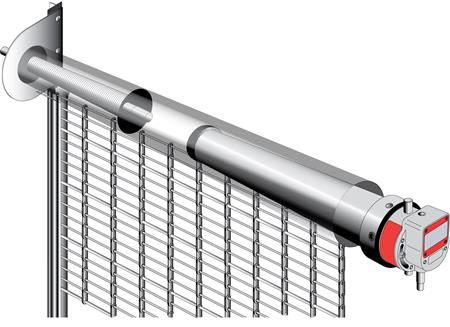

Tubular Motor Operators can be directly mounted into the barrel of roll-up doors, eliminating external clearance needed for customary commercial electric operators. Tubular motors enhance the appearance of electric motor operated doors by concealing the motors. Possible usage includes, but not limited to, Counters, windows, storefronts, hallways, and any application with limited head-clearance

LIGHT DUTY
TYPE 5DMI OVERRIDE

  • Diameter 47mm (2.0 in.)
  • Progressive limit setting
  • 6 feet of motor cable
  • UL Recognized
  • CSA Approved
  • IP 44 Rated
  • Approx. shipping weight = 9 lb

STANDARD MEDIUM DUTY
TYPE 6DMI OVERRIDE

  • Diameter 60mm (2.5 in.)
  • Progressive limit setting
  • 6 feet of motor cable
  • UL Recognized
  • CSA Approved
  • IP 44 Rated
  • Approx. shipping weight = 14 lb

HEAVY DUTY
TYPE T8S-DMI OVERRIDE

  • Diameter 94mm (3.7 in.)
  • Progressive limit setting
  • 3 feet of motor cable
  • UL Recognized
  • CSA Approved
  • IP 44 Rated
  • Approx. shipping weight = 55 lb

Tubular motor operators distributed by SIMU.


See More


Specifications

DETAIL VIEW
LIGHT DUTY (TYPE 5DMI OVERRIDE)
STANDARD MEDIUM DUTY (TYPE 6DMI OVERRIDE)
HEAVY DUTY (TYPE T8S DMI OVERRIDE)
