Beacon Industries, Inc. -Mobile Scissor Lift - Beacon® BCART-DC Series

DOWNLOADS

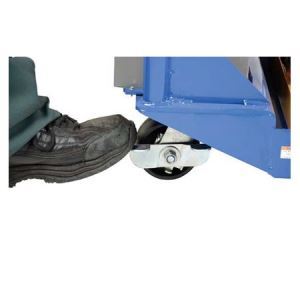

The high-quality Mobile Scissor Lift provides excellent ergonomic support for workers when they are performing loading and unloading, palletizing, or lifting jobs. These Elevating Cart models roll with 2 rigid and 2 swivel 4" x 2" phenolic casters with brakes.


Category: carts | electric lifts | materials handling carts...

MasterFormat: Lifts | Elevating Platforms | Piece Material Handling Equipment...


View Product Details From Manufacturer


Beacon Industries, Inc.
12300 Old Tesson Road
St. Louis, MO 63128
Tel: (800) 454-7159
Fax: (314) 487-0100

sales@beacontechnology.com

https://www.beacontechnology.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview


Mobile Scissor Lift - Beacon® BCART-DC Series

The high-quality Mobile Scissor Lift provides excellent ergonomic support for workers when they are performing loading and unloading, palletizing, or lifting jobs. These Elevating Cart models roll with 2 rigid and 2 swivel 4" x 2" phenolic casters with brakes. This series is available in both 2-speed foot pump and DC-powered motor models. The DC unit includes a key-operated on/off switch, a hand control on coil cord, push buttons on the power unit to raise and lower the lift, a built-in battery charger (115V AC), and an OSHA-compliant, perimeter pinch-point guard.

Product Details

  • Size: Models have platform sizes of 24" wide x 36" long and 24" wide x 48" long.
  • Service Range: This series features service ranges of 11-1/4" to 32" and 9-1/4" to 42-1/2".
  • Power: On the DC-powered units, the electric motor is rated at 1,600 watts, 133 amps and 2.14 Hp. Its 12V battery is included along with a built-in 115V AC battery charger.
  • Color: Models feature a Beacon Yellow powder coat finish. Custom finishes are available; contact Beacon for details.
  • Weight: This unit is available in various weights ranging from 380 to 500 lbs.
  • Capacity: These models have capacities of 1,000 or 1,500 lbs.
  • Standard: The Mobile Scissor Lift push handle is removable.
  • Surcharge: Tariffs or surcharges may apply to current published pricing.


See More


Specifications

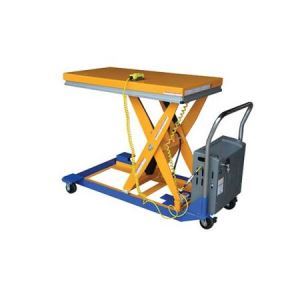

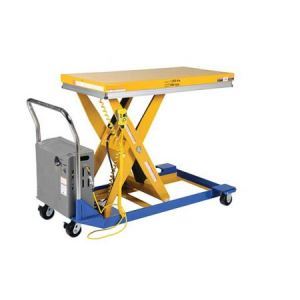

Mobile Scissor Lift - DC Powered - BCART-DC Series
Model No.Platform Size (W x L)Service RangeCapacity (LBS)Lift Speed
1) BCART-23-10-DC24"x36"11¼" to 32"1,00014 Sec.
2) BCART-23-15-DC24"x36"11¼" to 32"1,50016 Sec.
3) BCART-24-10-DC24"x48"9¼" to 42½"1,00015 Sec.
4) BCART-24-15-DC24"x48"9¼" to 42½"1,50017 Sec.
5) BCART-32-10-DC32"x48"10½" to 42½"1,00015 Sec.
6) BCART-32-15-DC32"x48"10½" to 42½"1,50017 Sec.
7) BCART-40-10-DC40"x48"10½" to 42½"1,00015 Sec.
8) BCART-40-15-DC40"x48"10½" to 42½"1,50017 Sec.

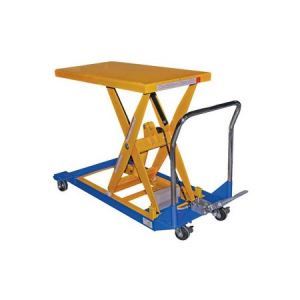

Mobile Scissor Lift - Manual Foot Pump - BCART-M Series
Model No.Platform Size (W x L)Service RangeCapacity (LBS)# of Pumps
9) BCART-23-10-M24"x36"11¼" to 32"1,00054 Low-27 High
10) BCART-23-15-M24"x 36"11¼" to 32"1,50054 Low-27 High
11) BCART-24-10-M24"x48"9¼" to 42½"1,00063 Low-31 High
12) BCART-24-15-M24"x48"9¼" to 42½"1,50063 Low-31 High
13) BCART-32-10-M32"x48"10½" to 42½"1,00063 Low-31 High
14) BCART-32-15-M32"x48"10½" to 42½"1,50063 Low-31 High
15) BCART-40-10-M40"x48"10½" to 42½"1,00063 Low-31 High
16) BCART-40-15-M40"x48"10½" to 42½"1,50063 Low-31 High
